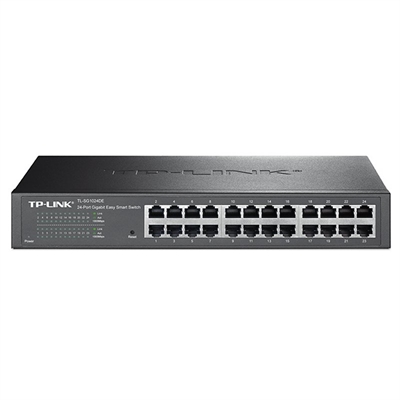

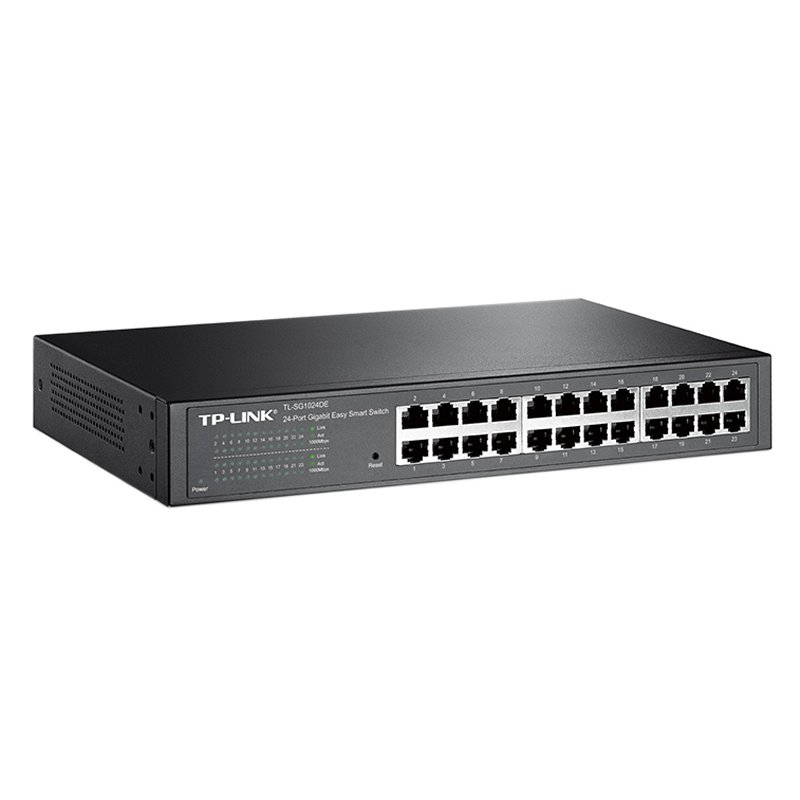

Name: TP-LINK Switch TL-SG1024DE 24XGB
Brand: TP-LINK
SKU: IRS01587
Availability: InStock

The TP-LINK Switch TL-SG1024DE 24XGB is the ideal solution for companies that require superior performance in their networks. This 24-port Gigabit Ethernet switch offers exceptional data transmission speed, allowing efficient traffic management and a fluid connection between devices.

Among its most notable features are:

24 Gigabit Ethernet Ports: Allow the connection of multiple devices without compromising speed.
Low consumption design: Optimizes energy use, which translates into lower costs. operational.
Advanced management features: Includes VLAN, QoS and support for IGMP snooping, ideal for business networks.
Easy installation and configuration: Plug and play for quick and easy startup.

This switch is perfect for work environments that demand high availability and reliability in their communications. Whether for small offices or large companies, the TP-LINK TL-SG1024DE ensures optimal performance, facilitating network expansion and management.

Specifications

24-Port Gigabit Easy Smart Switch

– 24 10/100/1000Mbps RJ45 ports
– Provides network monitoring, traffic prioritization, and VLAN
– Energy-efficient technology reduces power consumption by up to 40%
– Easy network deployment with plug-and-play
– Centralized management of all Easy Smart switches with the Easy Smart Configuration Utility

Brand	TP-LINK
Model	TL-SG1024DE
Hardware Features	Standards and Protocols – IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface – 24 RJ45 ports at 10/100/1000 Mbps with auto-negotiation (automatic MDI/MDIX) Network Media – 10Base-T: UTP cables categories 3, 4, 5 (maximum 100 meters) – EIA/TIA-568 100Ω STP (maximum 100 m) – 100Base-Tx: UTP cables categories 5, 5e (maximum 100 meters) – EIA/TIA-568 100Ω STP (maximum 100 m) – 1000Base-T: UTP cables category 5, 5e (maximum 100 meters) Number of Fans – No fans Power Supply – 100-240VAC, 50/60Hz Power Consumption – Maximum: 14.86W (220V/50Hz) Dimensions – 294 x 18044 mm Mounting* – Rack mount Maximum Power Consumption – 33.52W (220V/50Hz) Max Heat Dissipation – 114.37 BTU/h
Performance	Switching Capacity – 48Gbps Packet Forwarding Rate – 35.7Mpps MAC Address Table – 8K Packet Buffer Memory – 512KB Jumbo Frame – 9KB
Software Features	Quality of Service – Port/802.1p-based Priority Support – Supports up to 4 priority queues – Speed Limiting – Storm Control L2 Features – IGMP Snooping V1/V2/V3 – Static Link Aggregation – Port Mirroring – Cable Diagnostics – Loop Prevention VLAN – Supports up to 128 simultaneous VLANs (from 4K VLAN IDs) – MTU/Port/Tag VLAN Transmission Method – Store-And-Forward
Others	Certifications – FCC, CE, RoHS Package Contents – Desktop/rack switch with 24 Gigabit ports – Power cable – Installation guide – Resource CD – Rack mounting kit – Rubber feet System Requirements – Microsoft® Windows® for the utility Environmental Factors – Operating Temperature: 0°C~40°C – Storage Temperature: -40°C~70°C – Operating Humidity: 10%~90% non-condensing; – Storage Humidity: 5%~90% non-condensing
Review Date	05-06-2019 by AVN
