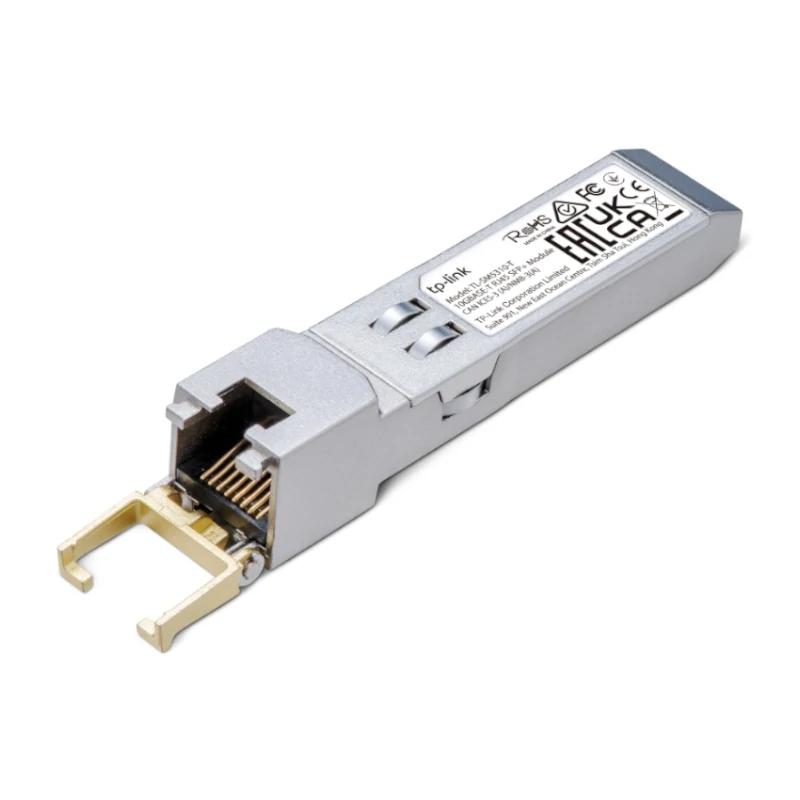

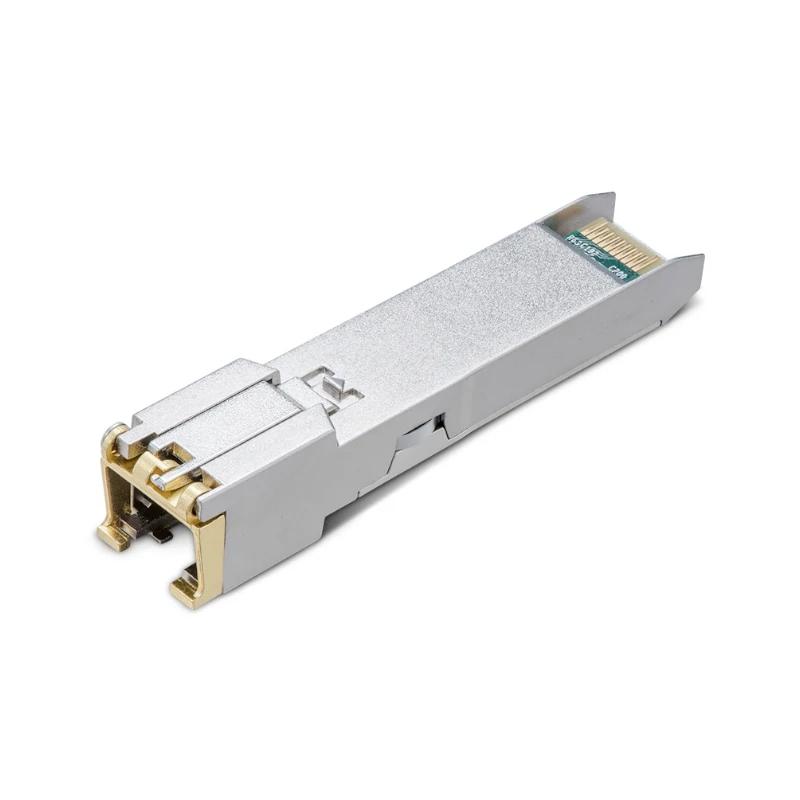

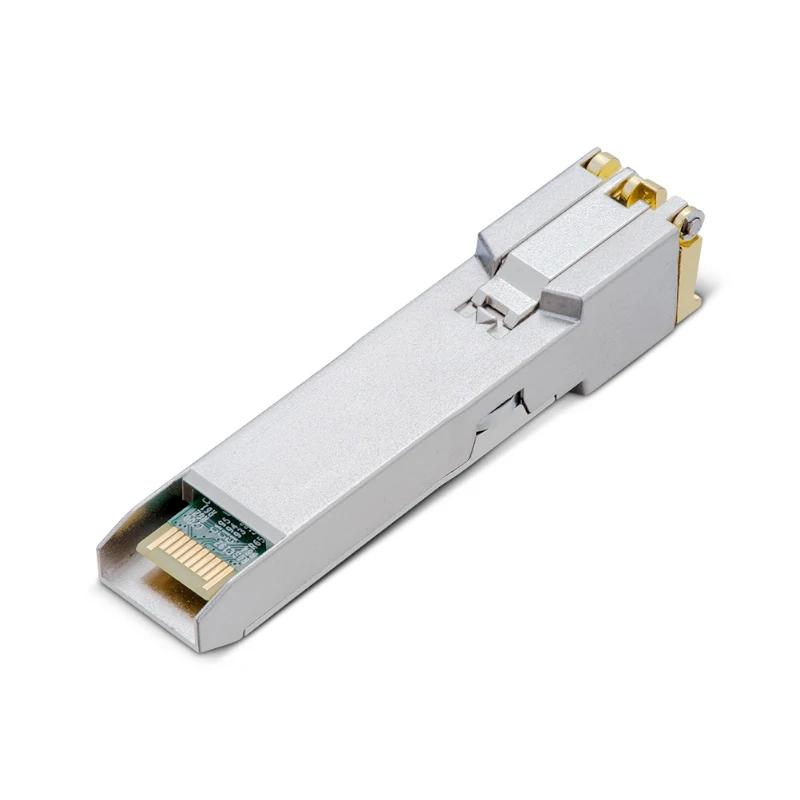

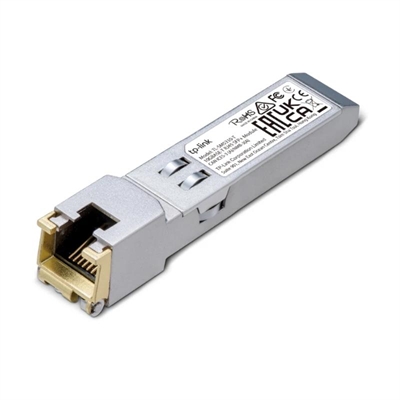

TP-Link SM5310-T 10GBase-T RJ45 SFP+ Module

Discover the TP-Link SM5310-T , a 10GBase-T RJ45 SFP+ module designed to offer high-speed and reliability network connections. Ideal for cable networks , this module provides an efficient and versatile solution for your connectivity needs. With a simple installation and several devices, the TP-Link SM5310-T is the perfect option to improve your network infrastructure.

Technical Specifications

• Brand TP-Link
• Model SM5310-T
• Hardware Features – Hot-swappable
• Wireless Features – Standards and Protocols: IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an
• Power Supply: 3.3V
• Maximum Cable Length:
• 100BASE-TX: UTP cat.5 or higher (max. 100 m)
• 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or higher (max. 100 m)
• 10GBASE-T: UTP cat.6a or higher (max. 30 m)
• Data Rate: 10.3 Gbps
• Port Type: 1 x 10G RJ45 port
• Safety and Emissions: FCC, CE, RoHS
• Environmental Factors:
• Operating Temperature: 0–70 ºC
• Storage Temperature: -40–85 ºC
• Management – Omada App
• Centralized Management
• Omada Hardware Controller (OC300, OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
• Cloud Access: Requires the use of OC300, OC200, Omada cloud-based controller or Omada software controller
• Email Alerts
• ON / OFF Control LED
• MAC Access Management Control
• SNMP: v1, v2c, v3
• Local System Log / Remote System Log Access: System Log
• SSH
• Web-based Management
• Zero-touch Provisioning: Requires the use of Omada cloud-based controller
• Other Features Dimensions
• 67.4 x 13.75 x 13.8 mm
• Contents
• 10G BASE-T RJ45 SFP+ Module TL-SM5310-T
• Installation Guide
• Review Date 09-08-2024 by RTY
