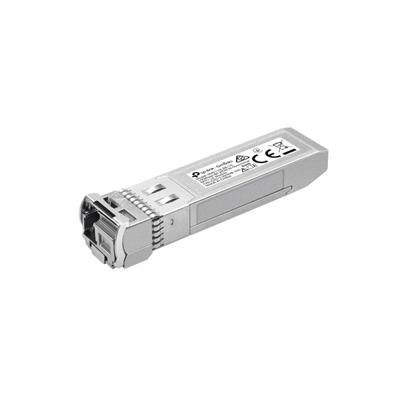

TP-Link SM5110LSB-10 10Gb SFP+ Module SM LC 10km

Discover the TP-Link SM5110LSB-10 , a high speed SFP+ Module designed to offer a stable and fast network connection. With a 10GB capacity and a transmission distance of up to 10 km, it is ideal for high demand networks. efficient

Technical Specifications

• Brand TP-Link
• Model SM5110LSB-10
• Features – Standards and protocols:
• IEEE 802.3ae
• SFF 8431, SFF 8432, SFF-8472
• Wavelength
• TX: 1270 nm
• Reception: 1330 nm
• Power Supply: 3.3V
• Fiber Type: 9μm/125μm Single-mode
• Maximum Cable Length: 10km
• Data Rate: 10.3125 Gbps
• Connector: LC/UPC
• Regulatory Compliance: CE, FCC, RoHS
• Environmental Factors
• Operating Temperature: 0°C to 70°C (32–158 °F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Hardware Features
• DDM
• Hot-swappable
• Dimensions
• 57 x 14 x 12.0 mm
• Contents
• SM5110LSB-10
• Installation Guide
• Review Date 07-11-2024 by RTY
