TP-Link PoE170S PoE++ Injector h/60W

The TP-Link PoE170S PoE++ Injector 60W is the ideal solution for efficiently and securely powering PoE devices. With a power of up to 60W, this injector is perfect for security cameras, access points, and other network devices that require power through Ethernet.

• High power: Supports up to 60W for PoE++ devices.
• Easy installation: Plug and play, with no additional configuration required.
• Compatibility: Works with PoE 802.3af/at/bt devices.
• Compact design: Ideal for small spaces and easy to integrate into any environment.

Technical Specifications

• Brand TP-Link
• Model TL-POE170S

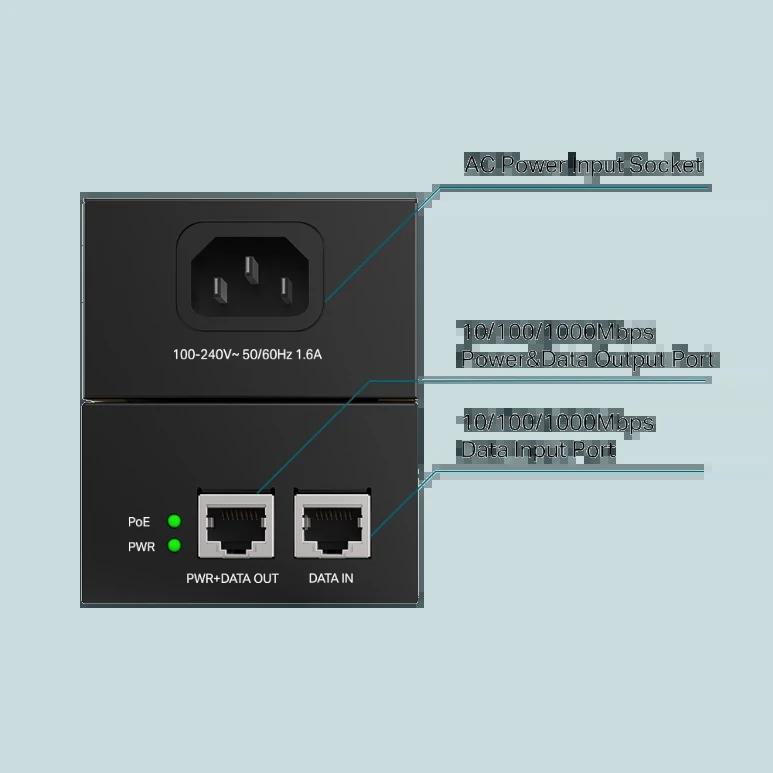

• Interface – 1 x 10/100/1000 Mbps RJ45 data input port
• 1 x RJ45 power + data output port at 10/100/1000 Mb
• 1 x AC socket
• Other features – Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
• EIA / TIA-568 100Ω STP (maximum 100 m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
• EIA / TIA-568 100Ω STP (maximum 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)
• Power Consumption
• Input: 100-240 V, 50/60 Hz, 1.6 A
• Output: automatically determines the necessary power requirements (max. 60 W)
• Basic Functions:
• The automatic detection algorithm allows providing power with 802.3af/at/bt * PD
• Automatically determines the necessary power requirements
• Supports desktop installation and wall mounting
• Plug and play – Certification: FCC, CE, RoHS
• Environment
• Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating humidity: 10% to 90% relative humidity non-condensing
• Storage humidity: 5% to 90% relative humidity non-condensing
• Material: Metal casing
• Dimensions
• 155 x 70 x 42 mm
• Contents
• PoE++ Injector TL-POE170S
• Installation guide
• Power cable
• RJ45 cable
