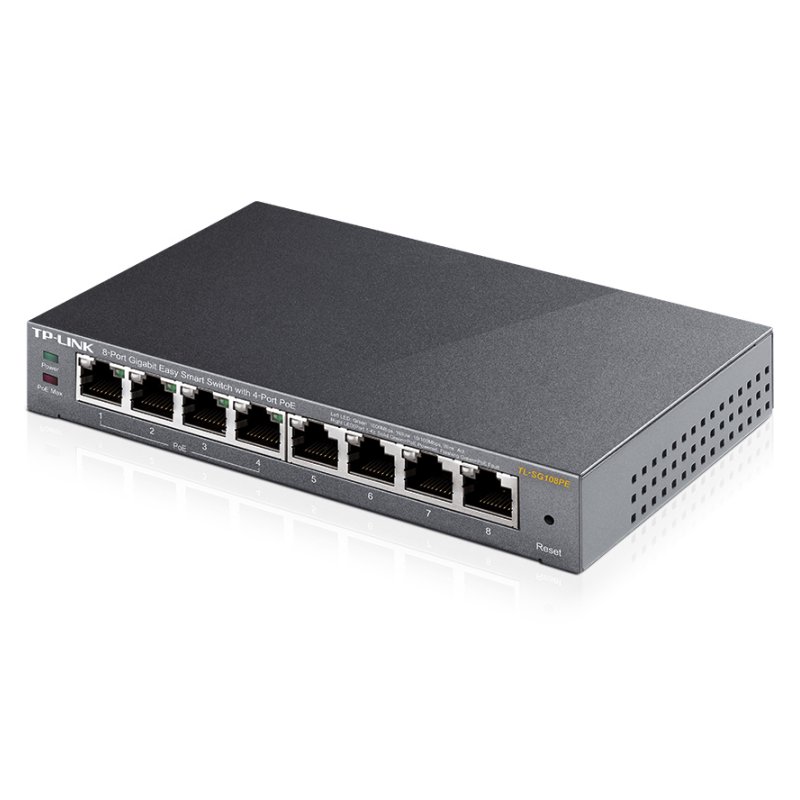

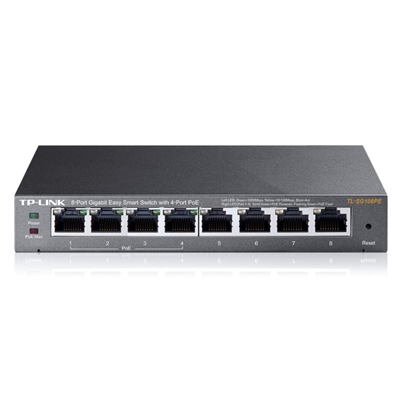

Name: TP-LINK Switch TL-SG108PE 8XGB 4XGB POE
Brand: TP-LINK
SKU: IRS01574
Availability: InStock

The TP-LINK Switch TL-SG108PE is an ideal solution for those looking for a high-performance network switch. With 8 Gigabit Ethernet ports, this device allows multiple devices to connect to the network quickly and efficiently, ensuring a seamless user experience. In addition, it has 4 PoE (Power over Ethernet) ports that allow you to power devices such as IP cameras and wireless access points directly through the network cable.

Among its main features are:

Superior performance: With a speed of up to 1000 Mbps per port, this switch ensures fluid and efficient data transmission.
PoE functionality: The 4 PoE ports allow simplify the installation of devices, eliminating the need for additional power supplies.
Compact design: Its small size makes it easy to install in limited spaces, ideal for offices or home environments.
Energy management: Includes energy management functions to optimize consumption and reduce operating costs.

The TL-SG108PE is perfect for small and medium-sized businesses looking for a Reliable and quality network solution. Its easy installation and configuration make it accessible to any user, while its robustness ensures long-lasting performance over time.

Specifications

Brand	TP-Link
Model	TL-SG108PE
Ports	– Interface: 8 ports 10/100/1000Mbps RJ45 AUTO Negotiation/AUTO MDI/MDIX – Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or higher cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Specifications	Hardware Features – Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p – Number of Fans: Fanless – Power Supply: External Power Adapter (Output: 48VDC / 1.25A) – Power Consumption: Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) – PoE Ports (RJ45): Standard: Complies with 802.3 af PoE Ports: Port 1 – Port 4 Maximum Power per PoE: 55W Performance – Switching Capacity: 16Gbps – Packet Forwarding Rate: 11.9Mpps – MAC Address Table: 4K – Packet Buffer Memory: 1.5Mb – Jumbo Frame: 15KB Software Features – Quality of Service: Supports port-based/802.1p/dscp priority Supports 4 priority queues Traffic limiter Storm control – L2 Features: IGMP Snooping V1/V2/V3 Port Aggregation Port Mirroring Cable Diagnostics Loop Prevention – VLAN: Supports up to 32 VLANs simultaneously (from 4,000 VLANs) VLAN MTU/Port/Tag – Management: Web-based GUI Easy Smart Configuration Utility – Transmission Method: Store-And-Forward Others – Certifications: FCC, CE, RoHS – Package Contents: TL-SG108E Power Cable Installation Guide Resource CD Rubber Feet – System Requirements: Microsoft® Windows® to run the Utility – Environmental Factors: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~95% non-condensing
Features	– 8 ports 10/100/1000 Mbps providing instant large file transfers – Equipped with 4 PoE 802.3af ports with up to 15.4W for each port – Supports PoE power of up to 55 W for all PoE ports – IEEE 802.3x flow control provides reliable data transfers – 15K Jumbo Frames enhance performance for large data transfers – Effective network monitoring through port mirroring, loop prevention, and cable diagnostics – Port / 802.1p / DSCP QoS allows latency-sensitive smooth traffic – VLAN features enhance network security through traffic segmentation – IGMP Snooping optimizes multicast applications – Web-based user interface and Easy Smart configuration utility simplify setup
Review Date	08-06-2017 by MSB
