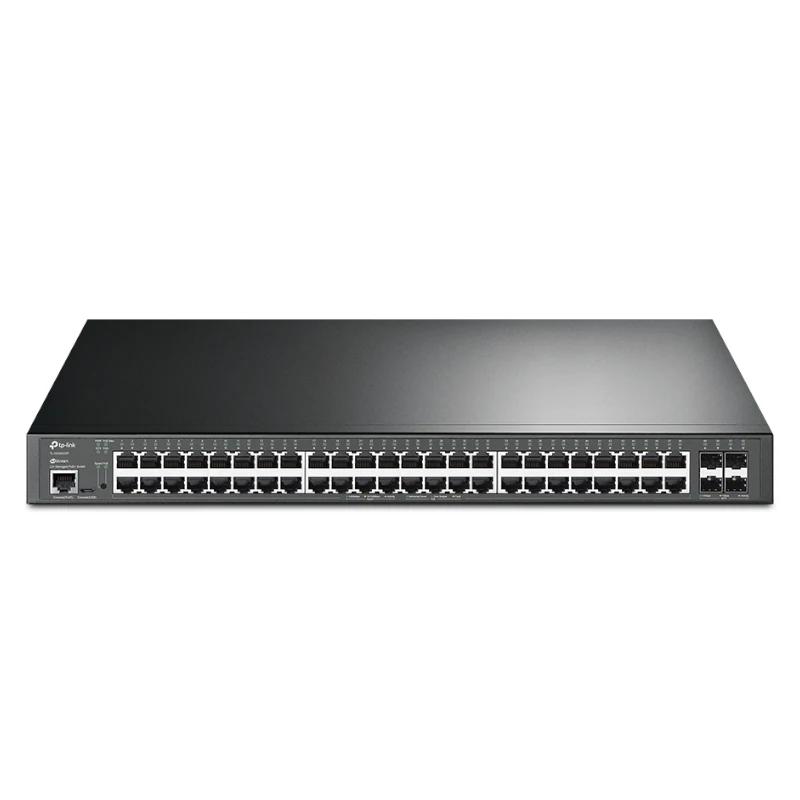

Name: TP-Link Switch sg3452xp l2+ 48xgbe poe+ 4xsfp+
Brand: TP-LINK
SKU: IRS01485
Availability: InStock

Discover the TP-Link SG3452XP L2+ Switch, an advanced solution ideal for business networks that require exceptional performance and efficient management. With 48 Gigabit Ethernet (GbE) PoE+ ports and 4 SFP+ ports, this switch provides robust and flexible connectivity for critical network devices. Key features include: Powered by PoE+: Capable of supplying power to devices such as IP cameras and access points, simplifying installation and reducing costs.

High switching capacity: Delivers superior performance with a switching capacity of up to 104 Gbps, enabling seamless data transfer.

Easy management: Intuitive interface allows for easy device configuration and monitoring.

Quality of Service (QoS): Prioritizes critical traffic, ensuring optimal performance for data-sensitive applications. latency.

Recommended for small and medium-sized businesses, the TP-Link SG3452XP is perfect for environments that require a reliable, high-performance network. Improve the efficiency of your network and optimize your resources with this next-generation switch.

Specifications

Brand	TP-Link
Model	TL-SG3452XP
Interface	– 48 × 10/100/1000 Mbps RJ45 PoE + Ports – 4 × 10G SFP + slots – 1 RJ45 console port – 1 micro USB console port
Software	Quality of Service – 8 priority queues: 802.1p CoS/DSCP priority – Queue scheduling SP (strict priority) WRR (Weighted Round Robin) SP+WRR: Bandwidth Control – Port/flow-based classification limitation Smoother performance Action for flows – Mirroring (to compatible interface) – Redirect (to compatible interface) – Rate limiting – QoS monitoring L3 Features – 16 IPv4/IPv6 interfaces – Static routing: 48 static routes – Static ARP: 128 static entries – Proxy ARP – Gratuitous ARP – DHCP server – DHCP relay DHCP interface relay VLAN DHCP relay – L2 DHCP relay L2 and L2+ Features – Link aggregation static link aggregation 802.3ad LACP Up to 8 aggregation groups, containing 8 ports per group – Spanning Tree Protocol 802.1d STP RSTP 802.1w MSTP 802.1s STP Security: TC Protection, BPDU Filter, Root Protection – Loopback detection Port-based VLAN-based – Flow control 802.3x flow control HOL blocking prevention – Duplication Port duplication CPU duplication Face to face Many to one Tx/Rx/Both L2 Multicast – IGMP Snooping IGMP v1/v2/v3 Snooping Fast leave IGMP Snooping Querier IGMP Authentication – IGMP Authentication – MLD Snooping MLD v1/v2 Snooping Fast leave MLD Snooping Querier Static group configuration Limited IP multicast – RMV – Multicast filtering: 256 profiles and 16 entries per profile Advanced Features – Automatic device detection – Batch configuration – Batch firmware upgrade – Intelligent network monitoring – Abnormal event alerts – Unified configuration – Reboot schedule VLAN – VLAN Group: Max 4K VLAN groups – 802.1Q tagged VLAN – MAC VLAN: 10 entries – VLAN protocol: 16 protocol template, 16 VLAN protocol – Private VLAN – GVRP – VPN VLAN (QinQ) Port-based QinQ Selective QinQ – Voice VLAN Access Control List – Time-based ACL – MAC ACL Source MAC Destination MAC VLAN ID User priority Ether type – IP ACL: Source IP Destination IP Fragment IP protocol TCP flag TCP/UDP port DSCP/IP service conditions User priority – Combined ACL – ACL packet content – IPv6 ACL – Policy: Mirror Redirect Rate limit QoS monitoring – ACL applies to port/VLAN Security – IP-MAC port binding: 512 Entries DHCP Snooping ARP Inspection IPv4 source protection: 100 entries – IPv6-MAC port binding: 512 Entries DHCPv6 Snooping ND Detection IPv6 source protection: 100 entries – DoS Defense – Static/Dynamic port security: Up to 64 MAC addresses per port – Storm control for broadcast/multicast/unicast: kbps/rate control mode – 802.1X: Port-based authentication MAC-based authentication VLAN assignment MAB Guest VLAN Supports Radius authentication and accountability – AAA (including TACACS+) – Port isolation – Secure web management via HTTPS with SSLv3/TLS 1.2 – Secure command line interface (CLI) management with SSHv1/SSHv2 – IP/Port/MAC based access control IPv6 – Dual IPv4/IPv6 – Multicast Listener Discovery (MLD) Snooping – IPv6 ACL – IPv6 Interface – Static IPv6 routing – IPv6 Neighbor Discovery (ND) – Maximum Transmission Unit (MTU) discovery – Internet Control Message Protocol (ICMP) version 6 – TCPv6/UDPv6 – IPv6 Applications: DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH: IPv6 SSL Http/Https IPv6 TFTP MIBs – MIB II (RFC1213) – Interface MIB (RFC2233) – Ethernet Interface MIB (RFC1643) – Bridge MIB (RFC1493) – Bridge P/Q MIB (RFC2674) – RMON MIB (RFC2819) – RMON2 MIB (RFC2021) – Radius Accounting Client MIB (RFC2620) – Radius Authentication Client MIB (RFC2618) – Remote Ping, Traceroute MIB (RFC2925) – Supports TP-Link private MIB
Other features	– Number of Fans: 3 – PoE Ports (RJ45): Standard: compatible with 802.3bt/at/af PoE+ Ports: 48 ports, up to 30 W per port Power budget: 500 W – Mounting: Rack mountable – Maximum heat dissipation: 167.85 BTU/h (110 V/60 Hz) (without PD connected) 2169.2 BTU/h (110 V/60 Hz) (with 500 W PD connected) Performance – Switching Capacity: 176 Gbps – Packet Forwarding Rate: 130.9 Mpps – MAC Address Table: 16 K – Packet Buffer Memory: 12 Mbit – Jumbo Frame: 9 KB Certifications – CE – FCC – RoHS Power Supply – Power Supply: 100-240 V AC~50/60 Hz – Maximum Power Consumption: 49.19 W (110 V/60 Hz) (without PD device connected) 635.7 W (110 V/60 Hz) (with 500 W PD device connected) Environmental Factors – Operating Temperature: 0 ° C ~ 50 ° C – Storage Temperature: -40 ° C ~ 70 ° C – Operating Humidity: 10% ~ 90%, HR non-condensing – Storage Humidity: 5% ~ 90% HR non-condensing Dimensions – 440 × 330 × 44 mm
