Name: TP-Link Switch sg2218p 16xgbe 2xsfp 150w
Brand: TP-LINK
SKU: IRS01469
Availability: OutOfStock

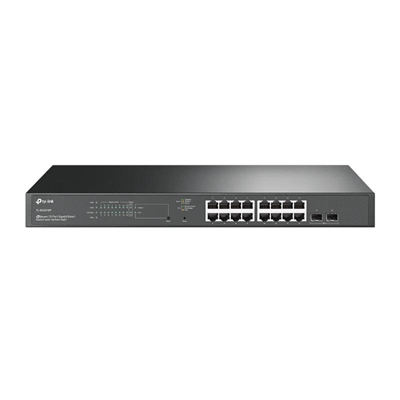

The TP-Link SG2218P Switch is an advanced networking solution designed to meet the connectivity needs in enterprise and high-demand environments. With 16 10/100/1000 Mbps ports and 2 SFP ports, this switch offers a switching capacity of 150W, ensuring optimal and stable performance for all your critical applications.

Its notable features include:

High switching capacity: With 16 Gigabit Ethernet ports, it allows the connection of multiple devices without loss of data. speed.
PoE support: Provides power to compatible devices such as IP cameras and access points, simplifying installation and reducing cable clutter.
Smart management: Offers advanced management features that allow you to efficiently monitor and control network traffic.
Robust and reliable design: Ideal for demanding work environments, ensuring durability and performance.

Recommended for small and medium-sized businesses, the TP-Link SG2218P switch is the perfect choice for those looking to improve their network infrastructure with high-quality, high-performance equipment.

Specifications

JetStream Smart Gigabit Switch with 18 Ports and 16 PoE+ Ports

PoE budget of 150 W: 16 PoE+ ports compatible with 802.3at/af with a total power supply of 150 W*.

Full Gigabit Ports: 16 Gigabit PoE+ ports and 2 Gigabit SFP slots provide high-speed connections.

Integrated with Omada SDN: Zero-Touch Provisioning (ZTP)**, centralized cloud management, and intelligent monitoring.

Centralized management: cloud access and Omada app for ultra-convenient and easy management.

Static routing: helps route internal traffic for more efficient use of network resources.

Robust security strategies: IP-MAC port binding, ACL, port security, DoS defense, storm control, DHCP snooping, 802.1X, Radius authentication, and more.

Optimize voice and video applications: L2/L3/L4 QoS and IGMP snooping.

IPv6: IPv6 support with dual-stack IPv4/IPv6, MLD snooping, IPv6 neighbor detection.

Brand	TP-Link
Model	SG2218P
Hardware Features	– Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x – Interface: 16 RJ45 ports of 10/100/1000 Mbps (auto-negotiation/auto MDI/MDIX) – 2 Gigabit SFP slots Network Media – 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) – 100BASE-TX/1000Base-T: UTP category 5, 5e or higher cable (maximum 100 m) – 1000BASE-X: MMF, SMF – Number of fans: 1 – Power supply: 100-240V AC, 50/60Hz PoE Ports (RJ45) – Standard: compatible with 802.3at/af – PoE+ Ports: 16 ports – PoE power budget: 150 W*
Software Features	Quality of Service – 802.1p CoS/DSCP priority – 8 priority queues – Priority scheduling mode: SP (strict priority), WRR (Weighted Round Robin) – Queue weight configuration – Bandwidth Control: Port/flow-based rate limiting – Smoother performance – Storm control: Multiple control modes (kbps/ratio), Broadcast/multicast/unknown-unicast control L2 and L2+ Features – 16 IP interfaces: Supports IPv4/IPv6 interface – Static routing: 32 static IPv4/IPv6 routes – DHCP server – DHCP relay: DHCP interface relay VLAN DHCP relay – L2 DHCP relay – Static ARP – Proxy ARP – Gratuitous ARP – Link aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group – Spanning tree protocol: 802.1D STP, RSTP 802.1w, MSTP 802.1s, STP security: TC protection, BPDU Filter/Protection, Root protection – Loop detection – Flow control – 802.3x flow control – Mirroring: Port mirroring, CPU mirroring, one-to-one, many-to-one, flow-based, ingress/egress/both – Device Link Detection Protocol (DLDP) – 802.1ab LLDP/ LLDP-MED Access Control List (ACL) – Supports up to 230 entries – Time interval: Time slice, Week time range, Absolute time range Holiday – Time-based ACL – MAC ACL: Source MAC Destination MAC VLAN ID User priority Ether type – IP ACL: Source IP Destination IP IP protocol TCP flag Source TCP/UDP port Destination TCP/UDP port DSCP/IP service conditions – IPv6 ACL – Combined ACL – Rule operation: Allow/Deny – Policy action: Mirror Rate limit Redirect QoS monitoring – ACL rule binding: Port binding VLAN binding – Actions for flows: Mirror (to compatible interface) Redirect (to compatible interface) Rate limit QoS monitoring Security – AAA – 802.1X Port-based authentication MAC-based authentication (Host) Authentication method includes PAP/EAP MD5 MAB Guest VLAN Supports Radius authentication and accountability – IP/IPv6 MAC binding 512 binding entries DHCP snooping DHCPv6 snooping ARP inspection ND detection – IP source protection 253 Entries Source IP+Source MAC – IPv6 source protection 183 Entries Source IPv6 address+Source MAC – DoS defense – Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port – Broadcast/multicast/unicast storm control: kbps/rate control mode – Port isolation – Secure web management via HTTPS with SSLv3/TLS 1.2 – Secure command line interface (CLI) management with SSHv1/SSHv2 – IP/Port/MAC-based access control IPv6 – IPv6 static routing and ACL – Dual IPv4/IPv6 – IPv6 interface – Multicast Listener Discovery (MLD) Snooping – IPv6 Neighbor Discovery (ND) – Maximum Transmission Unit (MTU) discovery – Internet Control Message Protocol (ICMP) version 6 – TCPv6/UDPv6 – IPv6 Applications: DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP Management – Web-based GUI – Easy smart configuration utility – Transmission Method: Store and forward Advanced Features – Automatic device detection – Batch configuration – Batch firmware upgrade – Intelligent network monitoring – Abnormal event alerts – Unified configuration – Reboot schedule MIBs – MIB II (RFC1213) – Bridge MIB (RFC1493) – Bridge P/Q MIB (RFC2674) – Radius Accounting Client MIB (RFC2620) – Radius Authentication Client MIB (RFC2618) – Remote Ping, Traceroute MIB (RFC2925) – Supports TP-Link private MIBs – RMON MIB (RFC1757, rmon 1,2,3,9)
Performance	– Switching Capacity: 36 Gbps – Packet Forwarding Rate: 26.78 Mpps – MAC Address Table: 8K – Packet Buffer Memory: 4.1 Mbit – Jumbo Frame: 9 KB
Other Features	– Certifications: CE, FCC, RoHS – Dimensions: 440 × 180 × 44 mm – Mounting: Rack mountable – Maximum Power Consumption: 181.4 W (110 V/60 Hz) (with 150 W PD connected) \|\| 178.3 W (220 V/50 Hz) (with 150 W PD connected) – Max Heat Dissipation: 619.06 BTU/h (110 V/60 Hz) (with 150 W PD connected) \|\| 608.52 BTU/h (220 V/50 Hz) (with 150 W PD connected) – System Requirements: Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Contents – TL-SG2218P – Power cable – Installation guide – Rack mount kit – Rubber feet
