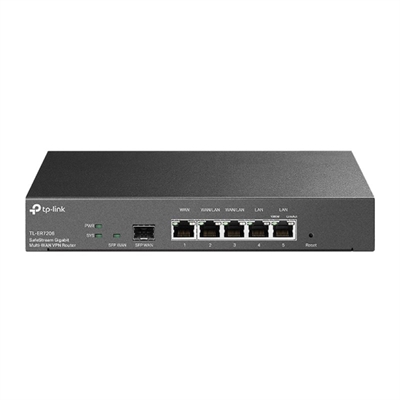

Name: TP-Link ER7206 SafeStream VPN Router Gb Mul-WAN
Brand: TP-LINK
SKU: IRS02177
Availability: OutOfStock

The TP-Link Er7206 Router VPN Safestream GB Mul-Wan is the perfect solution for companies that seek safe and reliable connectivity. Designed to offer exceptional performance, this router has multiple WAN ports that allow the balanced load and redundancy of the Internet connection, ensuring that your network never falls. nnWith speeds of up to 1 Gbps, the ER7206 ensures a fast and fluid data transfer, ideal for work environments where multiple devices are connected simultaneously. Its ability to handle VPN connections of up to 50 simultaneous tunnels provides an additional security level, allowing employees to access the corporate network safely, regardless of their location.nnThe intuitive management interface facilitates the configuration and monitoring of the router, allowing rapid and efficient adjustments. In addition, it has advanced Firewall functions, content filtering and access control, which allows network administrators to maintain a safe and controlled environment.nnThe compact and elegant design of the TP-Link Er7206 not only makes it attractive, but also makes it an easy device to integrate into any office. With support for IPv6, this router is prepared for the future and guarantees that your network is always updated.nnIn summary, the TP-Link Er7206 Router VPN Safestream GB Mul-Wan is the ideal choice for companies that require a robust, safe and high performance solution to manage its internet connectivity and protect their data.

Specifications

Brand	TP-Link
Model	TL-ER7206
Features	Hardware – Standards and Protocols IEEE 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP – Interface 1 fixed WAN Gigabit SFP port 1 fixed WAN Gigabit RJ45 port 2 fixed LAN Gigabit RJ45 ports 2 interchangeable Gigabit RJ45 WAN / LAN ports – Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max. 100 m) EIA / TIA-568 100Ω STP (Max. 100 m) 100BASE-TX: UTP category 5, 5e cable (max. 100 m) EIA / TIA-568 100Ω STP (Max. 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (max. 100 m) – Buttons: Reset Button – Power Supply: 100–240 V~50/60 Hz – Flash: SPI 4MB + NAND 128MB – DRAM: 512MB – LED: PWR, SYS, SFP WAN, Speed, Link/Act – Dimensions: 226 × 131.2 × 35 mm (8.9 × 5.2 × 1.4 in) Performance – Concurrent Sessions: 150,000 – IPsec VPN Performance: 291.6 Mbps Basic Functions – WAN Connection Type Static / Dynamic IP PPPoE PPTP L2TP – DHCP DHCP Server DHCP Address Reservation Multi-IP Interfaces Multi-network DHCP – MAC Cloning: Modify WAN / LAN MAC address – IPTV: IGMP Proxy v2 / v3 – IPv6: Developing – VLAN: VLAN 802.1Q Advanced Functions – ACL: IP / Port / Protocol / Domain Name Filtering – Advanced Routing: Static Routing Policy-based Routing – Bandwidth Control: IP / port-based bandwidth control Guaranteed and limited bandwidth – Load Balancing: Intelligent load balancing Optimized routing for applications Link backup (synchronization, failover) Online detection – NAT: One-to-one NAT Multiple networks NAT Virtual Server Port Triggering NAT-DMZ FTP / H.323 / SIP / IPSec / PPTP ALG, UPnP – Security: SPI Firewall VPN passthrough FTP / H.323 / PPTP / SIP / IPsec ALG DoS Defense, Ping of Death Local Management – Session Limit: IP-based session limit VPN – IPsec VPN 100 IPsec VPN tunnels LAN to LAN, client to LAN Main and aggressive negotiation mode DES, 3DES, AES128, AES192, AES256 encryption algorithm IKEv1 / v2 MD5, SHA1 Authentication Algorithm NAT traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) – PPTP VPN PPTP VPN Server 10 PPTP VPN clients 50 tunnels PPTP with MPPE encryption – L2TP VPN L2TP VPN Server 10 L2TP VPN clients 50 tunnels L2TP over IPSec – OpenVPN OpenVPN Server 10 OpenVPN clients 50 OpenVPN tunnels Security – Attack Defense: TCP / UDP / ICMP flood defense Block TCP scanning (Stealth FIN / Xmas / Null) Block WAN ping – Filtering: WEB group filtering – URL Filtering – Web Security – ARP Inspection: GARP packet sending ARP scanning IP-MAC binding – Access Control: Source/Destination IP Based Access Control Web Authentication – No authentication – Simple password – Local User/ Coupon/ SMS/ Radio Hotspot – External radio cutter – External portal server – Facebook Management – Omada App: Yes – Centralized Management: Cloud-based Omada Controller Omada hardware controller (OC300) Omada hardware controller (OC200) Omada software controller – Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) – Cloud Access: Yes (through OC300, OC200, cloud-based Omada controller or Omada software controller) – Maintenance: Web management interface Remote management Export and import configuration SNMP v1 / v2c / v3 Diagnostics (Ping and Traceroute) NTP synchronization Syslog support – Management Features: Automatic device discovery Intelligent network monitoring Abnormal event alerts Unified configuration Reboot schedule Captive portal configuration ZTP (zero-touch provisioning) Certifications – Certifications: CE, FCC, RoHS System Requirements – Microsoft Windows 98SE, NT, 2000, XP, Vista ™ or Windows 7/8 / 8.1 / 10, MAC OS, NetWare, UNIX or Linux Environmental Features – Operating Temperature: 0°C ~ 40°C – Storage Temperature: -40°C~70°C – Operating Humidity: 10% ~ 90% non-condensing – Storage Humidity: 5% ~ 90% non-condensing Contents – TL-ER7206 – Power cable – Quick Installation Guide
Review Date	27-01-2021 by MPM
