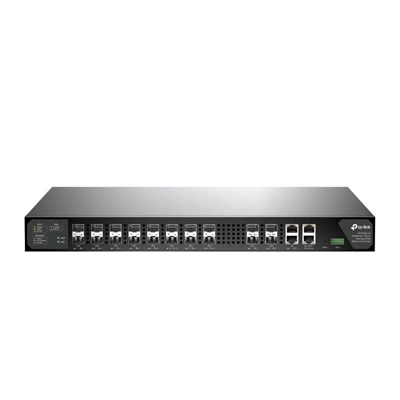

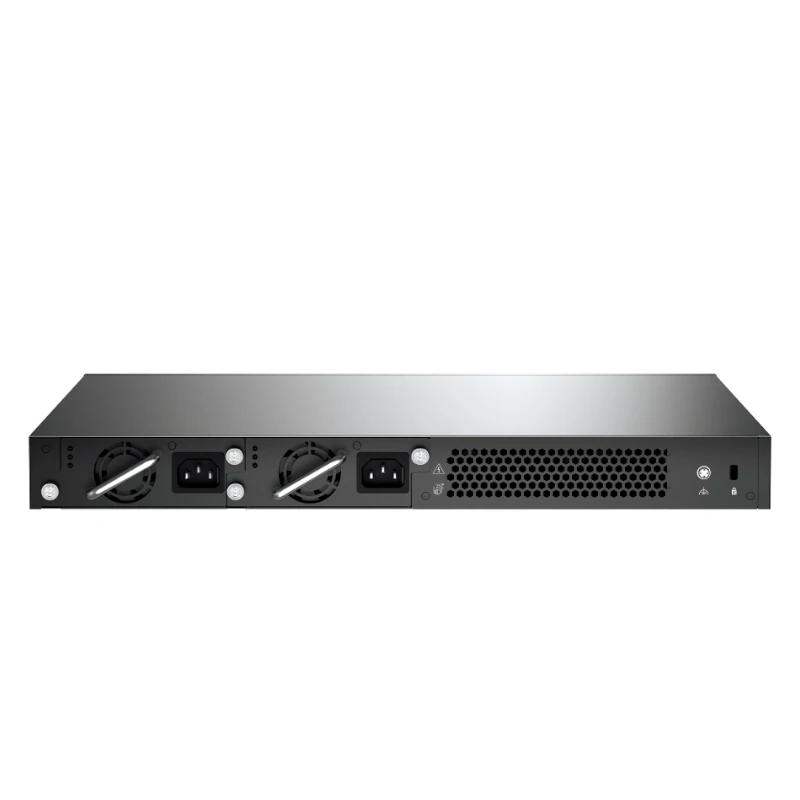

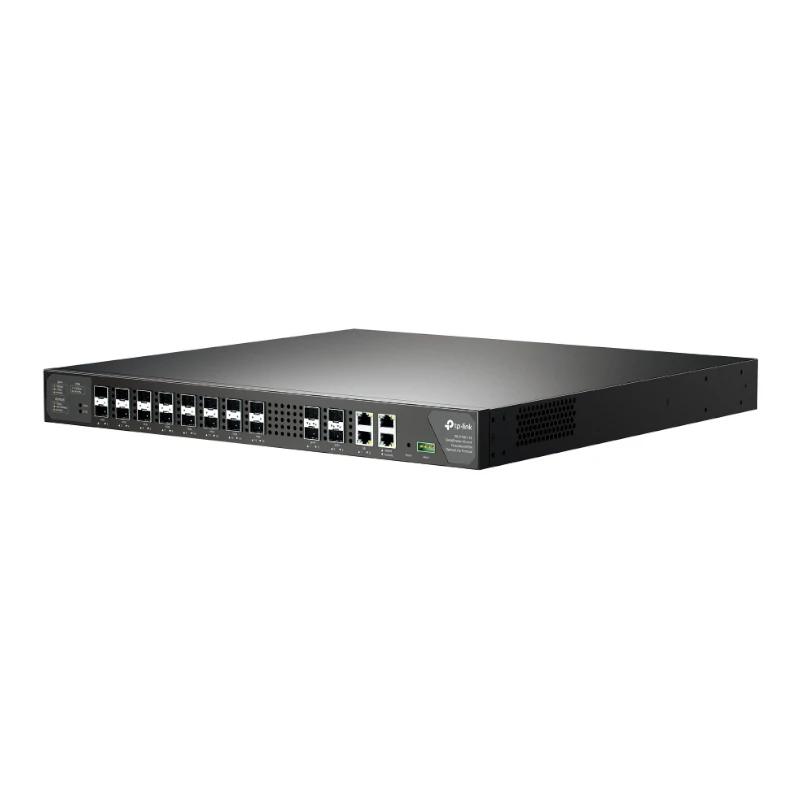

Name: TP-Link DS-P7001-16 OLT GPON 16xPON 4x10Gb SFP+
Brand: TP-LINK
SKU: IRS02195
Availability: OutOfStock

The TP-Link DS-P7001-16 OLT GPON is a latest generation solution designed to offer exceptional performance in fiber optic networks. This device has 16 PON ports, which allows to connect a large number of users simultaneously, ideal for internet service providers who seek to expand their infrastructure efficiently. With its ability to withstand up to 4 10 GB SFP+ modules, the DS-P7001-16 guarantees a rapid and reliable data transmission, ensuring that users experience optimal connection speeds.nnThe installation and configuration of the OLT is simple thanks to its intuitive interface and the management tools that TP-Link provides. This equipment is designed to be scalable, which means that you can adapt to the changing needs of your network as the number of users grows or greater connection speeds are demanded. In addition, its robust and reliable design ensures continuous and stable functioning, minimizing inactivity time.nnThe TP-Link DS-P7001-16 also incorporates advanced safety features, thus protecting both the network and user data. Its compatibility with multiple network standards guarantees that the device is integrated without problems in various existing configurations.nnIn summary, the TP-Link DS-P7001-16 OLT GPON is the perfect solution for those looking for a high-capacity network infrastructure, reliable and easy to manage, ideal to face the challenges of growing data traffic in the digital age.

Specifications

Brand	TP-Link
Model	DS-P7001-16
Interface	– 16 × GPON ports – 4 x 10 Gbps SFP+ uplink ports – 2 x 10/100/1000 Mbps RJ45 uplink ports – 1 × RJ45 console port – 1 × RJ45 management port – 1 × alarm port
Software Features	– Security: ACL 802.1x Authentication ARP Inspection IP Source Guard – DHCP: DHCP Server DHCP Relay – OMCI Standard OMCI management compatible – ONU Authentication Automatic ONU authentication – ONU Security: Rogue ONU detection and isolation Uplink and downlink data encryption – Multi-service Multi-service Traffic Identifier and Rate Limit – Quality of service: Quality of service IEEE 802.1p/DSCP Voice VLAN Automatic VoIP – Routing Static routing – Multicast transmission: IGMP Snooping MLD Snooping – Centralized management: Large Scale Device Management Batch configuration, update, and reboot of OLT Multi-site management Intelligent network monitoring Real-time network overview – Max. Split ratio: 1:128 – Transmission distance: 60 km – Data rate Downstream: 2.5 Gbps Upstream: 1.25 Gbps – Wavelength: Tx: 1490 nm Rx: 1310 nm – Interface type: SC/UPC – Fiber type: 9/125μm SMF (Single Mode Fiber) – TX Power: Class C+
Features	– Buttons: Reset button – Power Supply: Dual power supplies: 2 AC, 2 DC or AC+DC, AC: 100V~240V, 50/60Hz DC: -38.4V~-72V – Power Consumption: Max. 103W – Certifications: CE,FCC – Operating temperature: 0ºC ~50ºC – Storage temperature: -40ºC ~ 70ºC Dimensions – 440 × 440 × 44 mm Contents – OLT device – Power cable and console cable – Installation guide – Mounting brackets, screws, and rubber feet
Review Date	19-08-2024 by RTY
