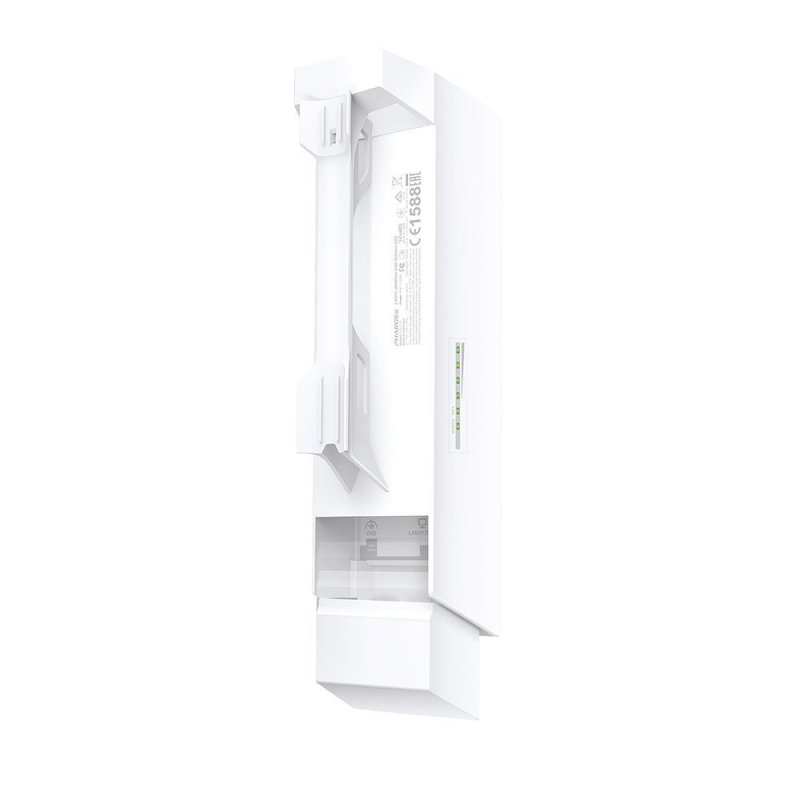

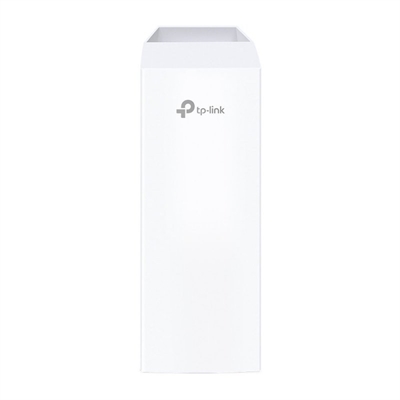

TP-LINK CPE210 N300 PoE Access Point
41,23 €
Experience a powerful wireless connection with the TP-Link CPE210. This access point N300 Poe is ideal for exteriors, offering broad coverage and reliable performance for your network needs.
Shipping Cost & Delivery Time
The TP-Link CPE210 is an external access point that offers a robust and efficient solution for data transmission in outdoor environments. With a speed of up to 300 Mbps, this device is designed to cover long distances, ideal for rural areas, factories, parks, and anywhere where a stable and high quality Wi-Fi connection is needed.nnEquipped with POE technology (Power Over Ethernet), CPE210 allows to feed the device through the network cable, which facilitates its installation in difficult places to reach without the need for nearby power outlet. Its weather -resistant design guarantees optimal functioning even in adverse climatic conditions, while its 9 DBI directional antenna maximizes the coverage and stability of the signal.nnThe device has an Ethernet port that allows connection to other network devices, as well as the ability to function in different ways, including access point, customer, repeater and WISP mode, which makes it a versatile solution for any need for connectivity. In addition, CPE210 configuration and management are carried out in a simple way through the web interface or the TP-Link Tether application, which facilitates their customization according to user preferences.nnWhether you need to expand your Wi-Fi network, establish a link between two distant points or provide internet access in a wide area, the TP-Link CPE210 is the ideal choice to guarantee a reliable and high performance connection outdoors.
Specifications
CPE210
– Built with a 9dBi 2×2 dual-polarized directional MIMO antenna
– Adjustable transmission power from 0 to 27dBm/500mw
– System-level optimizations for over 5 kilometers of Wi-Fi transmission
– TP-LINK’s Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology enhances product performance, capacity, and latency, ideal for PTMP applications
– Centralized configuration system – Pharos Control
– Available operation modes: Access Point / Client / Repeater / Access Point Router / AP Client Router (WISP)
– The passive PoE adapter supports up to 60 meters (200 feet) deployment in Power over Ethernet and allows the device to be reset remotely
| Brand | TP-LINK |
| Model | CPE210 |
| Features |
– Processor:
Qualcomm Atheros 560MHz CPU, MIPS 74Kc – Memory: 64MB DDR2 RAM, 8MB Flash – Interfaces: 1 protected Ethernet port 10/100Mbps (LAN0, Passive PoE) 1 Grounding terminal 1 Reset button WIRELESS FEATURES
– Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled) – Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled) – Wireless Speeds: Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic) Up to 72.2Mbps (10MHz, Dynamic) Up to 36.1Mbps (5MHz, Dynamic) – Frequency: 2.4~2.483GHz SOFTWARE FEATURES
– Wireless Configurations: Pharos MAXtream TDMA Technology – 802.11b/g/n Modes Selectable bandwidth: 5/10/20/40MHz Automatic channel selection Transmission power control Dynamic frequency selection (DFS) – WDS enabled/disabled – Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) with encryption – 64/128/152 bit WEP encryption – SSID Broadcast enabled/disabled – Multi-SSID with VLAN tagging (Only in AP mode) – Distance/ACK Timeout Setting – MAC address filtering via Wi-Fi – Advanced Wi-Fi features: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia – Management: Discover and manage remotely via the Pharos Control application – Web-based management HTTP/HTTPS – Logging system SNMP Agent(v2c) Ping Watch Dog Dynamic DNS SSH Server – System Tools Wi-Fi signal quality indicators: Signal strength/Noise/Transmission CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer – Speed test Ping Trace route – System-level Optimizations: IGMP Snooping/Proxy optimized for multicast applications – Hardware watchdog |
| Other Features |
– Certifications: CE, FCC, RoHS, IPX5
– Package Contents: Wireless outdoor CPE 24V 1A passive POE adapter Mounting straps Power cable Installation guide – System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. – Environmental Factors: Operating Temperature: -30°C~70°C (-22°F~158°F) Storage Temperature: -40°F~70°F (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing POE ADAPTER FUNCTIONS – Remote reset button – Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark – Dimensions(W x D x H): 110*57*33.5mm – Efficiency: >80% – Input 100-240VAC, 50/60Hz – Input Current: 0.8A Max @ 100VAC – Input Voltage: 100VA~240VAC @ 50Hz~60Hz – Interfaces: 1 AC Jack with grounding 1 protected Ethernet port 10/100Mbps (Power + Data) – Output Voltage: 24VDC(+4,5pins; -7,8pins) – Power Status LEDs: 0~0.8A: Green 0.8A~1.0A: Red |
| Review Date | 05-12-2014 by FE4 |
Additional information
| Weight | 0,81 kg |
|---|---|
| Dimensions | 27,0 × 14,0 × 11,0 cm |
