TP-Link Archer T4E AC120 PCI-E Wi-Fi Adapter

Improve your Internet connection with the TP-Link Archer T4E Wi-Fi adapter PCI-E AC120 . This wireless network adapter offers speeds up to 1200 Mbps, ideal for high -definition games and streaming. Its compact and easy installation design make it the perfect option to update your PC.

Technical Specifications

• Archer T4E – Dual Band AC1200 WiFi PCI Express Adapter
• Easy Installation – Connect the adapter to an available PCI-E slot to upgrade your desktop
• High-Speed Wi-Fi – up to 1200 Mbps Wi-Fi speed (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
• Dual Band 802.11ac – 3 times faster than the 802.11n standard, perfect for heavy network usage
• Beamforming – Wi-Fi signals are strengthened towards specific directions where clients are located

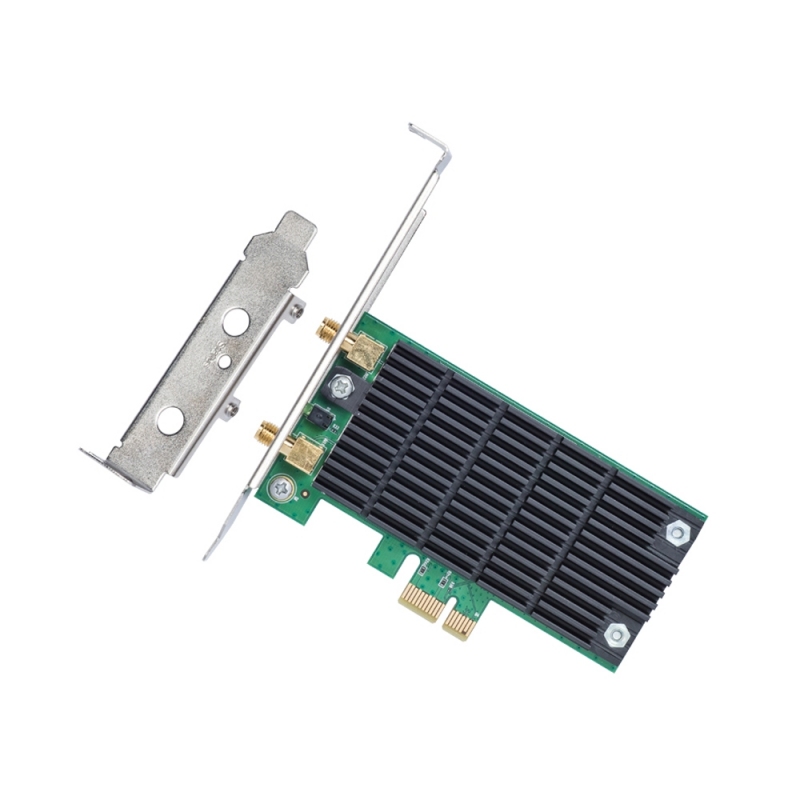

• Multiple Size Supports – Both low-profile and full-height brackets are provided, convenient for any PC
• 2×2 MIMO – Users can easily access high-speed wireless connections

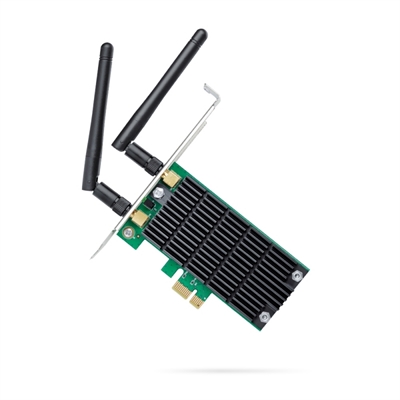

• Wide Wireless Coverage: two external antennas ensure greater Wi-Fi coverage and increased stability
• Brand TP-Link
• Model Archer T4E
• Hardware Features
• Interface: PCI Express
• Dimensions: 120.8*115.2*21.5 mm (4.8 x 4.5 x 0.85 in)
• Antenna Type: 2 Removable Dual Band Antennas
• Wireless
• Wireless Standards: IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/g/b 2.4 GHz
• Signal Rate: 5 GHz
• 11ac: Up to 867 Mbps(dynamic)
• 11n: Up to 300 Mbps(dynamic)
• 11a: Up to 54 Mbps(dynamic)
• 2.4 GHz
• 11n: Up to 300 Mbps(dynamic)
• 11g: Up to 54 Mbps(dynamic)
• 11b: Up to 11 Mbps(dynamic)
• Reception Sensitivity: 5 GHz:
• 11ac HT80: -59.5 dBm
• 11ac HT40: -63 dBm
• 11ac HT20: -68 dBm
• 11n HT40: -70 dBm
• 11n HT20: -73 dBm
• 11a 54Mbps: -76 dBm
• 11a 6Mbps: -92 dBm
• 2.4GHz :
• 11n HT40: -67.5 dBm
• 11n HT20: -70 dBm
• 11g 54Mbps: -72 dBm
• 11b 11Mbps: -86.5 dBm
• Transmission Power: 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
• 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
• Wireless Modes: Infrastructure mode
• Wireless Security: Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
• Others
• Certifications: CE, FCC, RoHS
• Environmental Features
• Operating Temperature: 0ºC~40ºC
• Storage Temperature: -40ºC~70ºC
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• System Requirements: Windows 10/8.1/8/7/XP (32/64bit)
• Contents

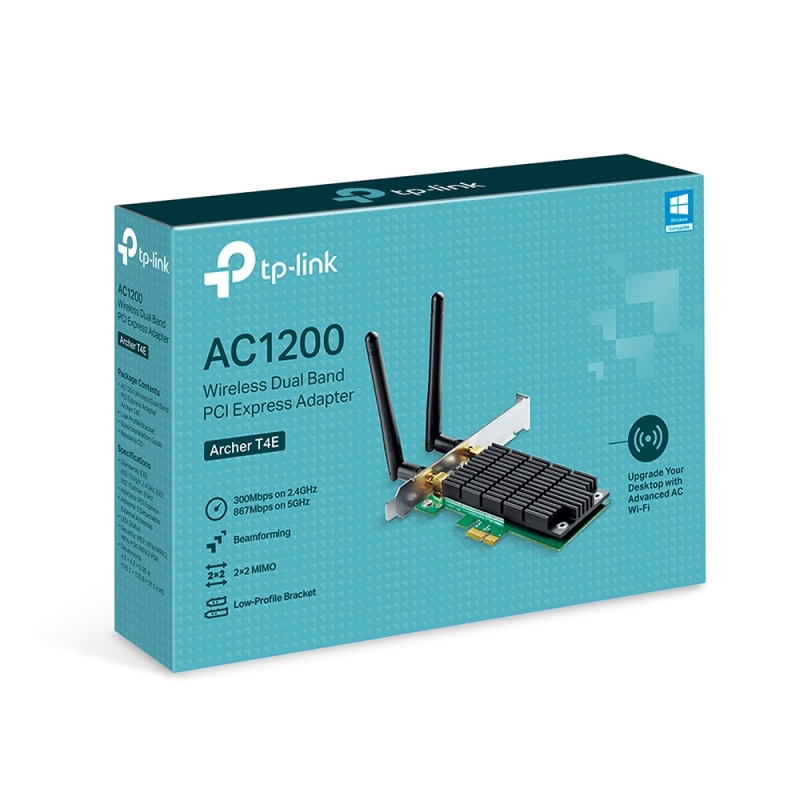

• AC1200 Dual Band Wireless PCI Express Adapter Archer T4E
• Low Profile
• Quick Installation Guide
• Resource CD
