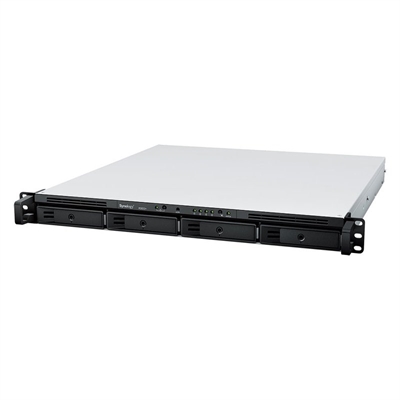

Synology RS822+ NAS 4-Bay Rack Station 1U

The Synology RS822+ is a powerful 4 -bay NAS station in Rack 1U format, designed to meet the storage and data management needs of small and medium enterprises. With its robust and efficient architecture, this device offers a perfect balance between performance and capacity, being ideal for environments that require rapid and safe access to large volumes of information.

Equipped with a high-performance Quad-Core processor expandable RAM, the RS822+ guarantees a fluid operation even under intensive workloads. Its ability to withstand up to 32 TB of total storage using hard drives, allows users to manage large amounts of data and make backups efficiently. In addition, the possibility of configuring RAID provides an additional layer of protection for critical information.

The Synology RS822+ not only stands out for its storage capacity, but also for its versatility in applications. With the Diskstation Manager (DSM) operating system, users can take advantage of a wide range of tools and applications, from file synchronization to virtualization and cloud data management. Its compact design allows easy integration in server racks, optimizing space without compromising performance.

Connectivity is another of the strengths of this NAS, which offers multiple USB and Ethernet ports, ensuring perfect integration with other devices and networks. With advanced security and management characteristics, the Synology RS822+ is the ideal solution for those looking for a reliable, scalable and easy to use storage station.

Technical Specifications

• Synology Brand
• Model RS822+
• Hardware CPU
• CPU Model: AMD Ryzen V1500B
• Number of CPUs: 1
• CPU Architecture: 64-bit
• CPU Frequency: 4-core 2.2 GHz
• Hardware Encryption Engine (AES-NI)
• Memory
• System Memory: 2 GB DDR4 ECC SODIMM
• Pre-installed Memory Module: 2 GB (2 GB x 1)
• Total Memory Slots: 2
• Maximum Memory Capacity: 32 GB (16 GB x 2)
• Storage
• Drive Bay(s): 4
• Max. Drive Bays with Expansion Unit: 8 (RX418 x 1)
• Compatible Drive Type (see all compatible hard drives): 3.5″ SATA HDD, 2.5″ SATA SSD
• Hot Swappable Drive
• External Ports
• RJ-45 1GbE LAN Port: 4 (with Failover / Link Aggregation support)
• USB 3.2 Gen 1 Port: 2
• eSATA Port: 1
• PCIe
• PCIe Expansion: 1 x Gen3 x8 slot (x4 link)
• File System
• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• Storage Software
• Maximum Single Volume Size: 108 TB
• Maximum Internal Volume Number: 64
• Read/Write SSD Cache (White Paper) –
• SSD TRIM
• Compatible RAID Type
• Synology Hybrid RAID
• Basic
• JBOD
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10
• RAID Migration
• Basic to RAID 1
• Basic to RAID 5
• RAID 1 to RAID 5
• RAID 5 to RAID 6
• Volume Expansion with Larger Drives –
• Synology Hybrid RAID
• RAID 1
• RAID 5
• RAID 6
• RAID 10
• Volume Expansion by Adding a Drive –
• Synology Hybrid RAID
• JBOD
• RAID 5
• RAID 6 (with expansion unit)
• Compatible RAID Type with Global Hot Spare –
• Synology Hybrid RAID
• RAID 1
• RAID 5
• RAID 6 (with expansion unit)
• RAID 10 (with expansion unit)
• File System
• File Protocol: SMB/AFP/NFS/FTP/WebDAV
• Maximum Simultaneous SMB/AFP/FTP Connections: 500
• Maximum Simultaneous SMB/AFP/FTP Connections (with RAM expansion): 2,000
• Integration with Windows Access Control List (ACL)
• NFS Kerberos Authentication
• Shared Folder and Account
• Maximum Number of Local User Accounts: 2,048
• Maximum Number of Local Groups: 256
• Maximum Number of Shared Folders: 512
• Maximum Number of Shared Folder Sync Tasks: 16
• Other Features
• Appearance
• Form Factor (RU): 1U
• Size (Height x Width x Depth): 44 mm x 480 mm x 492.6 mm
• Weight: 6.4 kg
• Rack Installation Support: 19″ 4-post rack (Synology Rail Kit: RKM114/RKS-02)
• Power
• Power Supply / Power Adapter: 150W
• Power Frequency: 50/60 Hz, Single Phase
• AC Power Input Voltage – 100 V to 240 V AC
• Power Consumption: 47.69 W (Access), 16.7 W (Hard Drive Hibernation)
• British thermal unit: 162.83 BTU/hr (Access), 57.02 BTU/hr (Hard Drive Hibernation)
• Others
• System Fan: 40 mm x 40 mm x 3 pcs
• Fan Speed Mode: Full Speed Mode, Cool Mode, Silent Mode
• Power Recovery
• Noise Level: 27.4 dB(A)
• Scheduled Power On/Off
• Wake on LAN / WAN
• Environment
• Operating Temperature: 0°C to 35°C (32°F to 95°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative Humidity: 5% to 95% RH
• Package Content
• Main Unit x 1
• Accessory Pack x 1
• AC Power Cord x 1
• Quick Installation Guide x 1
• Revision Date 09-08-2022 by MPM
