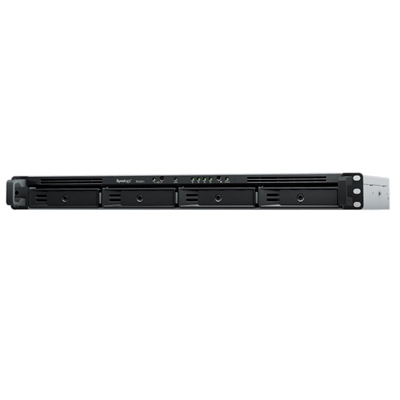

SYNOLOGY RS422+ NAS 4Bay 1U RackStation

The Synology RS422+ NAS 4Bay 1u Rackstation is a storage solution designed for small and medium enterprises that seek exceptional performance and efficient data management. With its elegant design in 1u rack format, this device optimizes the space without sacrificing functionality.

Equipped with a powerful Quad-Core processor and 4 GB of RAM, RS422+ guarantees fluid performance during multitasking and the execution of demanding applications. Its ability to house up to four hard drives allows a flexible storage expansion, offering RAID settings that ensure data protection and maximize system efficiency.

The RS422+ stands out for its versatile connectivity, including multiple USB ports and two gigabit Ethernet ports, which facilitates integration into existing networks and the transfer of data at high speed. In addition, it is compatible with the latest 10GBE network technology, providing the possibility of future updates for even greater performance.

Synology Diskstation Manager (DSM) software provides an intuitive interface and advanced data management tools, allowing users to manage backups, share files and collaborate as a team in a simple and effective way. With robust safety characteristics, such as data encryption and two factors authentication, RS422+ guarantees that your company’s critical information is always protected.

In summary, the Synology RS422+ NAS 4Bay 1u Rackstation is the ideal solution for those who seek a powerful, safe and easy to manage storage system, adapting perfectly to the needs of any modern business.

Technical Specifications

• Marca Synology
• Modelo RS422+
• CPU – AMD Ryzen™ R1600 dual-core (4 threads) at 2.6 GHz, maximum turbo boost up to 3.1 GHz
• Hardware AES-NI encryption engine
• Memory – 2GB ECC DDR4
• Storage – 4 x 3.5″ SATA HDD or 2.5″ SATA SSD (drives not included)
• Hot-swappable
• Supported RAID types: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Maximum single volume size: 108 TB
• Maximum system snapshot number: 65,536
• Maximum internal volumes: 64
• Read/write cache support
• 2.5″ SATA SSD support
• Connections – External ports 1 x USB 3.2 Gen 1 port
• LAN ports 2 x 1 GbE RJ-45
• Wake on LAN/WAN
• Features
• File System
• Internal: Btrfs, ext4
• External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
• Appearance
• Form factor: 1U rackmount
• Size (H x W x D)
• 44 x 430.5 x 295.5 mm
• 44 x 478 x 327.5 mm (with server handles)
• Weight 4.38 kg
• Network Protocols
• SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)
• Others
• Network expansion: Compatible with 10 GbE RJ-45 network upgrade module E10G22-T1-Mini
• Scheduled on/off
• System fans: 3 x (40 x 40 x 20 mm)
• Input power: 100 to 240 V AC
• Frequency: 50/60 Hz, single-phase
• Operating environment
• Temperature: 0 °C to 35 °C (32 °F to 95 °F)
• Relative humidity: 8% to 80% RH
• Storage environment
• Temperature: -20 °C to 60 °C (-5 °F to 140 °F)
• Relative humidity: 5% to 95% RH
• Maximum operating altitude: 5000 m (16,400 ft)
• Revision Date 03-05-2022 by MPM
