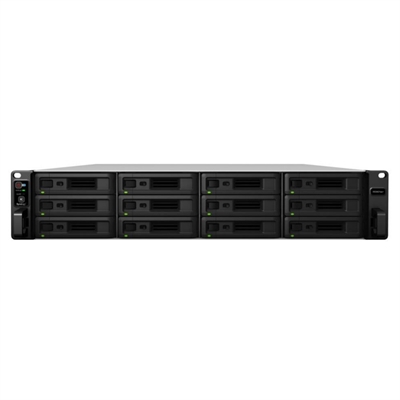

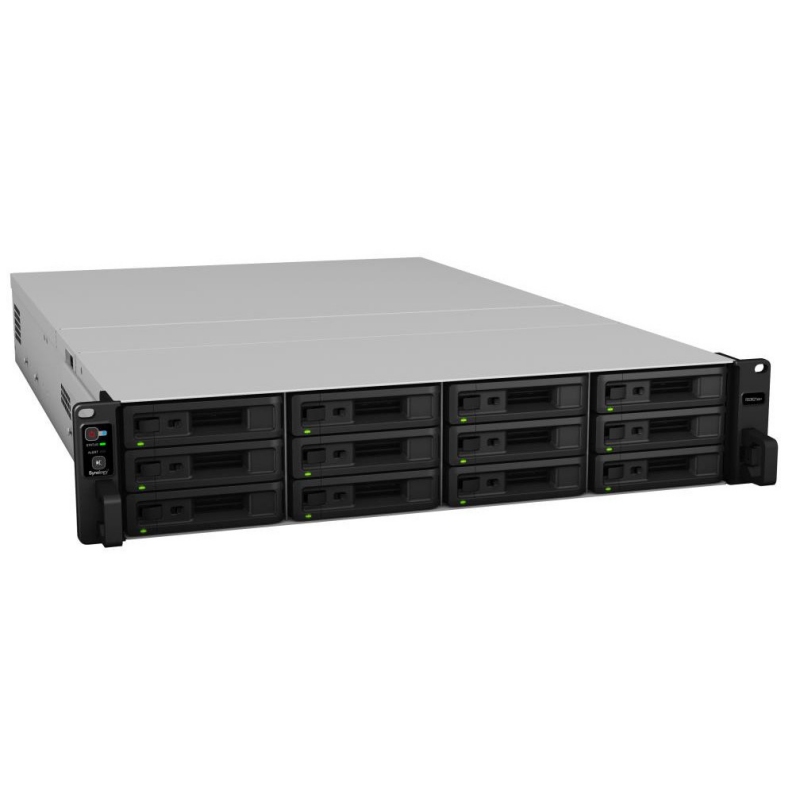

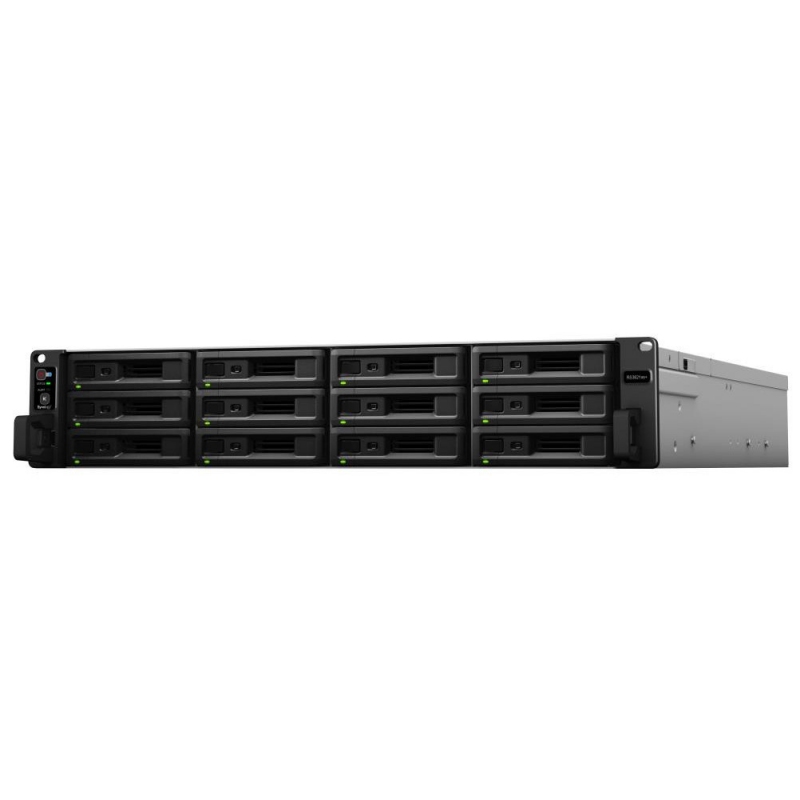

Synology RS3621RPxs NAS 12-bay 2U Rack Station

The SYNOLOGY RS3621RPXS is a powerful 12 -Bay NAS station in 2U format, designed to meet the storage and management needs of companies that require a scalable and reliable solution. With exceptional performance and a robust architecture, this device is ideal for virtualization, centralized backup and the management of large volumes of data.

Equipped with an Intel Xeon D-1527 processor with 4 cores and 8 threads, the RS3621RPXS offers an impressive processing capacity, allowing the simultaneous execution of multiple tasks without compromising the speed. Its 8 GB of RAM DDR4, expandable up to 32 GB, guarantee fluid performance even in demanding work environments.

This NAS has 12 bays for disc units, which allows mass storage capacity, and is compatible with 3.5 ”SATA hard drives and 2.5” SSD. In addition, its flexible design allows expansion through Synology expansion units, which ensures that its storage capacity can grow together with your business.

Data safety is a priority, and RS3621RPXS includes advanced features such as 256 -bit AES, protection against hardware failures and data replication options to guarantee the integrity and availability of information. With an intuitive operating system, Synology DSM, users can manage their data efficiently, taking advantage of integrated applications for collaboration and productivity.

In summary, the Synology RS3621RPXS is the ideal solution for companies that seek a robust, scalable and safe storage system, capable of adapting to the changing demands of the current business environment.

Technical Specifications

• Synology Brand
• Model RS3621RPxs
• CPU – Intel® Xeon® D-1531 6-core (12 threads) at 2.2 GHz, Turbo Boost up to 2.7 GHz
• Hardware encryption engine: Yes (AES-NI)
• Memory
• 8GB of UDIMM ECC DDR4 (expandable up to 64 GB)
• Storage
• 12 x 3.5″ or 2.5″ SATA HDD/SSD (disks not included)
• To create storage groups, only units listed in the compatibility list can be used
• To create SSD caches, only 2.5″ SAT5200 SSD or Synology SNV3000 series (sold separately) can be used
• Hot-swappable unit
• File System
• Internal units: Btrfs, EXT4
• External units: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• Compatible RAID types
• Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Storage Management
• Maximum individual volume size: 108/200 TB
• Maximum system snapshots: 65,536
• Maximum number of internal volumes: 128
• SSD Cache
• Read and write cache support
• Support for 2.5″ SATA SSD
• Support for NVMe M.2 SSD
• File Sharing Capabilities
• Maximum number of local user accounts: 16,000
• Maximum number of local groups: 512
• Maximum number of shared folders: 512
• Maximum number of simultaneous SMB/NFS/AFP/FTP connections: 2,000

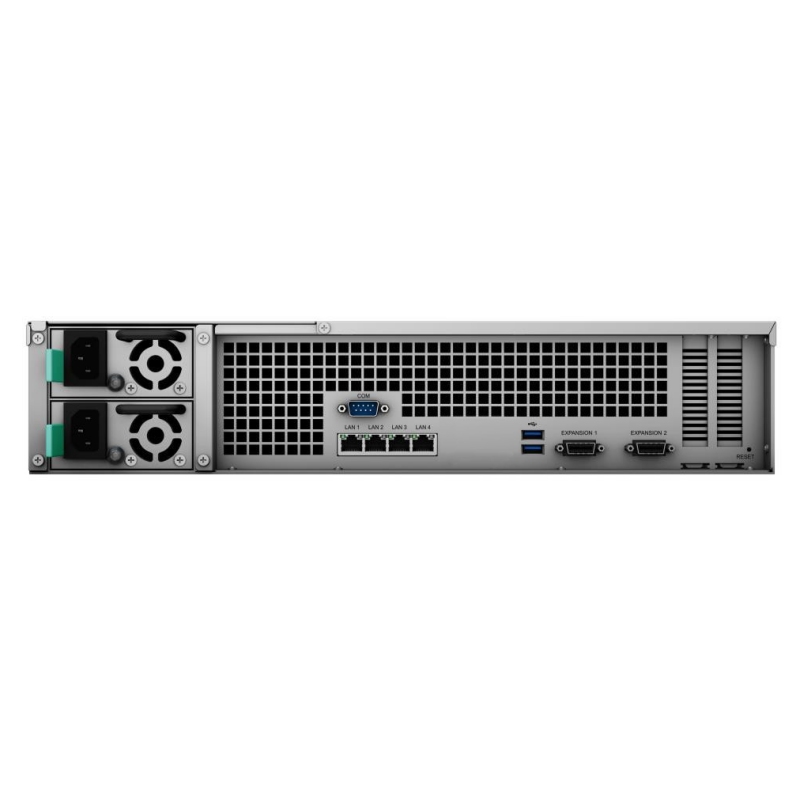

• Connections – 2 x USB 3.2 Gen 1 ports
• 2 x expansion ports (Infiniband)
• LAN ports: 4 x 1 GbE RJ-45
• PCIe 3.0 slots:
• 2 x 8-lane x8 slots
• Support for network interface cards and NVMe M.2 SSD adapter cards for SSD cache
• Features
• Security
• Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH
• automatic login blocking, Let’s Encrypt support, HTTPS (custom cipher sets)
• Network Protocols
• SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP)
• Appearance
• Size (H x W x D): 88 mm x 482 mm x 724 mm
• Weight: 14.5 kg
• Others
• System fan: 4 x (80 x 80 x 32 mm)
• Scheduled start and stop
• Wake on LAN/WAN
• Redundant power supply
• Input power voltage: 100V to 240V AC
• Revision Date 08-03-2022 by MPM
