SYNOLOGY RS3618xs NAS 12Bay Rack Station

The Synology RS3618XS NAS 12Bay Rack Station is a high -performance network storage solution designed to meet the needs of companies that require efficient data management. With capacity for up to 12 hard disk units, this robust server allows flexible and scalable expansion, ideal for environments with great storage demand.

Equipped with a powerful Intel Xeon D-1527 and 8 GB processor (expandable up to 32 GB), the RS3618XS offers exceptional performance, guaranteeing the fluid execution of applications and rapid data transfer. Its 64 -bit architecture optimizes efficiency and speed, allowing rapid access to critical files and applications.

The RS3618xS is compatible with RAID technology, which allows users to configure their hard drives to maximize both data safety and performance. In addition, its intuitive management interface facilitates configuration and maintenance, allowing IT administrators to manage storage effectively.

With advanced virtualization capabilities, backup and synchronization, this NAS is ideal for companies that seek to protect their information and guarantee the continuity of the business. RS3618xS also includes robust security features, such as data encryption and two factors authentication, to protect your sensitive information.

In summary, the Synology RS3618XS NAS 12Bay Rack Station is a strategic investment for any organization looking for a reliable, scalable and safe storage system. With its high performance and advanced characteristics, it is the perfect choice to handle large volumes of data in a demanding business environment.

Technical Specifications

• Synology Brand
• Model RS3618xs
• CPU
• Intel Xeon D-1521
• 64-bit Architecture
• Quad-core 2.2 GHz
• Hardware Encryption Engine (AES-NI)
• Memory
• System Memory: 8GB DDR4 ECC UDIMM
• Pre-installed Memory Module: 8GB (1 x 8GB)
• Total Memory Slots: 4
• Expandable Memory up to: 64GB (16GB x 4)
• Storage
• Drive Bays: 12
• Maximum Drive Bays with Expansion Unit: 36
• Drive Type
• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD
• Maximum Internal Capacity: 144 TB (12TB Hard Drive x 12) (Capacity may vary depending on RAID type)
• Maximum Raw Capacity with Expansion Units: 432TB (144TB Hard Drive + 12TB Drive x 24) (Capacity may vary depending on RAID type)
• Maximum Single Volume Size: 108 TB
• Compatible RAID: RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Hot-swappable Drive
• Connections
• 2 x USB 3.0 Port
• 2 x Expansion Port

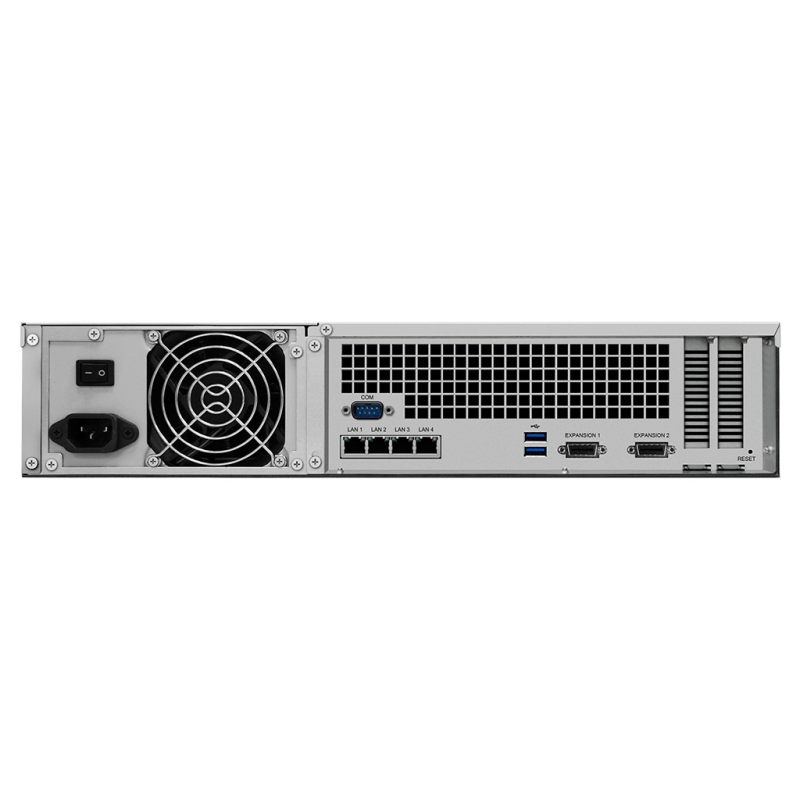

• 4 x RJ-45 GbE LAN (with Failover / Link Aggregation Support)
• Features
• File System
• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• Appearance
• Size (Height X Width X Depth):
• 88 mm X 430.5 mm X 692 mm
• Weight: 14.5 kg
• Certification
• EAC
• VCCI
• CCC
• RCM
• FCC
• CE
• BSMI
• Network Protocols
• CIFS
• AFP
• NFS
• FTP
• WebDAV
• CalDAV
• iSCSI
• Telnet
• SSH
• SNMP
• VPN (PPTP, OpenVPN, L2TP)
• Others
• System Fan: 80 mm x 80 mm x 4 pcs
• Easy System Fan Replacement
• Power Recovery
• Noise Level: 50.2 dB(A)
• Scheduled On/Off
• Wake on LAN/WAN
• Power Supply / Adapter: 500W
• Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 Hz, Single-phase
• Power Consumption: 142.76 W (Access)
• 55.05 W (Hard Drive Hibernation)
• Revision Date 11-09-2018 by MSB
