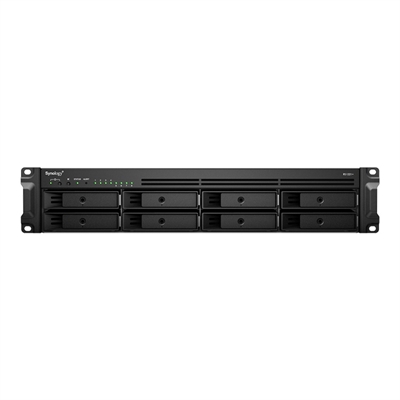

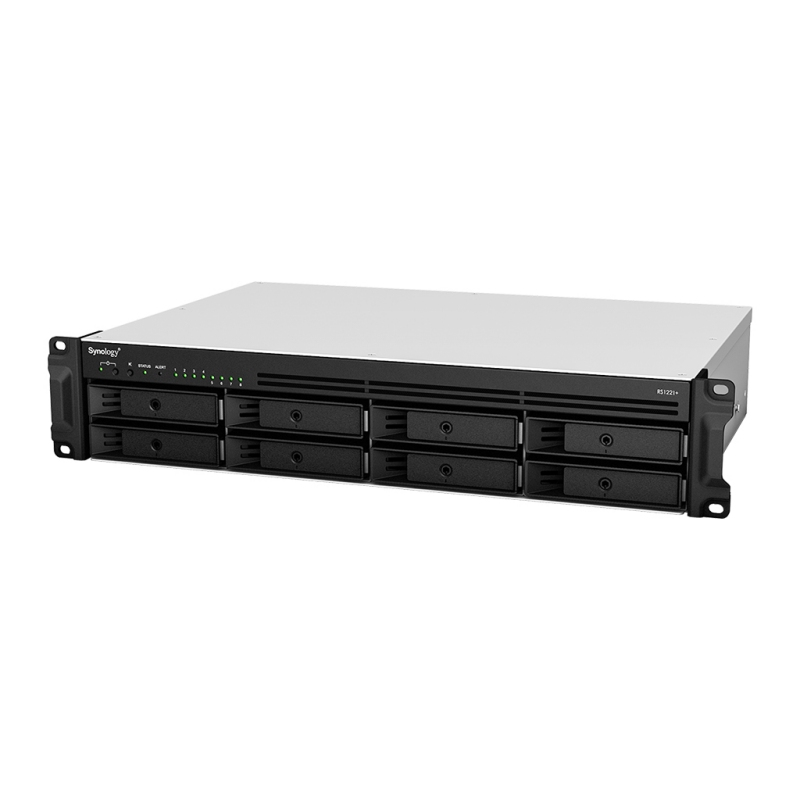

Synology RS1221+ NAS 8Bay Rack Station

The Synology RS1221+ is an 8 -bay NAS station designed to offer exceptional performance and efficient data management in business and collaborative work environments. With a robust and compact design, this device adapts perfectly to any rack, optimizing the use of space without sacrificing power.

Equipped with an AMD Ryzen four -core processor, the RS1221+ guarantees rapid and efficient processing, ideal for intensive tasks such as virtualization and management of large volumes of data. With up to 32 GB of RAM DDR4, this NAS allows fluid performance, even with multiple users accessing simultaneously.

The expansion capacity is one of the most outstanding characteristics of RS1221+. With the possibility of adding up to 12 additional disc units by connecting Synology expansion units, you can expand your storage capacity as your needs grow. In addition, integrated Raid technology ensures that your data is protected against losses.

The DiskStation Manager (DSM) operating system provides an intuitive interface and a wide range of applications that facilitate file management, team collaboration and data safety. From the synchronization with the cloud to the configuration of automated backups, the RS1221+ offers comprehensive solutions to maintain your information always available and safe.

With versatile connectivity, including multiple USB ports and 2 LAN ports of 1 GBE, the Synology RS1221+ is the ideal choice for companies looking for a reliable and high -performance NAS, capable of satisfying the demands of modern work.

Technical Specifications

• Synology Brand
• Model RS1221+
• CPU – AMD RyzenTM V1500B quad-core 2.2 GHz
• Hardware encryption engine (AES-NI)
• Memory – 4GB DDR4 ECC SODIMM (expandable to 32 GB)
• Storage – 8 x 3.5″ or 2.5″ SATA HDD/SSD (disks not included)
• Hot-swappable unit
• Connections – 2 x USB 3.2 Gen 1
• 1 x Expansion (eSATA)
• PCIe 3.0 slot
• 1 x8 slot with 4 lanes
• Supports network interface cards and NVMe M.2 SSD adapter cards for SSD cache8
• Features
• Network
• LAN ports: 4 x 1GbE RJ-45
• Wake on LAN / WAN: Yes
• File system
• Internal drives: Btrfs, EXT4
• External drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• Appearance
• Form factor: 2U rackmount
• Size (Height X Width X Depth):
• 88 x 482 x 306.6 mm (with server handles)
• Weight: 6.9 kg
• Storage management
• Maximum single volume size: 108/200 TB
• Maximum system snapshot number: 65,536
• Maximum internal volumes: 64
• SSD cache
• Read/write cache support
• 2.5″ SATA SSD support
• M.2 NVMe SSD support
• File sharing capabilities
• Maximum local user accounts: 2048
• Maximum local groups: 256
• Maximum shared folders: 512
• Maximum simultaneous SMB / NFS / AFP / FTP connections: 1,000
• Network protocols
• SMB
• AFP
• NFS
• FTP
• WebDAV
• CalDAV
• iSCSI
• Telnet
• SSH
• SNMP
• VPN (PPTP, OpenVPN™, L2TP)
• Security
• Firewall
• Shared folder encryption
• SMB encryption
• FTP over SSL / TLS
• SFTP
• Rsync over SSH
• Automatic login blocking
• Let’s Encrypt support
• HTTPS (customizable encryption suite)
• Others
• System fans: 2 x (80 x 80 x 25 mm)
• Scheduled start and stop
• Input power voltage: 100V to 240V AC
• Power frequency: 50/60 Hz, Single-phase
• Revision date 17-02-2021 by MSB
