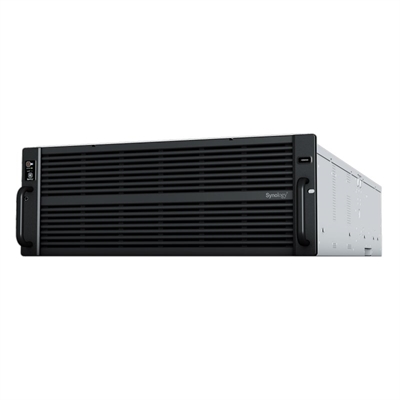

Synology HD6500 NAS 60Bay Rack Station 4U

The Synology HD6500 NAS is a 60 -bay rack station in 4U format, designed to meet the storage and data management needs of large -scale companies. With its powerful processor and wide memory capacity, this device guarantees exceptional performance and high availability for critical applications.

Equipped with up to 60 hard disk units, the HD6500 offers a mass storage capacity that allows organizations to manage large volumes of data efficiently. Advanced Raid architecture provides robust protection against data loss, ensuring that the information is always safe and accessible.

This NAS is designed to facilitate management and access to data. With their Diskstation Manager (DSM) operating system, users can enjoy an intuitive interface that simplifies file management, backups configuration and team collaboration. In addition, HD6500 supports a wide range of applications, from virtualization to surveillance, which makes it a versatile solution for various business needs.

Connectivity is another prominent aspect of the Synology HD6500. With multiple Ethernet ports and expansion options, this NAS is easily integrated into any existing network infrastructure, optimizing the workflow and improving productivity. Finally, its 4U Rack design allows easy assembly and access, ideal for data centers and work environments where space is limited.

In summary, the Synology HD6500 NAS 60Bay Rack Station 4U is the perfect solution for companies that seek scalable, safe and easy to manage storage.

Technical Specifications

• Brand Synology
• Model HD6500
• CPU – 2 Intel Xeon Silver 4210R with 10 cores at 2.4 GHz, Turbo Boost up to 3.2 GHz
• AES-NI hardware encryption engine
• Memory – 64 GB RDIMM ECC DDR4 (expandable up to 512 GB)
• Storage – System drives: 2 SSD SATA 2.5″ (included)
• Storage drives: 60 HDD SAS 3.5″ (disks not included)
• Hot-swappable drives
• Connections – 2 USB 3.2 Gen 1 ports
• 2 expansion ports (Mini-SAS HD)
• 1 RJ-45 1 GbE (out-of-band management and data transfer)
• 2 RJ-45 1 GbE (data transfer)
• 2 x 10 GbE RJ-45
• Features
• Supported RAID types: Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
• Storage Management
• Maximum individual volume size: 200 TB/1 PB (Peta Volume)
• Maximum number of system snapshots: 65,536
• Maximum number of internal volumes: 256
• File Sharing Capabilities
• Maximum number of local user accounts: 16,000
• Maximum number of local groups: 512
• Maximum number of shared folders: 512
• Maximum number of simultaneous SMB/NFS/AFP/FTP connections: 6,000
• Wake on LAN/WAN: Yes (only on 1 GbE ports)
• PCIe Expansion
• 2 x 8-lane slots, 8 lanes Gen 3.0
• 2 x 16-lane slots, 16 lanes Gen 3.0
• Compatible with network interface cards and Fibre Channel host bus adapters
• Scheduled power on/off
• System fans: 4 x (80 x 80 x 38 mm)
• AC input power voltage: 200 to 240 V AC
• Power frequency: 50/60 Hz, single-phase
• File System
• Internal: Btrfs
• External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
• Appearance
• 4U rack mount
• Size (H x W x D)
• 176 x 438 x 985 mm
• 176 x 482 x 1020 mm (with server handles)
• Weight: 37.9 kg
• Others
• Operating temperature: 0 °C to 35 °C (32 °F to 95 °F)
• Operating relative humidity: 8% to 80% RH
• Storage temperature: -20 °C to 60 °C (-5 °F to 140 °F)
• Storage relative humidity: 5% to 95% RH
• Maximum operating altitude: 5000 m (16,400 ft)
• Review Date 16-05-2022 by MPM
