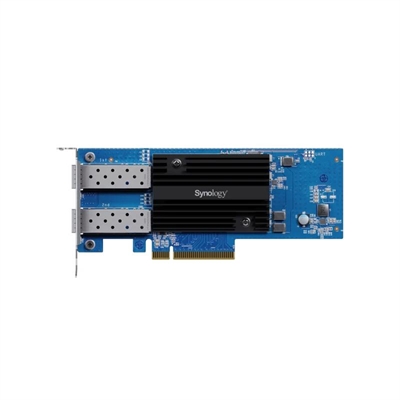

Synology E25G30-F2 25GbE SFP28 PCIe LP Adapter

The Synology E25G30-F2 Adapter 25GBE SFP28 PCIE LP is the ideal solution to improve the speed and performance of your network. This 25gbe adapter allows a high speed connection, optimizing data transfer in demanding work environments. 25Gbps, ideal for high demand applications.

Technical Specifications

• Brand Synology
• Model E25G30-F2
• Features – Host bus interface: PCIe 3.0 x8
• Mounting height: Low profile and full height
• 69 mm x 168 mm x 17.3 mm
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH
• Network – Compliance with IEEE specifications
• IEEE 802.3ad Link Aggregation
• Ethernet IEEE 802.3ae 10Gbps
• Ethernet IEEE 802.3by 25Gbps
• Data transfer speeds: 25 Gbps/10 Gbps
• Compatible features:
• TCP Segmentation Offload (TSO)
• Receive Side Scaling (RSS)
• Generic Segmentation Offload (GSO)
• Jumbo Frame of 1.5 – 9 KB
• TCP/UDP Checksum Offload
• Transmit Side Scaling (TSS)
• SR-IOV
• Large Receive Offload (LRO)
• *Due to mixed link speeds not being supported, both network ports must be configured with the same link speed.
• Compatibility – Compatible models:
• FS series: FS6400, FS3600, FS3410, FS3400, FS2500
• HD series: HD6500
• SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
• UC series: UC3400, UC3200
• 23 series: RS2423RP+, RS2423+, DS1823xs+
• 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+
• 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
• 19 series: RS1619xs+
• 18 series: RS3618xs
• 17 series: DS3617xsII, DS3617xs
• *DSM version requirements: 7.1.1-42962 Update 5 or later
• *For models with an AMD Ryzen V1000 CPU, DSM version 7.2.1-69057 or higher is required.
• Review date 18-06-2024 by RTY
