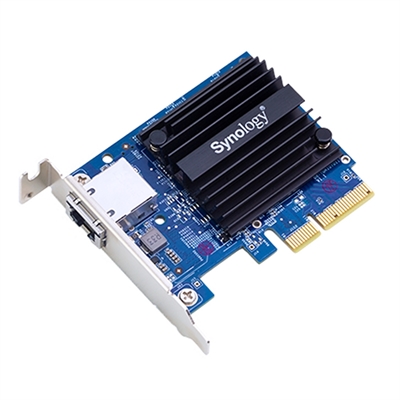

SYNOLOGY E10G18-T1 10GbE RJ45 Card

The SYNOLOGY E10G18-T1 10GbE RJ45 Card is the perfect solution to boost data transfer speed on your wired network. Designed by Synology, this network card offers exceptional connectivity and reliable performance to meet the demands of modern applications.

• Compatible with a wide range of devices.
• Simple and quick installation.
• Supports speeds of up to 10Gbps.
• Ideal for work environments that require high availability.

Technical Specifications

• Brand Synology
• Model E10G18-T1
• General – Standards:
• Ethernet IEEE 802.3an 10 Gbps
• Ethernet IEEE 802.3bz 2.5 Gbps/5 Gbps
• Ethernet IEEE 802.3ab Gigabit
• Ethernet IEEE 802.3u Fast
• Flow control IEEE 802.3x
• Data transfer speeds: 10 Gbps
• Network operating mode: Full duplex
• Compatible features
• Jumbo Frame of 9 KB
• TCP/UDP/IP checksum offloading
• Auto-negotiation between 100 Mb/s, 1 Gb/s, 2.5 Gb/s, 5 Gb/s, and 10 Gb/s
• Compatible models
• FS3017
• FS2017
• FS1018
• RS18017xs+
• RS18016xs+
• RC18015xs+
• RS10613xs+
• RS4017xs+
• RS3617xs+
• RS3614xs+
• RS3413xs+
• RS3618xs
• RS3617RPxs
• RS3617xs
• RS3614(RP)xs
• RS3412(RP)xs
• RS3411(RP)xs
• DS3617xs
• DS3615xs
• DS3612xs
• DS3611xs
• DS3018xs
• RS2818RP+
• RS2418(RP)+
• RS1219+
• RS818(RP)+
• DS1817+
• DS1618+
• DS1517+
• Hardware specifications – PCI Express interface: PCIe 3.0 x4
• Bracket height: Low profile and full height
• Size (Height x Width x Depth): 86.0 mm x 68.1 mm x 13.6 mm
• Operating temperature: From 0°C to 40°C (from 32°F to 104°F)
• Storage temperature: From -20°C to 60°C (from -5°F to 140°F)
• Relative humidity: From 5% to 95% RH
• Review date 12-09-2018 by MSB
