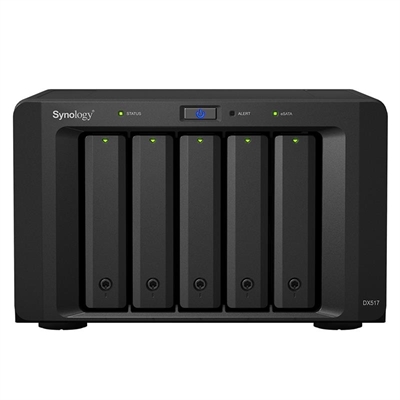

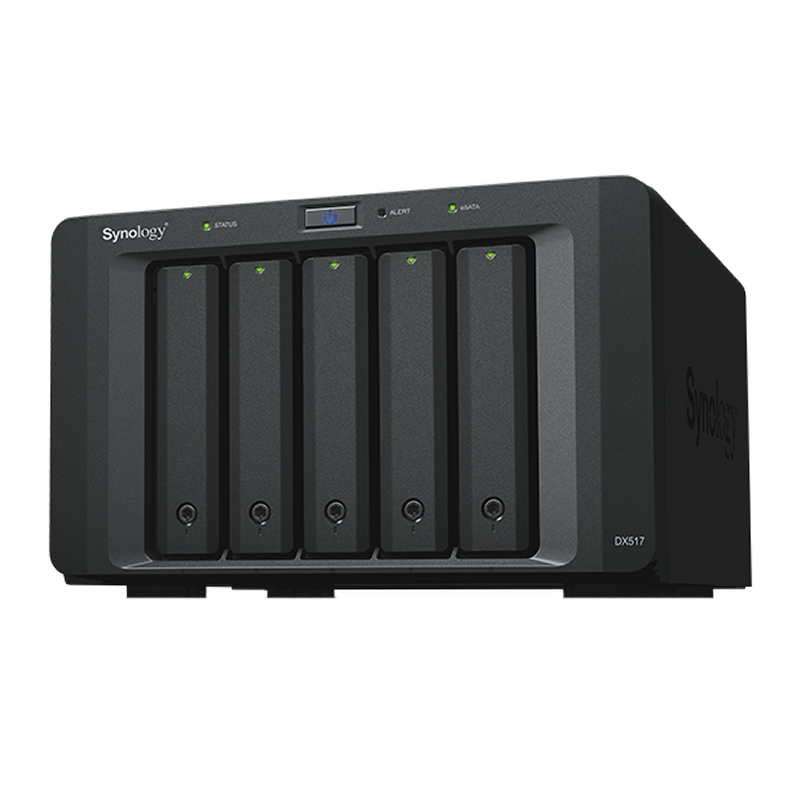

SYNOLOGY DX517 Expansion Unit 5-Bay Disk Station

The Synology DX517 expansion unit is the ideal solution for those who seek to expand the storage capacity of their diskstation. With an elegant and compact design, this unit of 5 bays allows to add up to 80 TB of additional space, using hard drives of 16 TB each. Perfectly compatible with several Synology models, DX517 offers simple and efficient integration, allowing users to increase their storage capacity without complications.

The installation is fast and simple thanks to its plug and play connection system. Connect the DX517 to your diskstation through an esata cable, and you will be ready to enjoy additional storage in minutes. This expansion unit also has an efficient refrigeration system, which maintains an optimal operating temperature, thus ensuring the integrity of your data.

DX517 is perfect for users who handle large volumes of information, such as photographers, videographers or companies that require safe and scalable storage. In addition, its Rack assembly design makes it ideal for professional environments where space is limited, without sacrificing performance.

With the DX517, you not only get more space, but also the peace of mind of knowing that your data is protected and accessible. Expand your diskstation and enjoy flexible and sure storage that grows with you and your needs. It is the perfect choice for those who seek reliable and high quality storage.

Technical Specifications

• Synology Brand
• Model DX517
• Features Compatible Models
• DS1817+
• DS1618+
• DS1517+
• DS918+
• DS718+
• DS1817
• DS1517
• NVR1218
• Storage
• Drive Bay(s): 5
• Compatible Drive Type:
• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD
• Maximum Internal Raw Capacity: 60 TB (12 TB hard drive x 5) (capacity may vary by RAID type)
• Hot Swappable Drive:
• RAID Management via Synology DSM:
• External Ports
• eSATA port: 1
• Appearance
• Dimensions (Height x Width x Depth): 157 mm x 248 mm x 233 mm
• Weight: 3.91 kg
• Power
• Power Recovery: Synchronized with Synology DiskStation
• Power Supply / Adapter: 200W
• Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 29.9 W (Access)
• 2.4 W (Hard Drive Hibernation)
• Temperature
• Operating Temperature: 5°C to 40°C (40°F to 104°F)
• Storage Temperature: -10°C to 70°C (15°F to 155°F)
• Relative Humidity: 5% to 95% RH
• Certification
• FCC
• CE
• BSMI
• Others
• System Fan: 80 mm x 80 mm x 2 pcs
• Easy System Fan Replacement:
• Noise Level: 21.5 dB(A)
• Content
• Main Unit X 1
• Accessories Pack X 1
• AC Power Cord X 1
• Expansion Cable: eSATA X 1
• Quick Installation Guide X 1
• Revision Date 10-09-2018 by MSB
