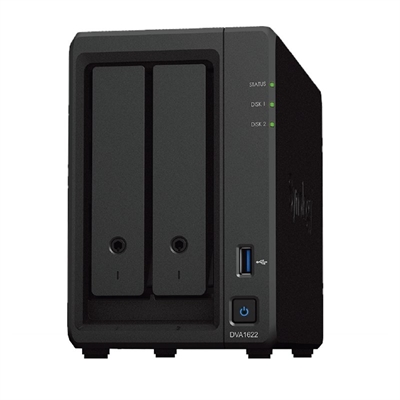

Synology DVA1622 NVR 2Bay 4K AI

Discover the Synology DVA1622 NVR 2Bay 4K IA , an innovative digital recorder designed to offer maximum efficiency in surveillance and video management. With artificial intelligence capabilities, this device allows intelligent monitoring and real -time video analysis, guaranteeing the safety of your spaces. Surveillance efficiency.

Technical Specifications

• Brand Synology
• Model DVA1622
• Software File System
• Internal: Btrfs, ext4
• External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
• Storage Management
• Maximum individual volume size: 108 TB
• Maximum number of system snapshots: 65,536
• Maximum number of internal volumes: 64
• File Sharing Services
• Maximum number of local user accounts: 2,048
• Maximum number of local groups: 256
• Maximum number of shared folders: 512
• Maximum number of simultaneous SMB/NFS/AFP/FTP connections: 100
• Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1
• Others
• Privileges: Windows® Access Control List (ACL) and application privileges
• Directory services: Connects with Windows® AD/LDAP servers, allowing domain users to log in via SMB/NFS/AFP/FTP/File Station with their existing credentials
• Security Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, automatic login blocking, support for Let’s Encrypt and HTTPS (custom cipher suites)
• Hardware CPU
• Intel™ Celeron J4125 4-core (4 threads) at 2.0 GHz, turbo up to 2.7 GHz
• Hardware encryption engine: AES-NI
• Memory
• 6 GB DDR4 memory (2 GB + 4 GB)
• Storage
• Supported drive types: 2 x 3.5″ SATA HDDs (drives not included)
• Hot-swappable drives
• External Ports
• External ports
• 2 x USB 3.2 Gen 1 ports
• 1 x HDMI
• LAN ports: 1 x 1 GbE RJ-45
• Others
• Wake on LAN/WAN
• Scheduled power on/off
• System fans: 1 (92 x 92 x 25 mm)
• AC input power voltage of 100 to 240 V AC
• Power frequency: 50/60 Hz, single-phase
• Other Characteristics Appearance
• Form factor: Desktop
• Size (H x W x D) 166 x 106 x 223 mm
• Weight 1.51 kg
• Environment
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating relative humidity: 8% to 80% RH
• Storage temperature: -20 °C to 60 °C (-5 °F to 140 °F)
• Storage relative humidity: 5% to 95% RH
• Maximum operating altitude 5000 m (16,400 ft)
• Certification
• Complies with regulations: RoHS
• Package Contents
• Main unit of the DVA1622
• Accessory package
• 1 AC power adapter
• 1 AC power cord
• 1 RJ-45 LAN cable
• Quick installation guide
• Revision Date 16-05-2022 by MPM
