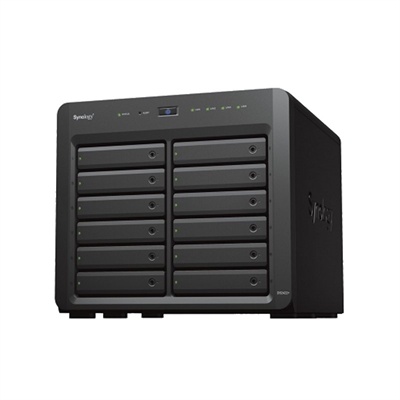

Synology DS2422+ NAS 12Bay Desktop Disk Station

The Synology DS2422+ is a powerful desktop NAS Disco station designed to meet the storage and management needs of advanced companies and users. With capacity for up to 12 disc units, this device offers exceptional flexibility in storage configuration, allowing the combination of HDD and SSD to optimize performance and capacity.

Equipped with an AMD Ryzen four -core processor and 4 GB of RAM, expandable up to 32 GB, the DS2422+ offers agile and efficient performance, ideal for virtualization tasks, synchronization of files and backups. Its 64 -bit architecture guarantees a fluid management of multiple tasks, which makes it a robust solution for business environments.

The DiskStation Manager (DSM) operating system provides an intuitive and rich interface, facilitating file management, application implementation and data safety. With support for Raid, you can choose between different configurations that adapt to your redundancy and performance needs.

In addition, the DS2422+ has expansion options that allow to add up to 24 additional units through Synology expansion units, ensuring that your storage solution can grow along with your business. Connectivity is another of its strengths, with multiple USB ports and an Ethernet port of 2.5gbe, which ensures rapid and reliable transfers.

In summary, the Synology DS2422+ NAS is the ideal solution for those looking for a scalable, safe and high performance storage, backed by Synology’s reliability and innovation.

Technical Specifications

• Synology DiskStation DS2422+ is a compact 12-bay desktop NAS that enables file sharing and management to the next level. The unit can be scaled up to 24 bays and excels in serving large data sets in multi-user environments. It comes with powerful file management, surveillance, and backup capabilities, and can serve as high-quality video and VM storage. With support for up to 32 GB of memory, NVMe SSD cache, and 25 GbE network cards, the DS2422+ is ready for large-scale commercial applications.
• Brand Synology
• Model DS2422+
• CPU – AMD Ryzen™ V1500B quad-core 2.2 GHz
• Memory – 4 GB DDR4 ECC SODIMM (expandable to 32 GB with 2 x D4ES01-16G)
• Storage – Maximum single volume size: 108 TB
• Maximum system snapshot number: 65,53611
• Maximum internal volumes: 64
• Connections – 2 USB 3.2 Gen 1 ports
• 1 x expansion port (Mini-SAS HD)
• Features – LAN ports: 4 x 1GbE RJ-45
• Wake on LAN / WAN
• Scheduled start-up / shut-down
• System fans: 2 x (120 x 120 x 25 mm)
• Input power voltage: 100 V to 240 V AC
• Power frequency 50/60 Hz, single-phase
• Operating temperature 0 ° C to 40 ° C (32 ° F to 104 ° F)
• Storage temperature -20 ° C to 60 ° C (-5 ° F to 140 ° F)
• Relative humidity 5% to 95% RH
• Maximum operating altitude 5,000 m (16,400 feet
• PCIe Expansion
• 1 x 8-width, Gen 3.0 x4 lane slot
• Supports network interface cards, 3 M.2 NVMe SSD cache adapter cards, and 4 combined cards
• Dimensions
• Dimensions (H x W x D) 270 x 300 x 340 mm
• Weight 9.5 kilograms
• Revision Date 20-10-2021 by YMC
