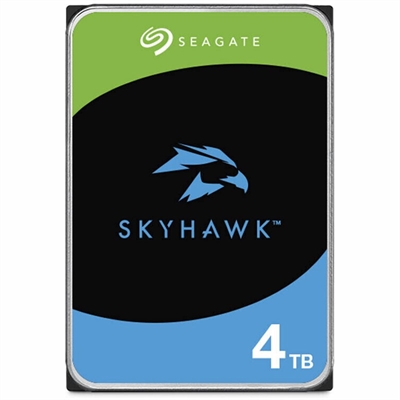

Seagate SkyHawk ST4000VX016 4TB 3.5″ SATA3

The Seagate Skyhawk St4000VX016 is a 4TB hard drive designed specifically for surveillance and security systems. With a 3.5 -inch format and SATA3 technology, this hard drive offers exceptional performance and unparalleled reliability, ideal for recording and storing large volumes of video data.

One of Skyhawk’s most outstanding features is its ability to withstand heavy work loads. With a writing rate up to 180 TB per year, it is perfect for environments that require continuous and high definition recordings. Thanks to its surveillance optimization technology, this hard drive can handle multiple video flows at the same time, which makes it the ideal option for security camera systems.

In addition, Seagate Skyhawk has the ability to operate at temperatures up to 70 degrees Celsius, which ensures its durability and performance in demanding conditions. Its design includes a vibration mitigation technology that helps maintain data integrity, reducing the risk of failures and prolonging the life of the disc.

The installation of the Skyhawk is simple and is compatible with most video recording systems and market security cameras. With its 4TB capacity, you can store a lot of recordings without worrying about space. In summary, Seagate Skyhawk St4000VX016 is a reliable and effective solution for those looking for a high -performance hard drive for surveillance systems.

Technical Specifications

• Brand Seagate
• Model ST4000VX016
• Performance Features
• Capacity: 4 TB
• SkyHawk Health Management included
• Interface: SATA at 6 Gb/s
• Recording technology: CMR
• Drive design (air or helium): Air
• Performance
• Supported drive bays: Up to 16
• Supported cameras: Up to 64
• RV sensors
• Max. sustained OD transfer speed (MB/s): 180MB/s
• Cache (MB): 256
• Reliability
• Deterioration resistant
• Load/Unload cycles: 600,000
• Maximum non-recoverable read error rate: 1 per 10E14
• Operating hours (per year): 8,760
• Workload limit (WRL): 180
• *SkyHawk surveillance drives are designed for continuous workload of 180 TB/year. For workloads with more transactions, see Seagate’s enterprise-class drive offerings.
• Mean time between failures (MTBF): 1,000,000h
• Power Management
• Typical startup current (12 V, A): 1.8
• Average operating power: 3.7W
• Average idle: 2.5 W
• Standby/sleep mode, typical (W): 0.25/0.25
• Voltage Tolerance, Inc. Noise (5V / 12V): ±5 %/±10 %
• Environmental
• Operating temperature (°C min. ambient): 0
• Operating temperature (°C max. reported for the unit): 65
• Nonoperating temperature (ambient min): -40
• Dimensions
• 20.2 x 101.6 x 146.99 mm
• Weight (g/lb, typical): 630 g
• Revision date 13-04-2023 by RTY
