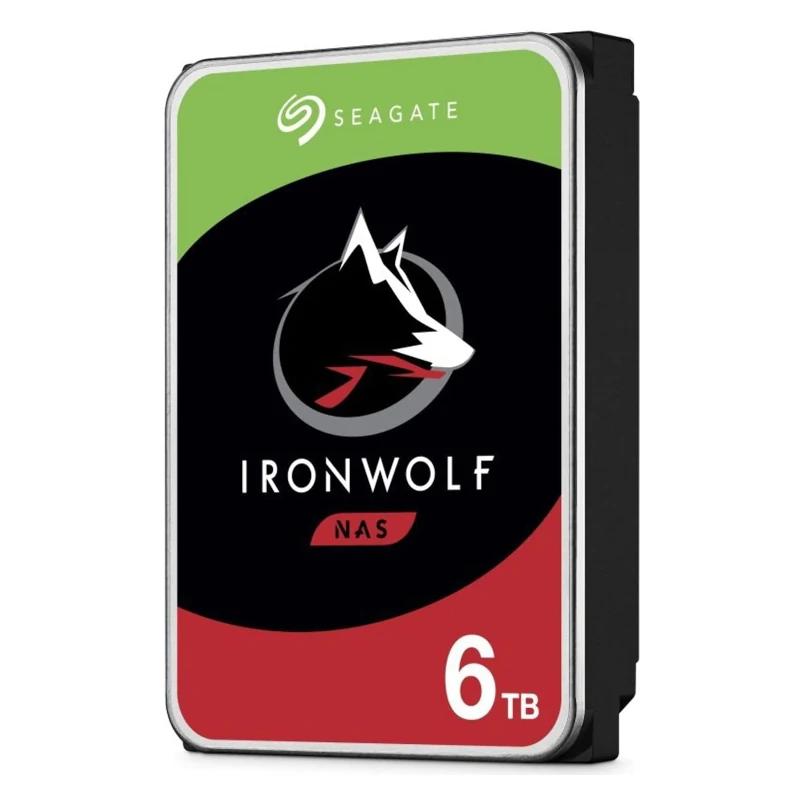

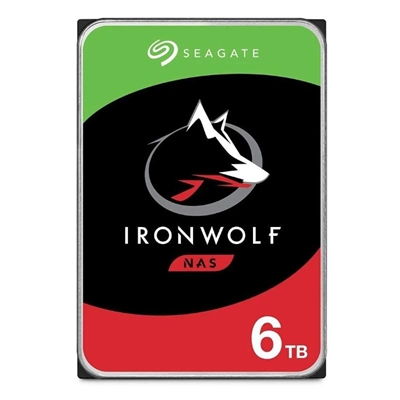

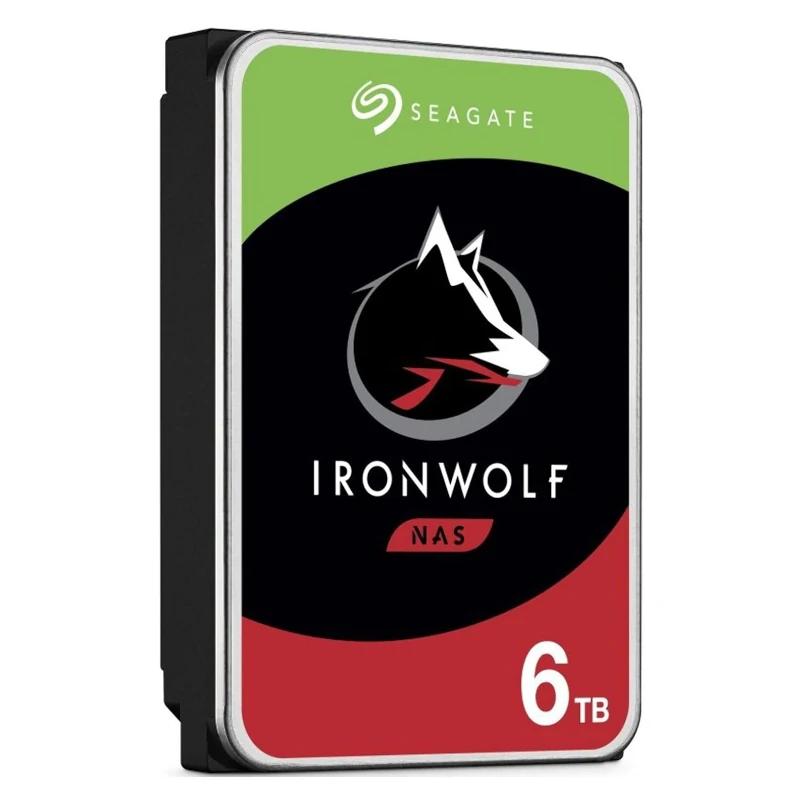

Seagate IronWolf NAS ST6000VN006 6TB 3.5″ SATA3

The Seagate Ironwolf NAS ST6000VN006 is a 6TB hard drive designed especially for network storage environments (NAS). With a generous capacity, this device allows users to store a large amount of data, from multimedia files to important backups, all in one place.

With a size of 3.5 inches and a SATA3 interface, Ironwolf is optimized to offer exceptional performance in NAS systems that require continuous access to data. Its rotation speed of 7200 rpm and a 256 MB cache guarantee rapid response times and fluid performance, which makes it an ideal option for both domestic users and small and medium enterprises.

Agilearray technology of Seagate Ironwolf ensures that the album is designed to function in a RAID environment, offering greater reliability and availability. In addition, it has vibration sensors that help maintain performance in heavy load conditions, which means that you can trust its operation even in configurations with multiple units.

This hard drive is also equipped with a limited guarantee of 3 years, which provides tranquility to users to know that their investment is protected. With the Seagate Ironwolf NAS ST6000VN006, he experiences the perfect combination of capacity, performance and reliability, making it the ideal choice for those who require robust and efficient storage in their NAS systems.

Technical Specifications

• Brand Seagate
• Model ST6000VN006
• Performance Features
• Capacity: 6 TB
• Interface: SATA at 6 Gb/s
• Supported drive bays: 1 to 8 bays
• Recording technology: CMR
• Drive design (air or helium): Air
• Workload limit (WRL): 180
• Rotational Vibration Sensors (VG)
• Dual-plane balancing
• Error recovery control
• Max. sustained OD transfer speed (MB/s): 202MB/s
• Rotation speed (rpm): 5,400
• Cache (MB): 256
• Reliability
• Load/Unload cycles: 600,000
• Maximum non-recoverable read error rate: 1 per 10E14
• Operating hours (per year): 8,760
• Mean time between failures (MTBF, hours): 1,000,000
• Power Management
• Typical startup current (12 V, A): 1.8
• Average operating power consumption: 5.3
• Average idle power consumption (W): 4 W
• Standby/sleep mode, typical (W): 0.25/0.25
• Voltage Tolerance, Inc. Noise (5V / 12V): ±5 %/±10 %
• Environmental
• Operating temperature (°C min. ambient): 0
• Operating temperature (°C max. reported for the unit): 65
• Nonoperating Temperature (ambient, min / max °C): -40/70
• Shock tolerance, operating/non-operating: 2 ms (max): 80 Gs/300 Gs
• Acoustics, idle (typical, measured in idle state 1) (dBA): 25
• Acoustics, seek (typical) (dBA): 26
• Dimensions
• 26.11 x 101.85 x 146.99 mm
• 630 g
• Revision date 25-01-2024 by RTY
