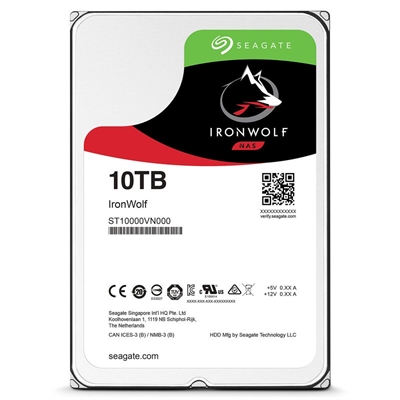

Seagate IronWolf NAS ST10000VN000 10TB 3.5″ SATA3

The Seagate Ironwolf NAS ST10000VN000 is a 10TB hard drive designed specifically for network storage systems (NAS), offering a robust and reliable solution for those who seek to maximize the performance and capacity of their data infrastructure. With its 3.5 -inch format and SATA3 connection, this unit is ideal for small and medium enterprises, as well as for storage enthusiasts that require rapid and efficient access to large volumes of information.

Seagate Ironwolf technology is optimized for NAS environments, allowing continuous operation and simultaneous access of multiple users. Its design includes characteristics such as Agilearray technology, which improves storage management and optimization of RAID settings, guaranteeing higher performance and greater reliability. With a rotation speed of 7200 rpm and a 256 MB buffer, the Ironwolf ST10000VN000 provides rapid and stable data transfers, which makes it an excellent option for streaming applications, backup copies and storage of large files.

In addition, this unit has rotational vibration sensors that help maintain performance, even in multiple bay systems. Its 10TB capacity allows you to store a vast amount of data, from high definition videos to large databases, ensuring that you always have enough space for your needs. With a 3 -year limited guarantee, the Ironwolf NAS ST10000VN000 is a safe investment for any user to combine capacity, performance and durability in its storage system.

Technical Specifications

• Brand Seagate
• Model ST10000VN000
• Features Performance
• Capacity: 10 TB
• Interface: SATA up to 6 Gb/s
• Supported drive bays: 1 to 8 bays
• Recording technology: CMR
• Drive design (air or helium): Air
• Workload rate limit (WRL): 180
• Rotational vibration sensors (VG)
• Dual-plane balancing
• Error recovery control
• Max. sustained transfer rate OD (MB/s): 210MB/s
• Spin speed (rpm): 7,200
• Cache (MB): 256
• Reliability
• Load/unload cycles: 600,000
• Maximum unrecoverable read error rate: 1 in 10E15
• Operating hours (per year): 8,760
• Mean time between failures (MTBF, hours): 1,000,000
• Power management
• Typical start current (12 V, A): 1.8
• Average operating power consumption: 10.1
• Average idle power consumption (W): 7.8 W
• Typical standby/sleep mode (W): 1/1
• Voltage Tolerance, Inc. Noise (5V / 12V): ±5 %/±10 %
• Environmental
• Operating temperature (°C min. ambient): 0
• Operating temperature (°C max. reported for the drive): 65
• Nonoperating Temperature (ambient, min / max °C): -40/70
• Shock tolerance, operating/non-operating: 2 ms(maximum): 70 Gs/300 Gs
• Acoustics, idle (typical, measured in idle state 1)(dBA): 28
• Acoustics, seek (typical) (dBA): 32
• Dimensions
• 26.11 x 101.85 x 146.99 mm
• Weight (g/lb, typical): 720 g
• Revision date 29-03-2023 by RTY
