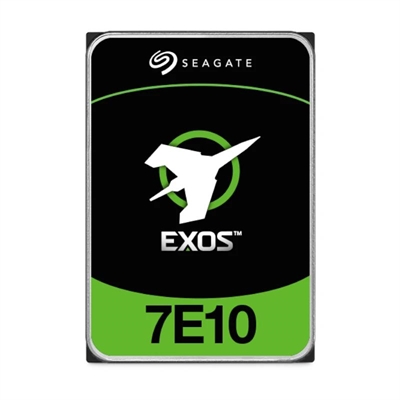

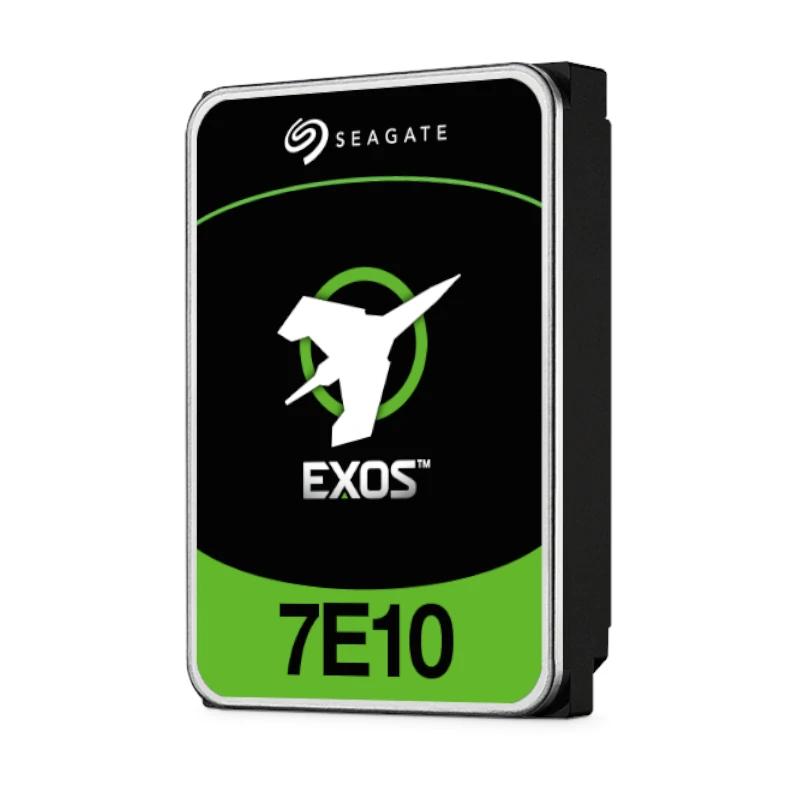

Seagate Exos 7E10 10TB 3.5″ SATA SATA 512E/4KN

The seagate exos 7e10 of 10TB is a high capacity storage solution designed to meet the demands of data centers and business environments. This 3.5 -inch hard drive uses the SATA interface, guaranteeing a versatile and efficient connectivity. With a rotation speed of 7200 rpm, it offers exceptional performance that allows rapid access and fluid data transfer, ideal for critical applications that require high performance.

The latest generation magnetic recording technology, combined with its 10TB capacity, provides wide space to store large volumes of data, from databases to multimedia files. In addition, exos 7e10 is designed to maximize reliability and durability, with a workload rate of up to 550 TB/year, which makes it a robust option for operations 24/7.

This hard drive also has advanced thermal and energy management features, which helps reduce consumption and prolong the life of the device. Its optimized design for data density allows multiple units to integrate efficiently into the same system, facilitating scalability and flexibility in storage configuration.

With a five -year limited guarantee, the Seagate Exos 7E10 is a safe investment for any company that seeks a reliable and high performance storage solution. Take the opportunity to improve your data infrastructure with this hard drive, which combines capacity, speed and efficiency in a single product.

Technical Specifications

• Brand Seagate
• Model ST10000NM017B
• Features – Capacity: 10 TB
• Super parity
• Reduced halogen level
• PowerChoice technology
• PowerBalance technology
• Multi-segment cache: 256 MB
• Advanced write cache storage (8M internal NOR flash)
• Reliability
• Vibration, non-operational: from 10 Hz to 500 Hz (Grms): 5
• Mean time between failures (MTBF, hours): 2,000,000
• Reliability rate with uninterrupted operation (AFR): 0.44%
• Unrecoverable read errors per bits read: 1 sector per 10E15
• Power-on hours per year (uninterrupted): 8,760
• Sector size 512e (bytes per sector): 512
• Performance
• Spin speed (rpm): 7,200 rpm
• Interface access speed (Gb/s): 6.0, 3.0, 1.5
• Max sustained transfer speed OD: 263MB/s
• Average latency time (ms): 4.16
• Interface ports: Simple
• Rotational vibration at 1,500 Hz (rad/s²): 12.5
• Power consumption
• Average idle A (W): 7.8 W
• Typical operation, random read (W): 11.8
• Power requirements: +12 V and +5 V
• Environmental
• Operating temperature (°C): 5 °C – 60 °C
• Operational shock tolerance: 2 ms (read/write) (G): 70/40 G
• Non-operational shock tolerance 2 ms (G): 150/300
• Dimensions and weight
• 26.1 x 101.85 x 147 mm
• 720 g
• Review date 25-06-2024 by RTY
