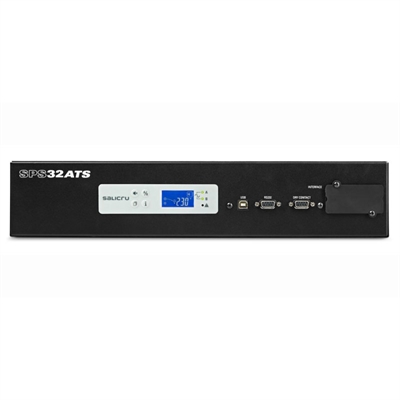

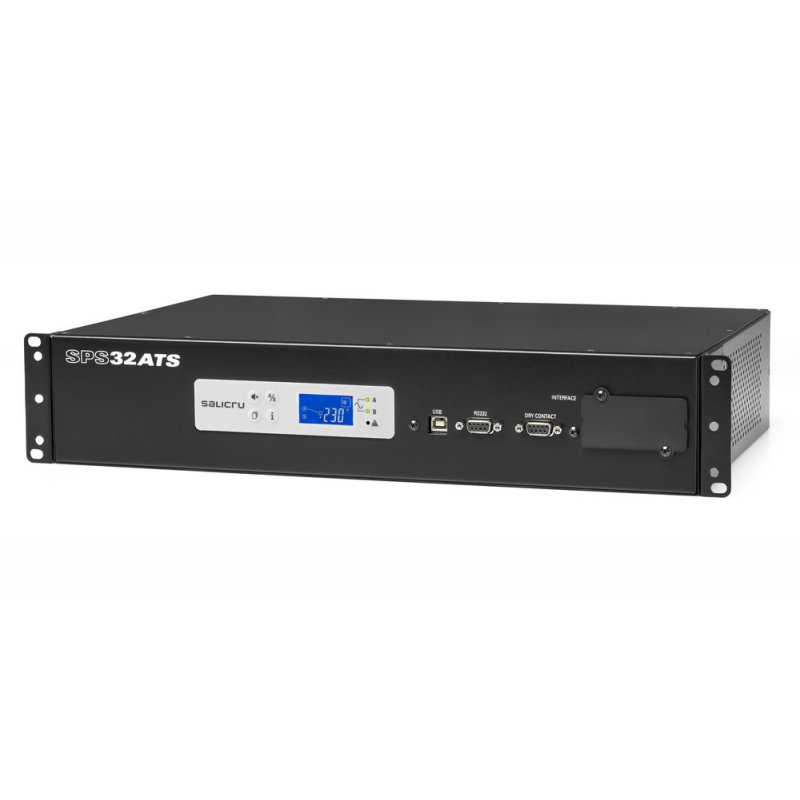

Salicru SPS 32 ATS

Discover the Salicru SPS 32 ATS , a high quality UPS accessory that guarantees the energy continuity of your devices. This model is ideal for protecting your critical equipment against power outages and fluctuations, ensuring optimal performance at all times. Installation: fast and simple configuration for your comfort.

Technical Specifications

• Ideal solution for powering critical loads through two UPS
• The SPS ATS series from Salicru is an automatic switch between two single-phase AC power lines that, starting from two sine wave power lines, supplies output voltage to the load(s). The switching can be automatic or manual. The LCD display along with the status LEDs continuously inform about the equipment’s status, operating mode, and the values of the main measurements.
• It has extensive communication possibilities through the USB, RS-232 interfaces, and built-in potential-free contacts, or the optional inclusion in an SNMP platform. Additionally, through the available parameterization software, parameters such as delays, overload level, voltage and frequency margins, line sensitivity, programming of potential-free contacts, etc., can be programmed.
• Brand Salicru
• Model 658CB000002
• Technical specifications Input
• Nominal voltage: 200 / 208 / 220 / 230 / 240 V
• Voltage range: 150 ÷ 300 Vac
• Nominal frequency: 50 / 60 Hz
• Output
• Nominal voltage: 200 / 208 / 220 / 230 / 240 V
• Nominal current (A): 32 A
• Efficiency: >99%
• Output Protection: Overload
• Indicators
• Information: Source A, Source B, Failure, Overload, Alarm, Acoustic alarm silencer
• Monitoring software: Yes, for Windows OS
• Type: LCD + LEDs
• Values: Voltage, Current, Frequency, % load, Error code
• Communication Interface: RS-232, USB, and potential-free contacts

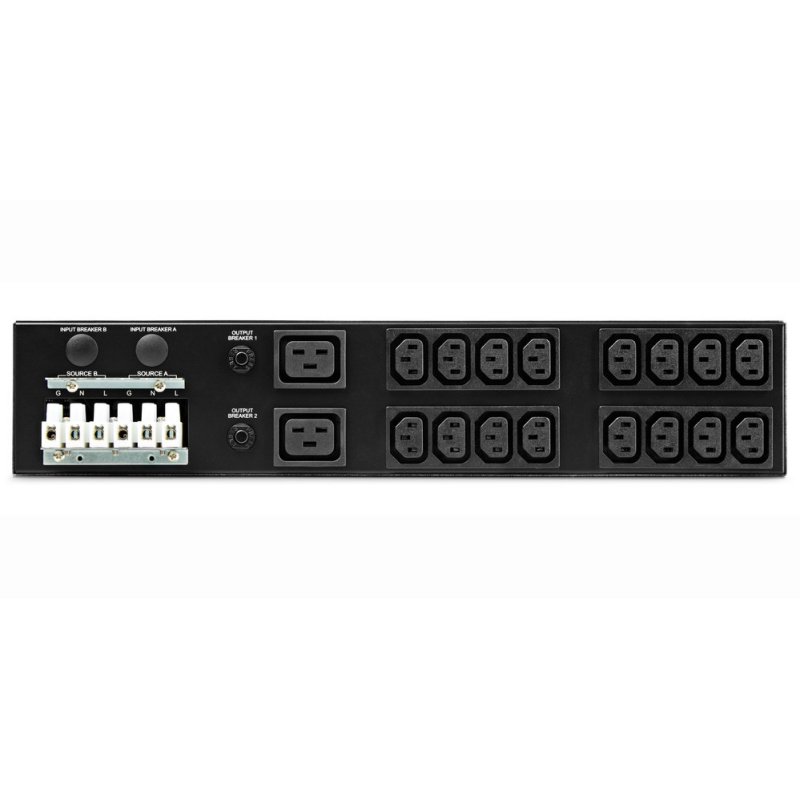

• Connections
• Input: Terminals
• Output: 16x IEC C13 + 2x IEC C19
• Other characteristics – Dimensions: Depth 275 x Width x 438 x Height 88 mm
• Weight: 6kg
• Operating temperature: 0ºC – +40ºC
• Relative humidity: Up to 95%, non-condensing
• Maximum operating altitude: 2,400 m.a.s.l.
• Regulations
• Safety: IEC-60950-1
• Electromagnetic compatibility (EMC): EN-55022; EN-55024
• Quality and Environmental Management: ISO 9001 & ISO 14001
• Review date 23-02-2021 by MPM
