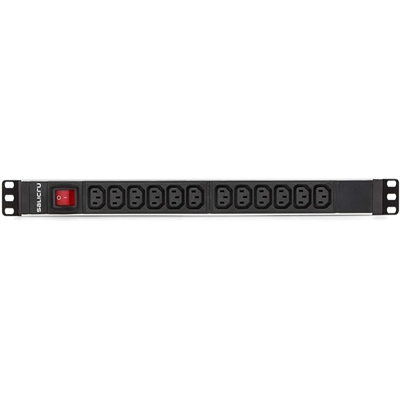

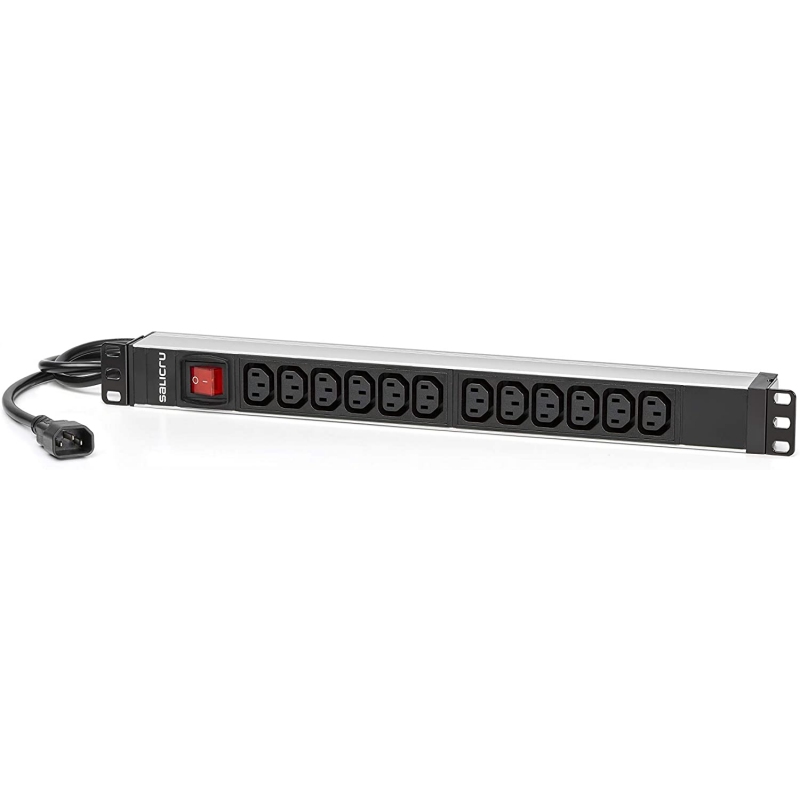

Salicru SPS 12F.PDU C13/C14

Discover the Salicru SPS 12F.PDU C13/C14, a high-quality power strip designed to offer a reliable and efficient solution for power distribution in professional environments. With multiple outlets, this power strip is ideal for office equipment, servers, and electronic devices that require secure power management.

• High load capacity: Supports multiple devices without compromising safety.
• Compact design: Perfect for reduced spaces and easy to install.
• Overload protection: Ensures the safety of your electronic equipment.
• Versatile connectivity: Equipped with several C13/C14 outlets to adapt to different devices.

Technical Specifications

• The Power Distribution Units (SPS PDU) from Salicru are designed to distribute power from an UPS (Uninterruptible Power Supply), a generator, or the grid to multiple devices, such as network racks and servers in data centers and computer rooms.

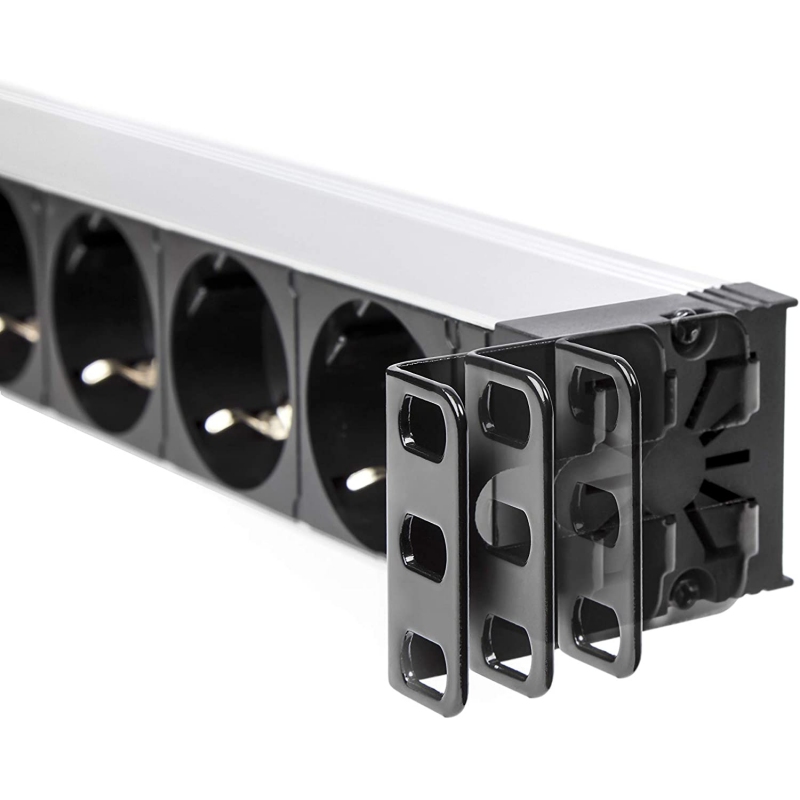

• The SPS PDU models incorporate a power switch with illumination and a protective cover to prevent unwanted actions. The available types of sockets are schuko, IEC, UK, and combinations among them. The casing is made of aluminum, which provides robustness while also being lightweight. The multiposition system allows the installation of mounting brackets in multiple combinations, both in depth (6 positions) and tilt (5 positions).
• The entire range is in 1U format of 19” with options for horizontal or vertical installation in the rack.
• Features
• 1U aluminum profiles – 19″.
• Ease of installation and connection.
• Multiple positions in depth (6 positions).

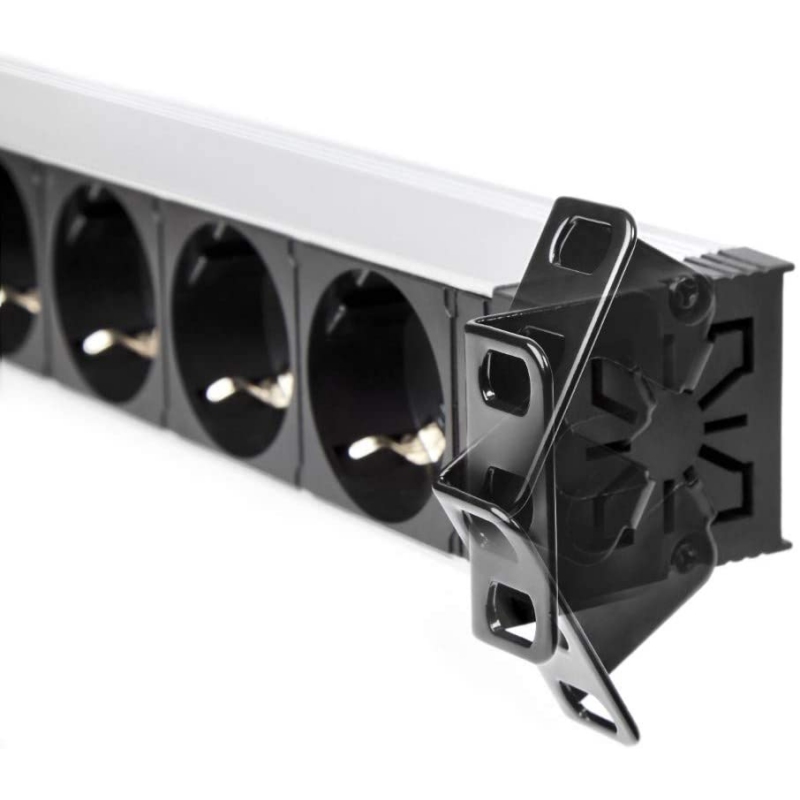

• Multiple tilt positions (90º / 45º / 0º / -45º / -90º).
• Illuminated power switch.
• Power supply at 250 V AC – 50/60 Hz.
• Schuko, UK, and IEC sockets available and combinable.
• Protective cover for the power switch.
• Other configurations available on request.
• Vertical or horizontal installation.
• Quality connection and maximum safety in the sockets.
• Brand Salicru
• Model 680CA000002
• Specifications – Nominal current (A): 10
• Nominal voltage / frequency 100 / 250 V AC – 50 Hz / 60 Hz
• Input socket type: IEC C14
• Socket type and quantity: IEC C13 (12)
• Power switch
• Power cable length (m): 1.5
• Child protection in the sockets
• LED indicators
• General
• Operating temperature: 0º C ÷ 50º C
• Storage temperature: -15º C ÷ 60º C
• Relative humidity: Up to 95%, non-condensing
• Maximum operating altitude: 2,400 m.a.s.l. (power degradation up to 5,000 m)
• Protection rating: IP20
• Installation: 3-position mounting brackets at 0º or ±45º
• Regulations
• RoHS Yes
• Safety: IEC 60950; DIN EN 50525-2-11; IEC 61058-1:2002/A2:2008
• Quality and Environmental Management: ISO 9001 and ISO 14001
• Dimensions and weight
• Dimensions (Depth x Width x Height): 51 × 443 × 44 mm
• Weight: 0.8 Kg
• Review date 24-04-2020 by MSB
