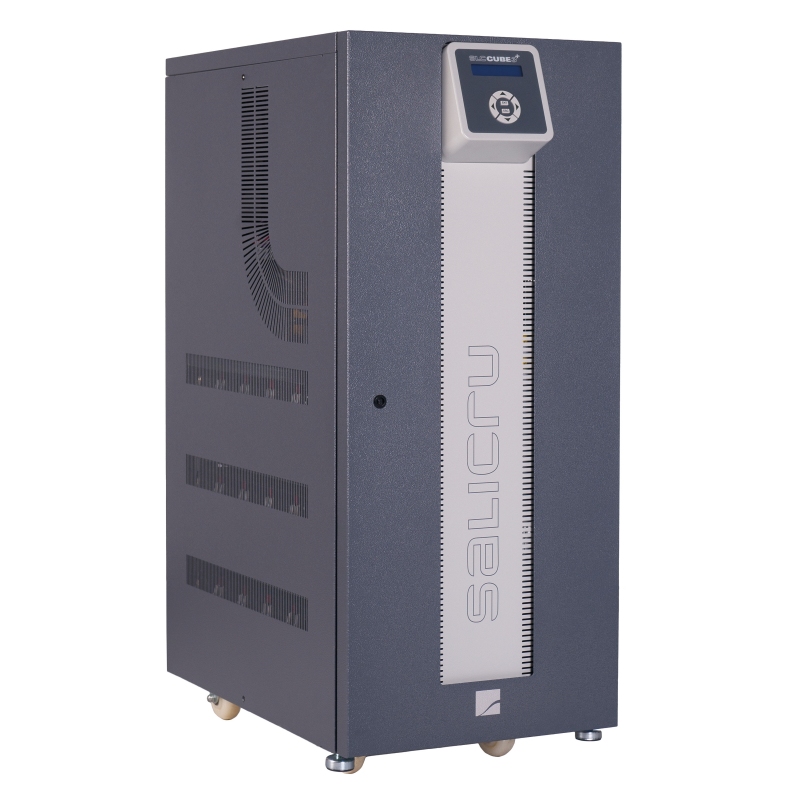

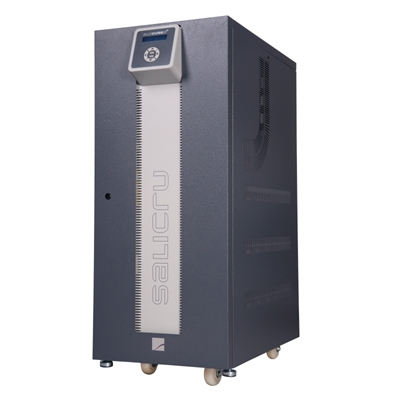

SALICRU SLC 50 CUBE3+ (62X12AH)
10 704,40 €
The SALICRU SLC 50 CUBE3+ (62X12AH) is the ideal energy solution for those looking for a reliable and efficient backup. With its 12Ah capacity and advanced protection, it guarantees a constant supply for your most important devices.
Shipping Cost & Delivery Time
Discover the SALICRU SLC 50 CUBE3+ (62X12AH), a superior quality energy solution designed to meet the needs of demanding users. This product from the renowned SALICRU brand is ideal for applications that require a reliable and efficient power supply. Thanks to its advanced technology, this system guarantees optimal performance and long life.
Its main features include:
- 12Ah capacity, providing a constant flow of energy.
- Compact design and easy to install, adapting to various environments.
- Ideal for use in offices, security systems, and sensitive electronic equipment.
- Protection against overloads and short circuits, ensuring the integrity of the connected equipment.
Recommended for those looking for a safe and efficient backup, the SALICRU SLC 50 CUBE3+ is the perfect choice to keep your devices running without interruptions. Don’t compromise the quality of your energy, choose SALICRU for a superior experience.
Specifications
| Brand | Salicru |
| Model | SLC 50 CUBE3+ (681LC-01+681BU-231) |
| Type | Tower or rack |
| Technology | – On-Line, double conversion, HF with dual DC bus |
| Input |
– Nominal voltage: Single-phase 120 / 127 / 220 / 230 / 240 V
Three-phase 3 x 208 / 3 x 220 / 3 x 380 / 3 x 400 / 3 x 415 V (3F + N) – Voltage range: +15% / -20% (configurable) – Nominal frequency: 50/60 Hz – Frequency range: ± 10% – Power factor: 1 from 10% load – Total harmonic distortion (THDi):
100% load: <1.5% / 50% load: <2.5% / 10% load: <6.0% |
| Output |
– Power factor: 0.9
– Nominal voltage: Single-phase 120 / 127 / 220 / 230 / 240 V
Three-phase 3 x 208 / 3 x 220 / 3 x 380 / 3 x 400 / 3 x 415 V (3F + N) – Voltage accuracy: ± 1% – Response time: 20 ms for load jumps 0%÷100% and voltage drop up to -5% – Maximum synchronization speed: 1 Hz/s to 10 Hz/s (programmable) – Total harmonic distortion (THDv): |
| Bypass | – Type and operation criteria: Solid state – Transfer time Mode: On-line: None Smart Eco-mode: 4ms (typical) – Transfer to bypass: Immediate, for overloads above 150% – Re-transfer: Automatic, after alarm disappearance |
| Manual bypass | – Yes (type: No interruption) |
| Battery | – Type (standard): Lead acid, sealed, maintenance-free – Charge voltage regulation: Batt-Watch |
| Communication | – Ports: 1 x RS232 / 485 with Modbus protocol + 1 USB (2) – Relay interface: 4 x AC failure, bypass, low battery and general – Free slots: 1, for SNMP/SICRES – Parallel connection: 2 x connectors |
| General | – Operating temperature: 0º C ÷ +40º C – Relative humidity: Up to 95%, non-condensing – Operating altitude: 2,400 m.a.s.l. – Acoustic noise at 1 meter: <52 dB(A) |
| Regulations | – Safety: EN-62040-1-2; EN-60950-1 – Electromagnetic compatibility (EMC): EN-62040-2 – Operation: VFI-SS-111 according to EN-62040-3 – Quality and Environmental Management: ISO 9001 and ISO 14001 |
| Dimensions | – 775 x 450 x 1100 – Weight: 185 Kg Battery – 775 × 450 × 1100 – Weight: 321 Kg |
| Power | – 50000 VA / 45000 W |
| Review date | 18-09-2019 by MSB |
Additional information
| Weight | 50,0 kg |
|---|
