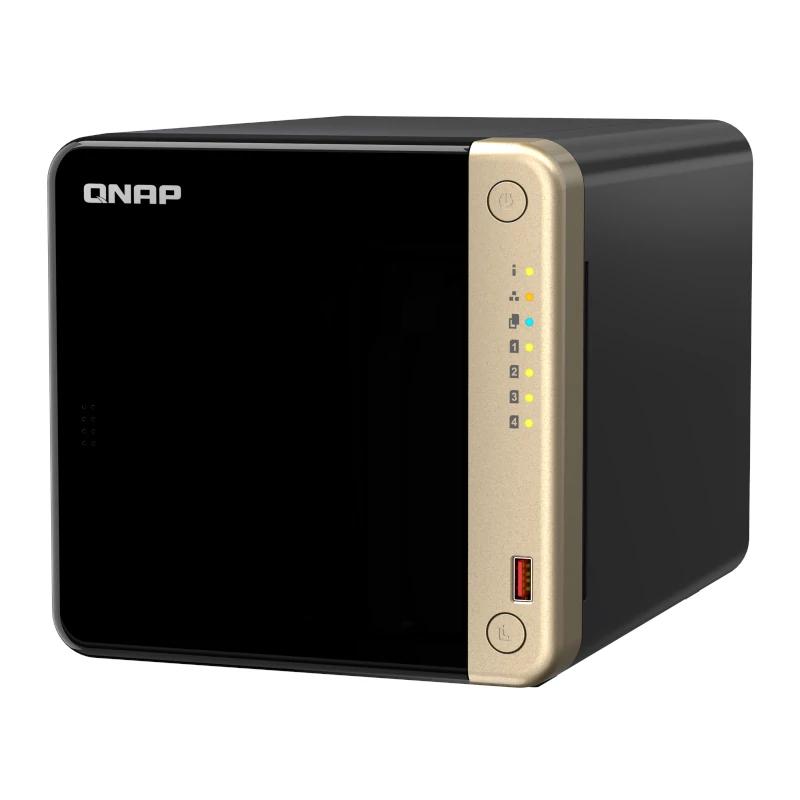

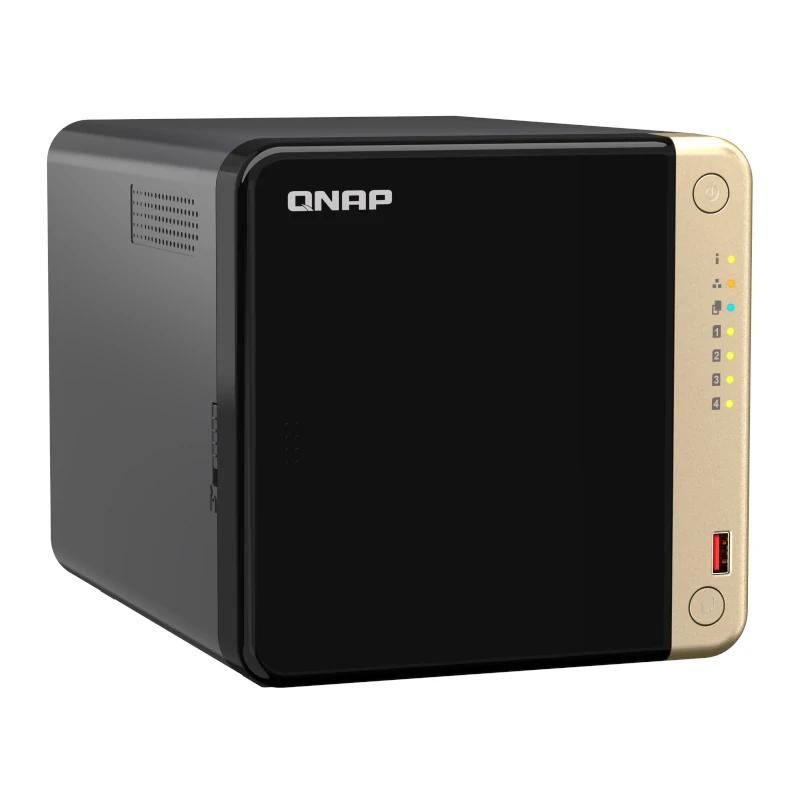

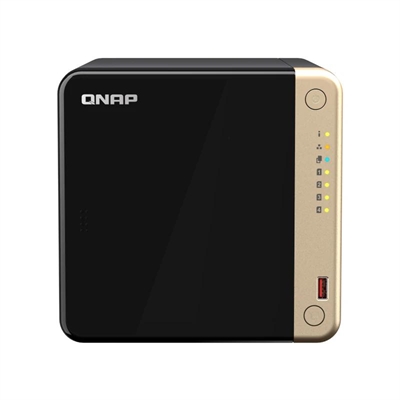

QNAP TS-464-8G NAS 4XHDD-Bay 2×2.5GbE 4xUSB

The QNAP TS-464-8G is a high-performance NAS server designed to meet the storage and data management needs of small and medium enterprises, as well as advanced users. With its ability to house up to 4 hard drives, this device offers a scalable and efficient solution for the storage of large volumes of information.

Equipped with a powerful Intel Celeron N5105 processor and 8 GB of RAM DDR4, the TS-464-8G guarantees a fluid and fast performance in all tasks. Its two 2.5GBE ports allow high -speed network connections, which translates into rapid and efficient data transfers, ideal for environments where the speed is crucial.

This NAS also has four USB ports, which facilitate the connection of external devices and allow quick and simple backup copies. The versatility of the QNAP TS-464-8G extends to its compatibility with various applications, including virtualization, file management, and surveillance solutions, which makes it a multifunctional tool for any office or home.

With an intuitive user interface and a QTS operating system that offers a wide range of functions, the configuration and management of the TS-464-8G are simple and accessible even for those who are not experts in technology. In addition, the option of implementing hybrid cloud solutions allows access to data from anywhere, guaranteeing unprecedented flexibility in information management.

The Qnap TS-464-8G is undoubtedly an intelligent investment for those who seek a robust, fast and versatile storage system.

Technical Specifications

• QNAP Brand
• Model TS-464-8G
• CPU – CPU: Four-core and four-thread Intel Celeron N5095 processor, up to 2.9 GHz
• CPU Architecture: 64-bit x86
• Graphics Processors: Intel UHD Graphics
• Floating Point Unit
• Encryption Engine: (AES-NI)
• Hardware-accelerated Transcoding
• Memory – System Memory: 8GB embedded memory (not expandable)
• Maximum Memory: 8GB
• Storage – Flash Memory: 4GB (dual-boot operating system protection)
• Drive Bay: 4 x SATA 3.5″ to 6Gb/s, 3Gb/s
• Drive Compatibility:
• 3.5″ SATA Hard Drives
• 2.5″ SATA Solid State Drives
• M.2 Slot: 2 x PCIe M.2 2280 Gen 3 x1 slots
• Hot-swappable
• SSD Cache Acceleration Support
• File System
• Internal Drives: EXT4
• External Drives: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
• Supported RAID Types
• 8-bay (and above): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
• 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
• 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
• 2-bay: JBOD, Single, RAID 0, 1
• Storage Management
• Maximum Single Volume Size: 250 TB
• Maximum Number of Internal Volumes: 128
• Maximum Shared Folder Size: 250 TB
• Maximum Number of Shared Folders: 512

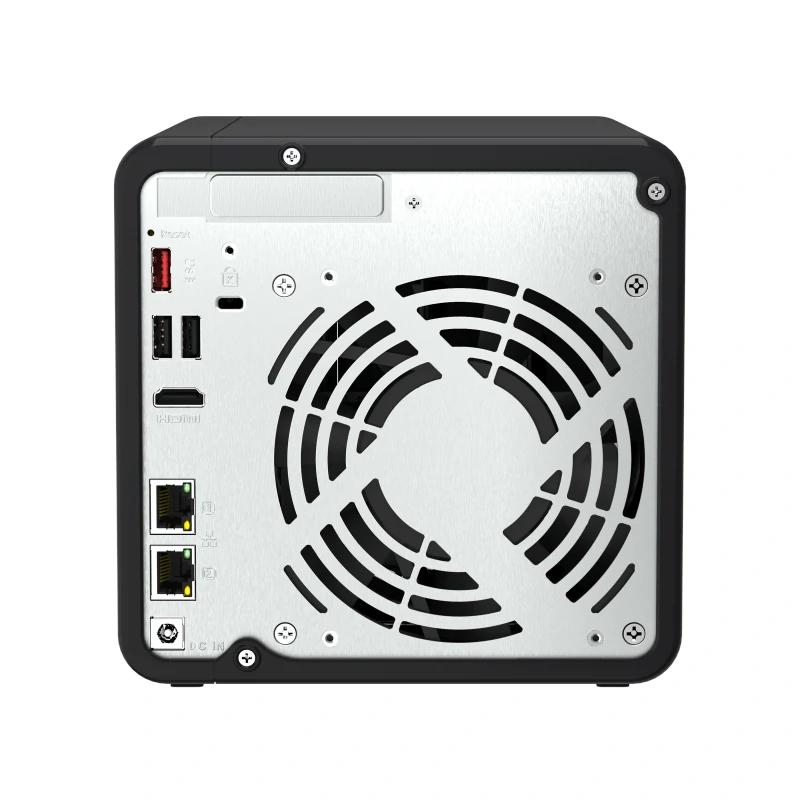

• Connections – 2 x 2.5 GbE (2.5G/1G/100M/10M)
• 2 x USB 2.0
• 2 x USB 3.2 Gen 2 Type-A ports
• 1 x HDMI 1.4b
• Features – Wake-on-LAN (WOL)
• Jumbo Frame
• File Server:
• File sharing for Windows, Mac, and Linux/UNIX
• Microsoft Networks (CIFS/SMB)
• Apple Networks (AFP)
• NFS version 3/4 services
• FTP Server:
• QuFTP
• FTP, SFTP, and TFTP protocols
• FTP over SSL/TLS (Explicit FTPS)
• FX Support
• Maximum FTP Connections: 1024
• File Station (Web)
• Object Storage
• Local User Account: 4096
• Local Group Account: 512
• Domain User/Group Account: 200,000
• Physical
• Format: 1U Rackmount
• LED Indicators: Power/Status, LAN, USB, Hard Disk Drive 1-4
• Buttons: Power, USB Copy, Reset
• Operating Temperature: 0 – 40 °C
• Storage Temperature: -20 – 70°C
• Relative Humidity: 5 ~ 95 % relative humidity non-condensing, wet bulb: 27 °C
• Power Supply: 90 W adapter, 100-240 V
• Power Consumption: Disk Hibernation Mode: 21,618 W
• Power Consumption: Operation Mode, typical: 40,536 W
• Fan: 2 x 40 mm, 12 V DC
• System Warning: Buzzer
• Max. Number of Concurrent Connections (CIFS) – with Max. Memory: 1500
• Dimensions and Weight
• Dimensions: 168 × 170 × 226 mm
• Weight (net): 2.26 kg
• Revision Date 11-04-2023 by RTY
