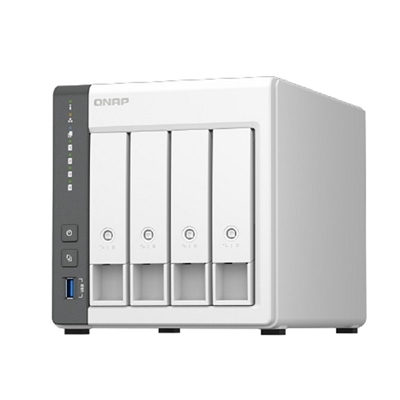

QNAP TS-433-4G NAS 4xHDD-Bay 1×2.5GbE+1xGbE

The QNAP TS-433-4G is a robust NAS system (Network Attached Storage) designed to meet the data storage needs of small and medium enterprises, as well as advanced users. With its ability to accommodate up to four hard drives, this device allows efficient management of large volumes of information, ideal for backups, file sharing and multimedia.

Equipped with a powerful four-core processor and 4 GB of RAM, the TS-433 provides exceptional performance in multitasking tasks. Its connectivity includes a 2.5GBE port and a Gigabit Ethernet port, guaranteeing a rapid and efficient data transfer, which makes it a perfect solution for environments where the speed is crucial.

The installation of the discs is simple thanks to their easily accessible bays, which allows users to customize their storage configuration according to their needs. In addition, the system is compatible with various RAID settings, offering flexibility and data management.

The QNAP TS-433-4G also comes with a set of software applications and tools that facilitate remote access and data synchronization. With their intuitive interface, users can configure and monitor their NAS easily. Either to store multimedia files, make backups or implement a surveillance solution, the TS-433-4G adapts to any requirement, providing a reliable and scalable storage solution.

Technical Specifications

• QNAP Brand
• Model TS-433-4G
• CPU – ARM 4-core Cortex-A55 2.0GHz processor
• Architecture 64-bit ARM
• Floating point unit
• Encryption engine
• Memory – Internal memory: 4 GB built-in, non-expandable
• Maximum memory: 4 GB built-in, non-expandable
• Flash memory: 4 GB (dual-boot operating system protection)
• Storage – Drive bay: 4 x 3.5″ SATA units at 6Gb/s, 3Gb/s
• Drive compatibility
• 3.5-inch bays: 3.5-inch SATA hard drives, 2.5-inch SATA solid-state drives
• Hot-swappable
• Connections – 1 x RJ45
• 1 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
• 2 x USB 2.0
• 1 x USB 3.2
• Features – Wake on LAN (WOL)
• Jumbo Frame
• Tower form factor
• LED indicators Status, LAN, USB, HDD1-2
• Fan 1 x 70 mm, 12 VCC
• Buttons Power, USB Copy, Reset
• System warning buzzer
• Kensington security slot: Yes
• max. Number of simultaneous connections (CIFS) – with Max. Memory: 200
• Environment
• Operating temperature: 0 ~ 40°C (32°F ~ 104°F)
• Storage temperature: -20 – 70°C (-4°F – 158°F)
• Relative humidity: 5 ~ 95 % relative humidity non-condensing, wet bulb: 27 °C (80.6 °F)
• Power
• Power supply: 90 W adapter, 100-240 V
• Power consumption: HDD Standby mode: 8.45 W
• Power consumption: operation mode, typical: 22.54 W
• Physical
• Dimensions (Height x Width x Depth): 169 × 160 × 219 mm
• Weight (net): 2.07 kg
• Weight (gross): 3.5 kg
• Revision Date 31-10-2024 by RTY
