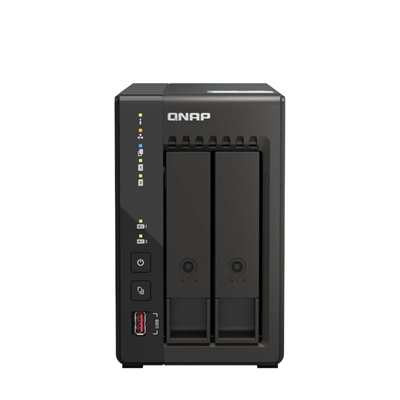

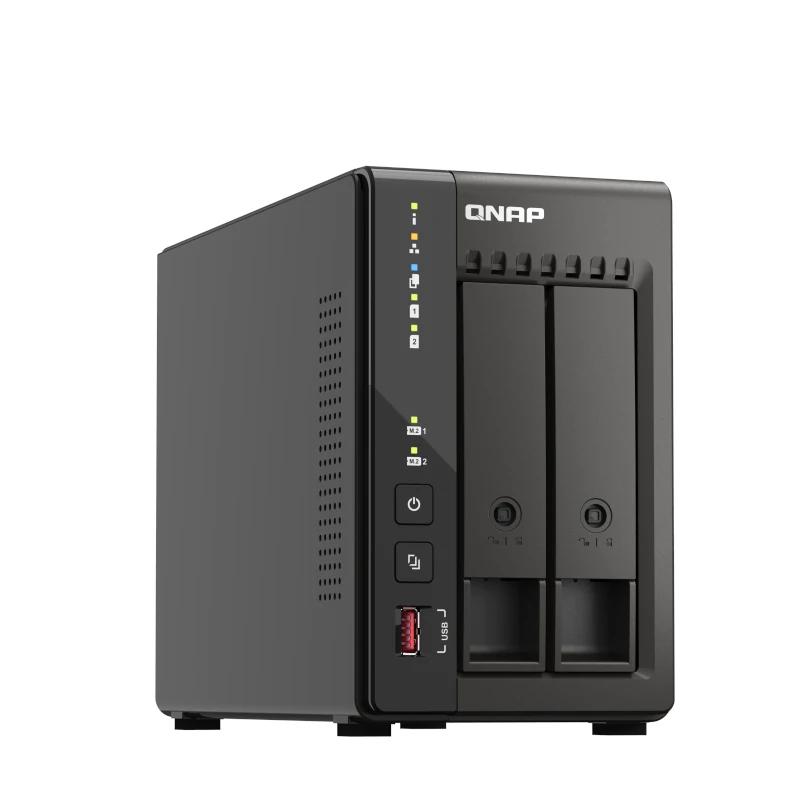

QNAP TS-253E-8G NAS 2-Bay 2×2.5GbE 4xUSB

The QNAP TS-253E-8G is a powerful NAS designed to meet the data storage and data management needs for both domestic users and for small and medium enterprises. With its elegant tower format and a robust chassis, this device has two bays for hard drives, allowing flexible and scalable storage capacity. Compatible with 2.5 -inch hard drives, you can choose between a variety of RAID settings to ensure the protection of your data.

Equipped with a four-core Intel Celeron processor and 8 GB of RAM DDR4, the TS-253E-8G offers exceptional performance, ideal for multitasking and the management of demanding applications. Its two 2.5GBE ports guarantee rapid and efficient connectivity, allowing rapid file transfers and a fluid streaming experience. In addition, it has four USB ports that facilitate the connection of external devices, such as additional printers or storage units.

This NAS is not only a storage center, but also offers a wide range of multimedia and productivity applications. With your QTS software, you can manage your files intuitively, make automatic backups and access your data from anywhere through the cloud. Compatibility with virtualization applications and the possibility of installing Docker containers make the QNAP TS-253E-8G a versatile solution for any work environment. With this NAS, you will have the peace of mind of knowing that your data is safe and accessible at all times.

Technical Specifications

• Qnap Brand
• Model TS-253E-8G
• CPU – CPU Model: Intel® Celeron® J6412 quad-core four-thread processor, up to 2.6 GHz
• CPU Architecture: 64-bit x86
• Floating Point Unit
• Encryption Engine
• Hardware-accelerated Transcoding
• Memory – System Memory: 8 GB embedded memory (not expandable)
• Maximum Memory Capacity: 8 GB
• Flash Memory: 4 GB (dual-system OS protection)
• Storage – Drive Bay: 2 x SATA 3.5″ 6Gb/s drives
• Drive Compatibility:
• 3.5″ SATA hard drives
• 2.5″ SATA solid-state drives
• Hot-swappable Drive

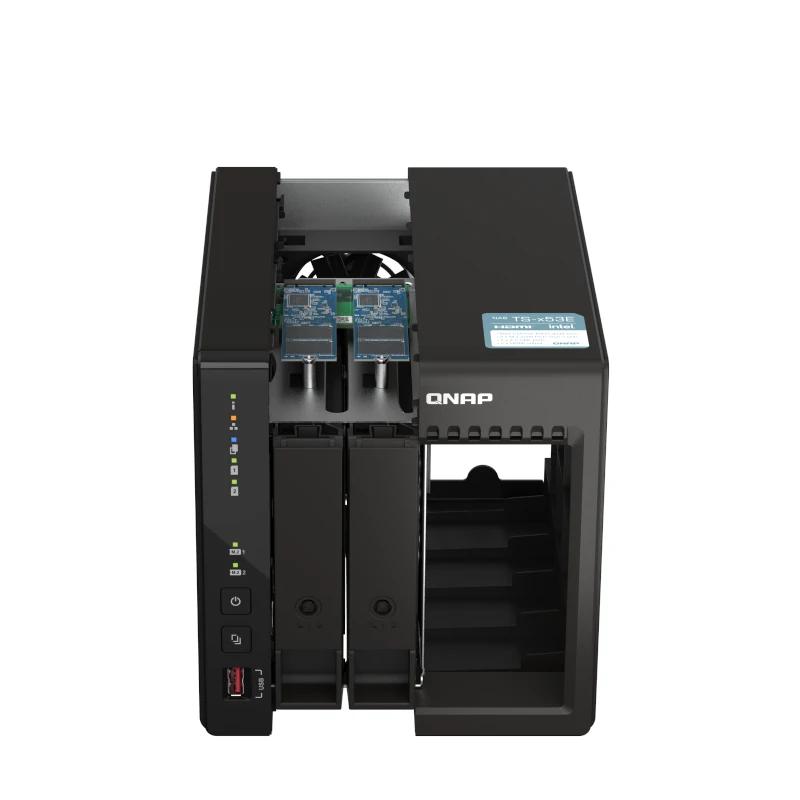

• M.2 Slot 2 x PCIe M.2 2280 Gen 3 x2 slots
• SSD Cache Acceleration Support

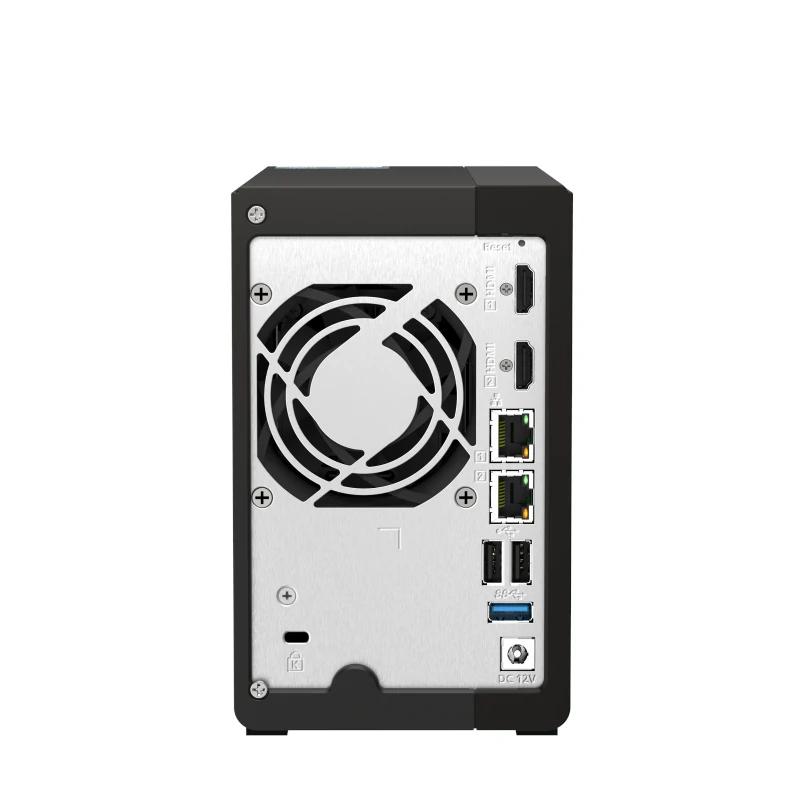

• External Ports – 2 x RJ-45 2.5 GbE ports (2.5G/1G/100M/10M)
• Wake-on-LAN (WOL)
• 1 x Jumbo Frame
• 2 x USB 2.0 ports
• 2 x USB 3.2 Gen 2 Type-A ports (10 Gbps)
• 2 x HDMI 1.4 ports (up to 3840 x 2160 at 30 Hz)
• Features – Form Factor: Tower
• Fan: 1 x 70 mm, 12 V DC
• LED Indicators:
• Power
• Status
• LAN
• USB
• Hard Disk Drive 1-2
• Buttons:
• Power
• Reset
• One-touch USB Copy
• System Warning: Beep
• Max. Number of Concurrent Connections (CIFS): 1500 with max. memory
• Kensington Security Slot
• Power
• Power Supply Unit: 60 W / 65 W 100-240 V adapter
• Power Consumption:
• Hard Disk Hibernation Mode 20.943 W
• Typical Operation Mode 24.238 W
• Temperature
• Operating Temperature: 0 – 40 °C
• Storage Temperature: -20 – 70°C
• Relative Humidity: 5 ~ 95 % relative humidity non-condensing, wet bulb: 27 ºC (80.6 ºF)
• Dimensions and Weight
• Dimensions: 168.5 × 102 × 225 mm
• Net Weight: 1.28 kg
• Gross Weight: 2.32 kg
• Package Contents
• TS-253E
• 1 x Ethernet cable
• 1 x Power cord
• Power adapter
• 2 x Flat-head screws (for M.2 SSD)
• 8 x Flat-head screws (for 3.5″ hard drive)
• 6 x Flat-head screws (for 2.5″ hard drive)
• Quick Installation Guide (QIG)
• 2 x Drive Bay Keys
• * Only use QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with the same specifications.
• Revision Date 22-03-2023 by RTY
