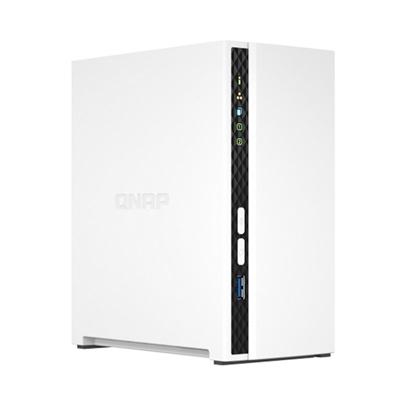

QNAP TS-233 NAS 2XHDD-Bay 1xGbE+1xUSB3.2

Discover the Qnap TS-233, a powerful NAS (Network Attached Storage) designed to meet the data storage and data management needs both in domestic environments and in small and medium enterprises. With its ability to house up to 2 hard drives, this device provides a flexible and scalable solution for file storage, backup and multimedia copies.

Equipped with a high performance processor and 2 GB of RAM, the TS-233 ensures a fluid and efficient operation, allowing quick access to your data. Its connectivity includes a 1 GBE Ethernet port and a USB 3.2 port, facilitating file transfer and connection of external devices such as additional printers or hard drives. In addition, the qts intuitive user interface, the QNAP operating system, makes NAS configuration and management, even for those who are not experts in technology.

The TS-233 not only stands out for its performance, but also for its security characteristics. Incorporate data encryption options, ensuring that your information is protected against unauthorized access. In addition, it has automatic backup functions and cloud file synchronization, giving you tranquility and protection for your most valuable data.

With an elegant and compact design, the Qnap TS-233 is easily integrated into any work space. Either to store family photographs, manage important documents or make multimedia content streaming, this NAS is the ideal solution to keep your data organized and accessible at all times. Do not miss the opportunity to optimize your storage with the Qnap TS-233.

Technical Specifications

• Brand QNAP
• Model TS-233
• CPU – CPU: Quad-core ARM® Cortex-A55 processor at 2.0 GHz
• CPU Architecture: 64-bit ARM
• Floating Point Unit
• Encryption Engine
• Memory – System Memory: 2GB
• Maximum Memory: 2GB
• Storage
• Flash Memory: 4GB (dual-system OS protection)
• Drive Bay: 2 x SATA 3.5″ at 6Gb/s, 3Gb/s
• Drive Compatibility:
• 3.5″ SATA Hard Drives
• 2.5″ SATA Hard Drives
• 2.5″ SATA Solid State Drives
• Hot Swappable
• Connections – 1x GbE Port (RJ45)
• 1x USB 3.2 Gen 1 Port
• 2x USB 2.0 Ports
• Features – Wake-on-LAN (WOL)
• Jumbo Frame
• Physical
• Format: Tower
• LED Indicators: Status, LAN, USB, Disk 1-2
• Buttons: Power, Reset, USB Copy
• Dimensions (Height x Width x Depth): 188.64 × 90.18 × 156.26 mm
• Weight (net): 1.11 kg
• Weight (gross): 1.95 kg
• Operating Temperature: 0 – 40 °C (32°F – 104°F)
• Storage Temperature: -20 – 70°C (-4°F – 158°F)
• Relative Humidity: 5 ~ 95 % relative humidity non-condensing, wet bulb: 27 ºC (80.6 ºF)
• Power Supply: 65W adapter, 100-240 V
• Power Consumption: HDD Suspension Mode: 3.43 W
• Power Consumption: Operation Mode, typical: 10.81 W
• Fan: 1 x 80mm smart fan (12 VDC)
• Noise Level: 19.2 db(A)
• System Warning: Beeper
• Kensington Security Slot
• Max. Number of Concurrent Connections (CIFS) – with Max. Memory: 200
• Revision Date 01-04-2022 by MPM
