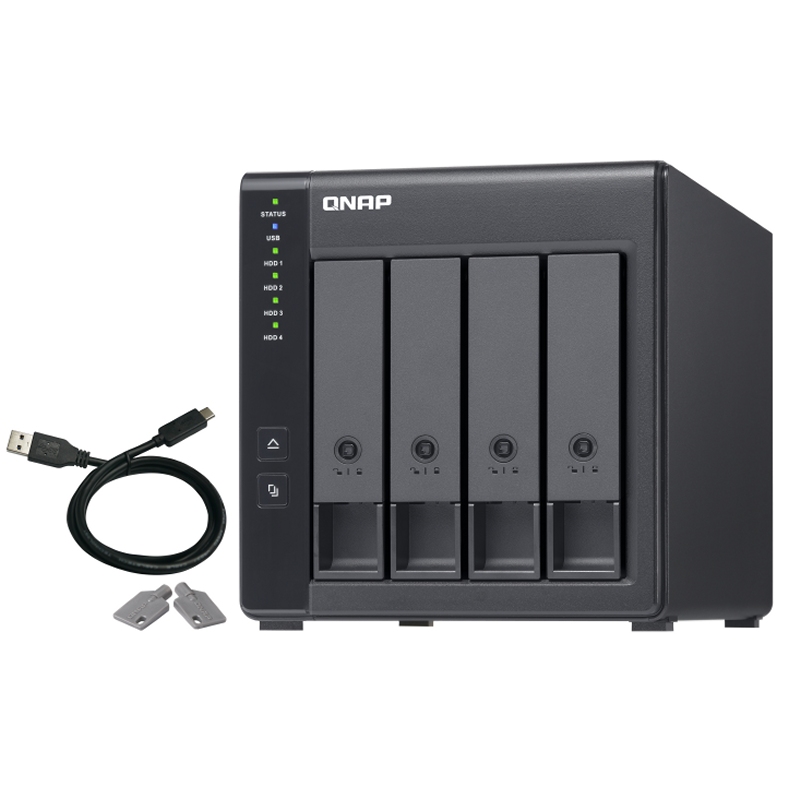

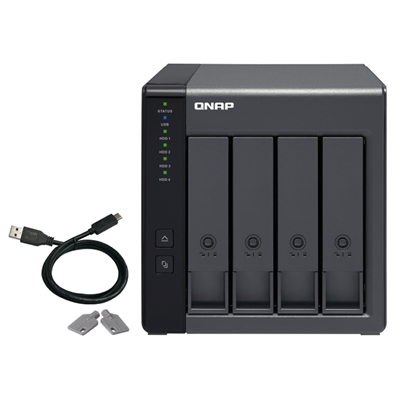

QNAP TR-004 Raid Expansion 4XHDD-Bay 1xUSB-C 3.2

The QNAP TR-004 is a versatile and efficient Raid expansion solution designed for users who seek to expand their storage capacity in a simple and safe way. With its four bays for hard drives, it allows to install up to four disk units of 3.5 “or 2.5”, offering a total capacity that can reach several Terabytes, depending on the chosen discs. This device is ideal for those who handle large volumes of data, such as photographers, videographers and companies that require additional storage.

One of the most prominent features of the TR-004 is its USB-C 3.2 connectivity, which guarantees rapid and efficient data transfers. With a transfer speed of up to 10 Gbps, users can copy or move heavy files in minutes, which optimizes the workflow. In addition, the TR-004 is compatible with different RAID settings, such as Raid 0, Raid 1, Raid 5 and Raid 10, allowing users to choose the level of redundancy and performance that best suits their needs.

The design of the QNAP TR-004 is elegant and functional, with an efficient ventilation system that maintains fresh discs, thus prolonging its useful life. Its installation is intuitive, allowing users to configure and manage the device without complications. With the QNAP TR-004, not only additional storage is obtained, but also a tool that guarantees the safety and integrity of the data, making it an essential investment for any professional or company that assesses your information.

Technical Specifications

• The RAID USB 3.2 Gen 1 TR-004 expansion boxes allow you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be used as a DAS (direct-attached storage) device, allowing you to access your content directly by simply connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity, providing a high-reliability and high-security storage expansion solution.
• Brand QNAP
• Model TR-004
• CPU – Hardware RAID microprocessor
• Storage
• Drive bays: 4 x SATA 3.5″ drives up to 6Gb/s, 3Gb/s
• Drive compatibility:
• 3.5″ SATA hard drives
• 2.5″ SATA hard drives
• 2.5″ SATA solid-state drives
• Hot-swappable
• File system
• Internal drives: EXT4
• External drives: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
• System modes
• Individual, JBOD, hardware RAID 0/1/5/10, software CTRL
• (software control mode is used with QNAP NAS and Windows/macOS utility)
• Connections – 1 x USB 3.2 Gen 1 Type-C port
• Physical characteristics
• Format: Tower
• Dimensions (Height x Width x Depth): 168.5 × 160.2 × 219 mm
• Weight (net): 1.85 kg
• Operating temperature: 0 – 40 °C (32°F – 104°F)
• Storage temperature: -20 – 70°C (-4°F – 158°F)
• Relative humidity: 5 ~ 95 % relative humidity non-condensing, wet bulb: 27 °C (80.6 °F)
• Power supply unit: External power adapter, 65W, 100-240 V
• Power consumption: Hard disk hibernation mode: 4.17 W
• Power consumption: Operating mode, typical: 18.21 W
• Tested with fully loaded drives.
• Fan: 1 x 120mm, 12 V DC
• Noise level: 18.1 db(A)
• System warning: Bell
• Kensington security slot
• Revision date 30-12-2021 by MSB
