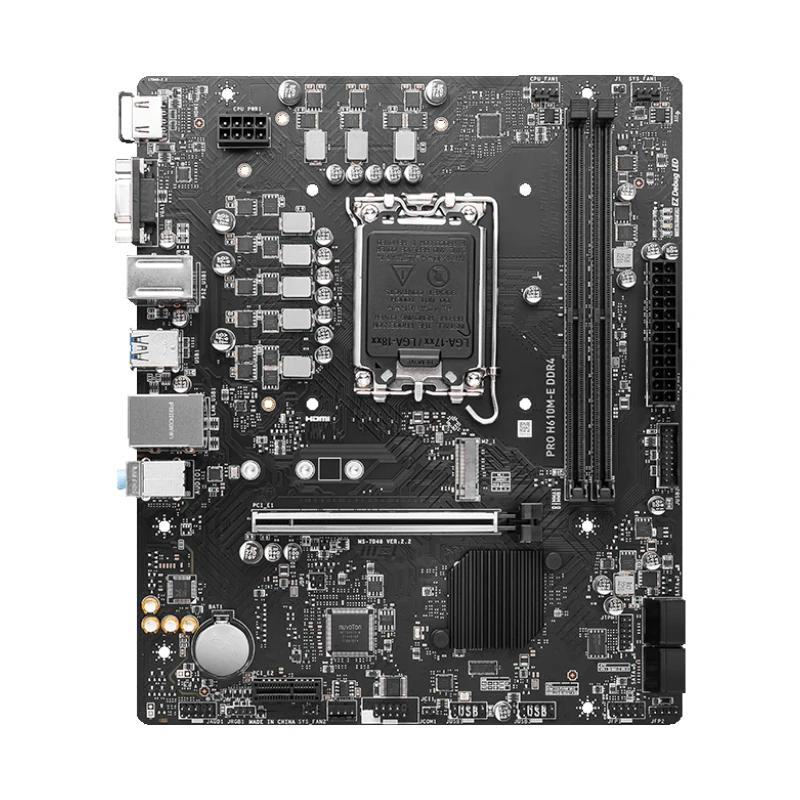

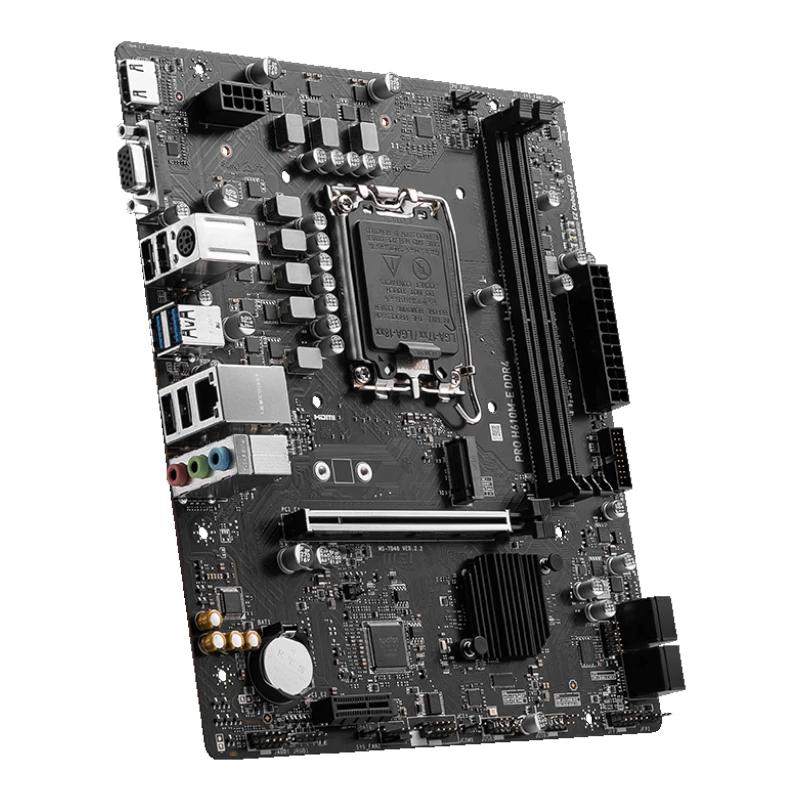

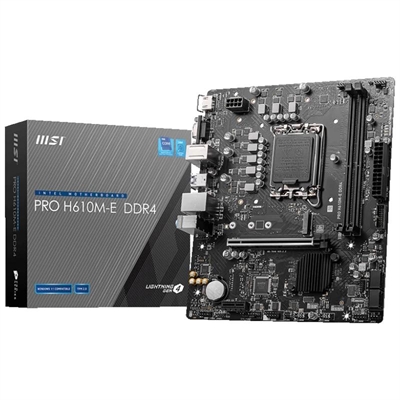

MSI PRO H610M-E DDR4 mATX Motherboard 1700

The MSI Pro H610M-E DDR4 Matx 1700 motherboard is the ideal choice for those looking for a solid and reliable base for their PC constructions. Designed specifically for 12th generation Intel processors, this motherboard offers exceptional performance and a wide range of features that make it stand out in the market.

With a Matx format, the Pro H610M-E is perfect for medium-sized boxes, maximizing the space without compromising functionality. It supports DDR4 memory with speeds of up to 3200 MHz, which guarantees fluid performance in daily tasks and more demanding applications. In addition, it has two DIMM slots, allowing configurations of up to 64 GB of RAM, ideal for multitasking and applications that require high performance.

Connectivity is also a strong point of this plate, since it includes multiple USB ports, as well as HDMI and VGA connectivity for easy integration with various monitors. Its PCIE slots allow the installation of advanced graphics cards, ensuring that your system is prepared for the latest games and applications.

Cooling technology and robust design ensure that the MSI PRO H610M-E maintains optimal temperatures even under heavy loads, prolonging the useful life of your components. In addition, its intuitive BIOS facilitates the configuration and adjustment of parameters, allowing users of all levels to take advantage of their system.

In summary, the MSI Pro H610M-E DDR4 Matx 1700 is a versatile and powerful option for any computer enthusiast that wishes to build an efficient and lasting PC.

Technical Specifications

• Marca MSI
• Model 911-7D48-012
• Platform – Micro-ATX
• Chipset – Intel® H610 Chipset
• CPU
• Supported – Supports 12th/ 13th / 14th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Processor socket LGA1700
• Memory – 2 x DDR4 slots, supports up to 64GB
• Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC and POR)
• Supports dual channel mode
• Supports non-buffered and non-ECC memory
• SATA PORTS – 4x SATA 6Gb/s ports (From H610 chipset)
• M.2 SSD SLOT – 1x M.2 slot (Key M) (from CPU)
• Supports PCIe 3.0 x4
• Supports storage devices 2242/ 2260/ 2280
• Expansion Slots
• 1x PCIe x16 slot (from CPU)
• Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot (from H610 chipset)
• Supports PCIe 3.0 x1
• Graphics – 1 x HDMI 1.4 with HDR port, supports maximum resolution of 4K 30Hz
• 1 x VGA, max. res. 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
• (* Specifications may vary depending on the installed CPU)
• LAN – 1x Realtek® RTL8111H 1Gbps LAN
• AUDIO – Realtek® ALC897 Codec 7.1-Channel High Definition Audio
• I/O Ports,
• Connectors
• Internal I/O Connectors
• 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
• Supports 2 additional USB 3.2 Gen 1 5Gbps ports
• 2x USB 2.0 Type-A (from Hub-GL850G)
• Supports 4 additional USB 2.0 ports
• 1x front audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 4x EZ Debug LED
• 1x 24-pin ATX main power
• 1x 8-pin +12V power

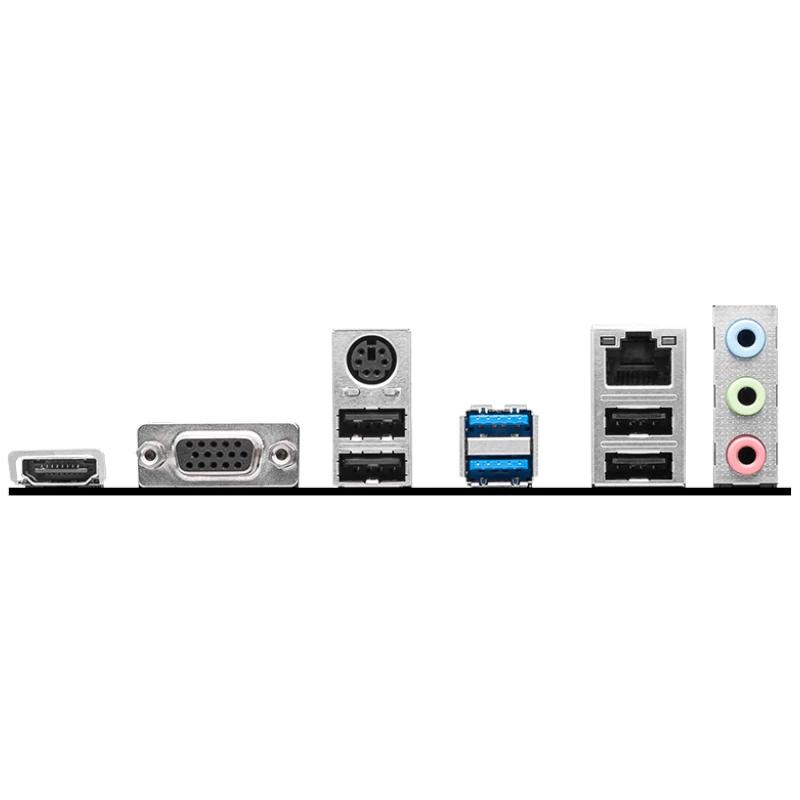

• Rear I/O Panel
• 1 x HDMI™
• 1 x VGA
• 1 x Keyboard / Mouse
• 2 x USB 3.2 Gen 1 5Gbps Type-A
• 1 x LAN port
• 1 x Audio connector
• 4 x USB 2.0
• Operating System
• Support for Windows 11 64-bit, Windows 10 64-bit
• Dimensions – 236 x 200 mm
• M-ATX
