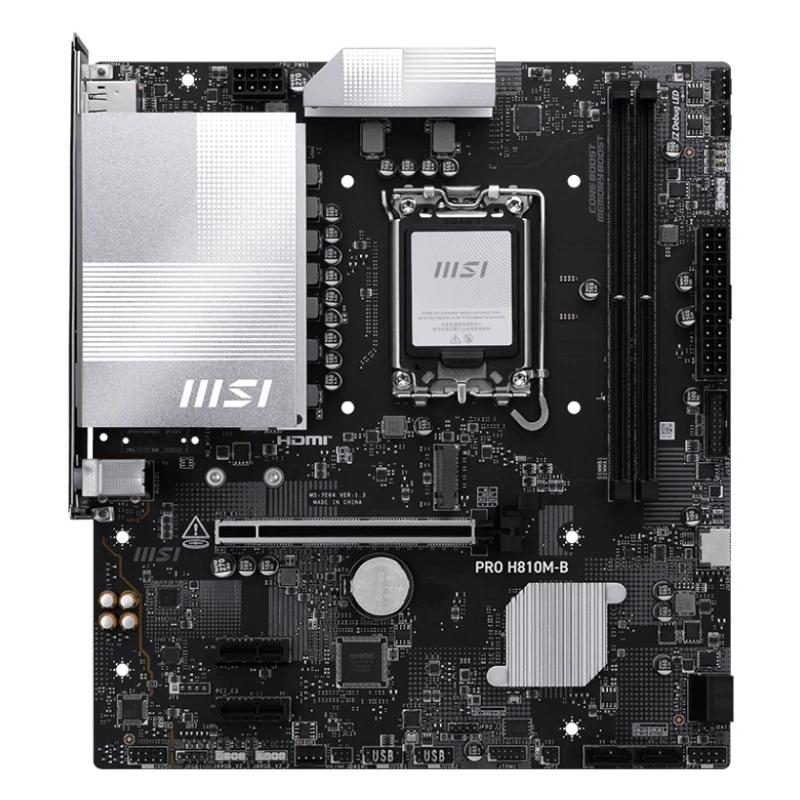

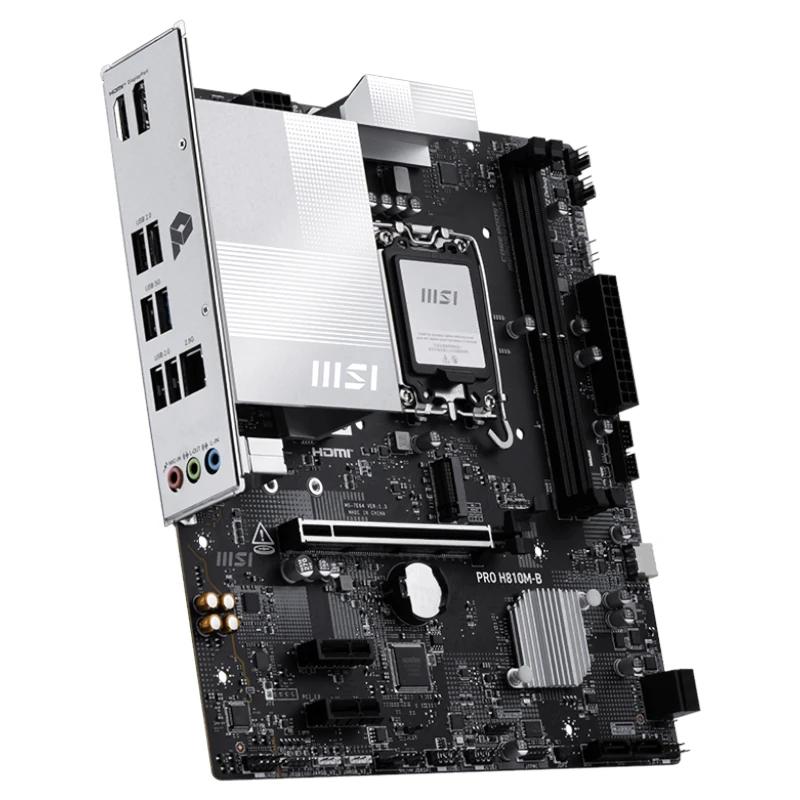

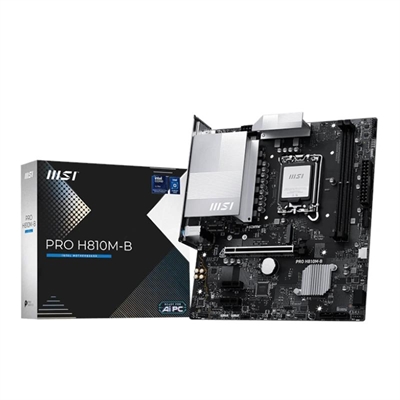

MSI Motherboard PRO H810M-B mATX LGA1851

The MSI Pro H810M-B motherboard is the ideal option for those looking for a perfect balance between performance and functionality in a compact Matx format. Designed for Intel processors of 10th Geração, this plaque has an LGA 1851 base, ensuring compatibility with a wide range of CPUS to meet the needs of any user, from the technology fan to the professional.

With a robust and efficient design, the MSI PRO H810M-B offers excellent thermal management thanks to its optimized heat dissipators that maintain the temperature under control even in high-load situations. The plate supports DDR4 memory of up to 2666 MHz, allowing RAM configurations that maximize the general system performance. In addition, it has two Dimm slots, which allows the easy and effective expansion of memory.

This plate also integrates multiple connectivity options, including USB 3.2 ports for ultra -granted data transfers, as well as SATA connectors for hard drives and SSDS, which guarantees efficient storage. For sound enthusiasts, the MSI Pro H810M-B incorporates a high-definition audio system that provides an enveloping sound experience.

The installation is simple and the intuitive BIOS interface facilitates the customization of the system. With its elegant and functional design, the MSI Pro H810M-B is not only an excellent choice to build a powerful PC, but also perfectly adapts to any work or game environment. With this motherboard, you will have the confidence that your system will be prepared for any challenge.

Technical Specifications

• Brand MSI
• Model 911-7E64-001
• Format palca – mATX (220 mm x 243.84 mm)
• Chipset – INTEL H810
• Supported CPUs
• Compatible with Intel Core Ultra processors (Series 2)
• LGA 1851
• Memory – 2x DDR5 UDIMM, Maximum memory capacity: 128 GB
• Compatible with DDR5 memory from 6400 to 4800 MT/s (JEDEC)
• Maximum overclocking frequency:
• 1DPC 1R Maximum speed of up to 6400 MT/s
• 1DPC 2R Maximum speed of up to 6400 MT/s
• Compatible with Intel POR Speed and JEDEC Speed
• Compatible with Intel XMP 3.0
• Compatible with dual controller and dual channel mode
• Compatible with non-buffered and non-ECC memory
• Compatible with CUDIMM
• * The DIMM slots on this motherboard have double-sided latches.
• * Memory compatibility and supported speeds may vary depending on CPU and memory configuration. For detailed information, refer to the Memory Compatibility List available on the product support page or visit https://www.msi.com/support/.
• Expansion Slots
• 1 x PCI-E x16 slot
• 2 x PCI-E x1 slots
• PCI_E1 Gen PCIe 5.0 supports up to x16 (from CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x1 (from chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x1 (from chipset)
• Graphics – 1 x HDMI
• Compatible with HDMI 2.1, maximum resolution of 4K at 60 Hz*
• 1 x DisplayPort
• Compatible with DisplayPort 1.4, maximum resolution of 4K at 60 Hz*
• *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU.
• I/O Ports,
• Connectors
• Internal
• 1 x power connector (ATX_PWR)
• 1 x power connector (CPU_PWR)
• 1 x CPU fan
• 2 x system fans
• 2 x front panels (JFP)
• 1 x chassis intrusion header (JCI)
• 1 x front audio connector (JAUD)
• 1 x debug controller connector (JDASH)
• 3 x addressable RGB LED connectors V2 (JARGB_V2)
• 1 x RGB LED connector (JRGB)
• 1 x TPM pin connector (compatible with TPM 2.0)
• 4 x USB 2.0 ports
• 2 x USB 5 Gbps Type A ports
• 1 x USB 10 Gbps Type C port

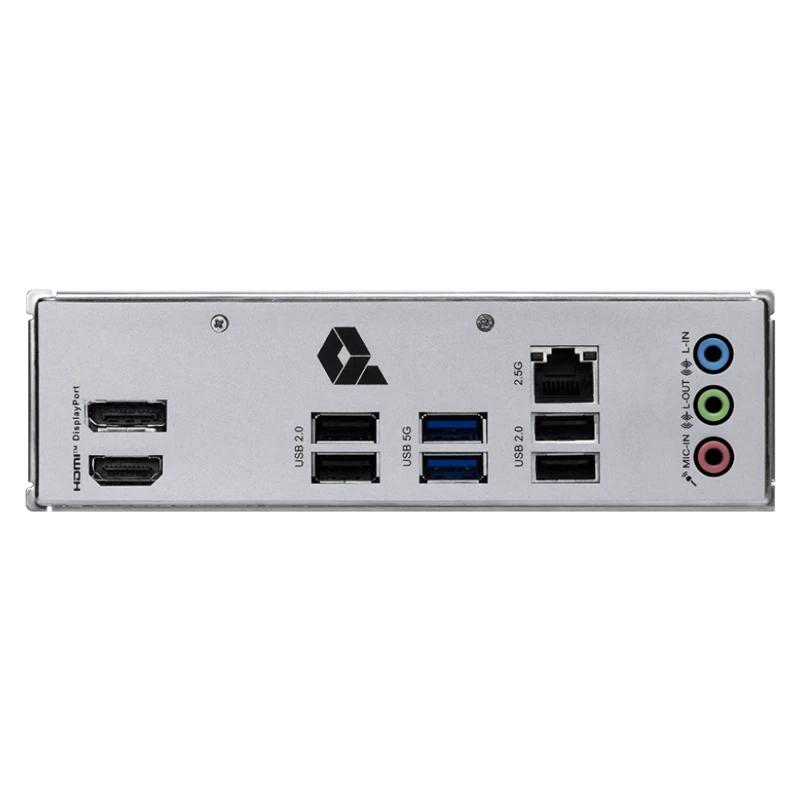

• External
• DisplayPort
• USB 2.0
• USB 5 Gbps Type A
• LAN 2.5G
• Audio connectors
• HDMI
• USB 2.0
• Other
• Features
• Storage
• 1 x M.2
• M.2_1 Source (from chipset) compatible with up to PCIe 4.0 x4 and 2280/2260 devices
• 4 x SATA 6G
• *Refer to the manual for M.2 SSD thermal dissipator restrictions.
• USB
• 4 x rear USB 2.0 ports
• 4 x front USB 2.0 ports
• 2 x rear USB 5 Gbps Type A ports
• 2 x front USB 5 Gbps Type A ports
• 1 x front USB 10 Gbps Type C port
• Network
• Realtek 8125 2.5G LAN
• Audio
• Realtek ALC897 codec
• 7.1-channel high-definition audio
• O.S. Compatible
• Support for Windows 11 64-bit
• Revision Date 07-08-2025 by RTY
