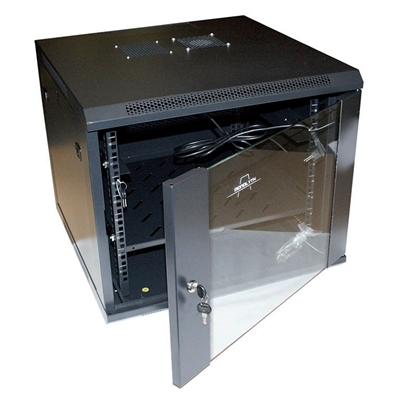

Monolyth Wall Cabinet 9U SH6409 600×450 1F-1V-2L

Discover the Monolyth Armario Mural 9U SH6409, a perfect solution for storing and organizing electronic equipment. With dimensions of 600×450 mm, this wall-mounted cabinet is designed to maximize space in work environments and ensure easy access to your devices.

• Robust construction for exceptional durability.
• Compact design that saves space without sacrificing functionality.
• Compatible with a wide range of accessories to customize your installation.

Technical Specifications

• Brand Monolyth
• Model 201110-1
• Specifications – Height: 9U
• Dimensions: 600 x 450 x 501 mm
• Weight: 19Kg
• Front door made of glass.
• Front safety opening with key.
• Removable side panels.
• Cable entry through the rear panel and bottom base.
• Adjustable mounting rails.
• Can be placed on wall or floor.
• Treatment: Degreased, anti-rust phosphoric paint.
• Standards: ANSI/EIA, RS-310-D, DIN41491 PART1, DIN41491, PART7, ETSI.
• Standard compatible with 19” International Standard.
• RoHS Directive 2002/95/EC.
• EN 60439-1:1999 + A1:2004.
• EN 60439-3:1991 + A1:1994. AC: 1994+A2:2001+AC:2005+AC:2009.
• Protection rating: IP20.
• Maximum static load: 60Kg.
• Material: SPCC Steel.
• Steel thickness: Mounting rails 2.0 mm.
• Mounting angles: 1.5 mm., rest 1.2 mm.
• Color: RAL 9004 (black) smooth finish.
• Included Accessories
• 1 x fixed tray.
• 1 x set of side brackets.
• 1 x 120 mm ceiling fan.
• Mounting screws included and set of keys for locks.
• Revision Date 28-08-2019 by MSB
