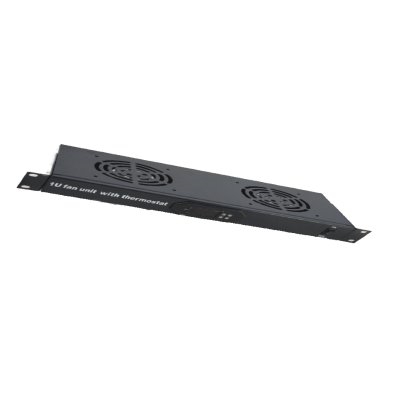

Monolyth Digital Thermoregulator 2 Fans 1U

Discover the monolyth digital thermoregulator , the perfect solution to maintain an optimal temperature in your rack equipment. With two fans high performance, this device ensures effective ventilation and efficient operation of your components. Ideal for professionals seeking quality and durability in their rack cabinets .

Technical Specifications

• Monolyth offers thermal regulators and digital thermostats with digital control of time and temperature, through a display and switches, which can be installed in floor and wall cabinets. They incorporate an external probe to measure the temperature of the rack and connect to the ventilation system to regulate it based on the internal temperature of the cabinet. They allow programming the activation of the fans based on a specific temperature. If the cabinet has ventilation, the simple thermal regulator is sufficient to optimize the cooling of the cabinet, but if we do not have a fan tray or need extra ventilation, we can incorporate a thermostat with 2 or 4 fans.
• Brand Monolyth
• Model 3040001
• Specifications
• System Thermostat 2 Fans
• Features
• 2 Fans
• Size: 1 U
• Front Position
• Valid for all cabinets
• Operating temperature from -10ºC to +55ºC
• Protection: EN 60 529, IP 20 – Mounting: Front
• Depth: 140 mm. (without fans), 185 mm. (2 fans)
• 340 mm. (4 fans).
• Maximum power supported: 2,000W
• Includes: power cable, screws for mounting, display
• control/programming of digital LCD temperature and
• time with 4 buttons.
• The height of all our systems and ventilation units
• is only 1U, to make the most of the space in your
• cabinets and they are made of black steel.
• Revision Date 16-12-2014 by FE4
