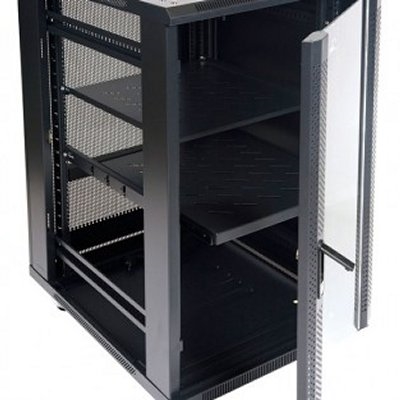

Monolyth Cabinet 47U SH8847 800×800 2F-4V-1B8

Discover the Monolyth Armario 47U SH8847, an ideal solution for organizing and protecting your network equipment and servers. With dimensions of 800×800 mm and a 2F-4V-1B8 configuration, this rack cabinet is perfect for any professional environment. Manufactured by the renowned brand Monolyth, it guarantees durability and efficiency in handling your devices.

• Capacity: 47U, ideal for maximizing storage space.
• Design: Robust structure and optimized ventilation for the best performance.
• Accessibility: Front and rear doors for easy access to equipment.

Technical Specifications

• The Monolyth 19” floor rack cabinets are perfect for housing any type of electronic system, whether they are precise and sophisticated devices, or large, heavy, and bulky servers. To meet a wide range of needs, Monolyth offers 19” floor cabinets with various heights, widths, depths, and capacities, from 22U to 47U, with widths of 600 and 800 mm, and depths ranging from 600mm to 1000mm, with glass doors, perforated doors, and even double perforated doors for the larger cabinets. All kinds of quality solutions for SMEs, large companies, and installers are available. There is the possibility of placing a double door on large rack cabinets, starting from 800 mm in width, which allows one part of the cabinet to remain closed while working on the other.
• Brand Monolyth
• Model 112000
• Specifications – Monolyth Floor Cabinet width 800mm
• Features
• Height: 47U
• Door: Glass
• Treatment: degreased, cleaned with
• acid and anti-rust phosphoric paint.
• Protection Grade: IP20
• (protection against dust ingress).
• Load capacity:
• 800 Kg. (on feet) |
• 400 Kg (on wheels).
• Material: Cold-rolled SPCC steel.
• Steel thickness: Rails 2.0 mm. |
• angles 1.5 mm. rest 1.2 mm.
• Color: Black RAL 9004, smooth finish.
• Dimensions: 800x800x2290
• Weight: 146kg

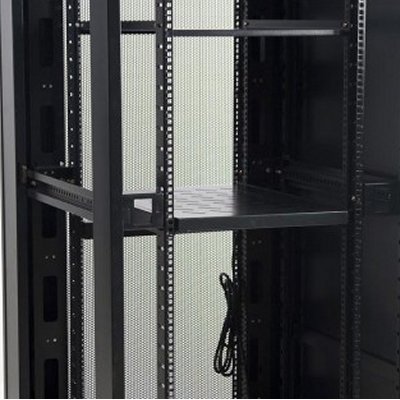

• Accessories- 2 fixed trays.

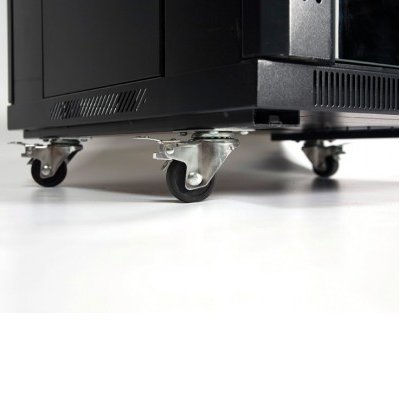

• 4 wheels with brake.
• 4 ceiling fans of 120 mm.
• 1 power strip base with 8 Schucko sockets
• with switch.
• Mounting screws, height-adjustable feet
• and a set of keys for locks.
• 2 side guides for cabling.
• Revision Date 05-03-2015 by MSB
