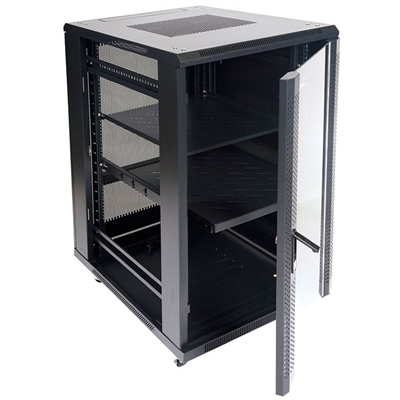

Monolyth Cabinet 22U SH6822 600×800 2F-2V-1B8

Discover the monolyth cabinet 22u SH6822 , a high quality rack cabinet designed to offer an efficient and organized solution for your equipment. With 600×800 mm dimensions, this closet has a 2 frontal doors , 2 rear doors and 1 tray of 8 units, ideal to maximize space and facilitate ventilation. Its robust construction ensures the protection of your devices, while its modern design adapts to any professional environment.

Technical Specifications

• The Monolyth 19” floor rack cabinets are perfect for housing any type of electronic system, whether they are precise and sophisticated devices or large, heavy, and bulky servers. To meet a wide range of needs, Monolyth offers 19” floor cabinets in various heights, widths, depths, and capacities, from 22U to 47U, with widths of 600 and 800 mm, and depths ranging from 600 mm to 1000 mm, with glass doors, perforated doors, and even double perforated doors for the larger cabinets. All kinds of quality solutions for SMEs, large companies, and installers. There is the possibility of placing a double door on large rack cabinets, starting from 800 mm in width, which allows one part of the cabinet to remain closed while working on the other.
• Brand Monolyth
• Model 123000-2
• Specifications – Monolyth Floor Cabinets width 600mm
• Features
• Height: 22U
• Door: Glass
• Treatment: degreased, cleaned with
• acid and anti-rust phosphoric paint.
• Protection Rating: IP20
• (protection against dust ingress).
• Load Capacity:
• 800 Kg. (on feet) |
• 400 Kg (on wheels).
• Material: Cold-rolled SPCC steel.
• Steel Thickness: Rails 2.0 mm. |
• angles 1.5 mm. rest 1.2 mm.
• Color: Black RAL 9004, smooth finish.
• Dimensions: 600x800x1166
• Weight: 73kg
• Accessories
• 2 fixed trays.
• 4 wheels with brake.
• 4 ceiling fans of 120 mm.
• 1 power strip with 8 Schucko sockets
• with switch.
• Mounting screws, height-adjustable feet
• and key set for locks.
• Revision Date 18-09-2018 by MSB
