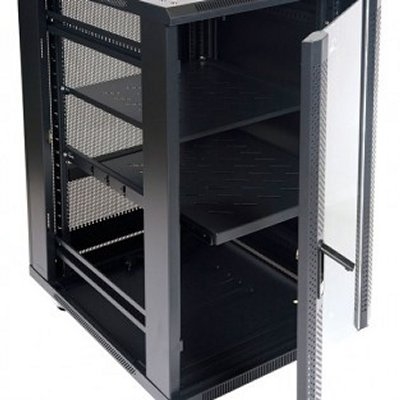

Monolyth 42U SH8242 Cabinet 800×1200 2F-4V-1B8

Discover the monolyth cabinet 42U SH8242 , a high capacity rack cabinet designed to optimize the storage and organization of your equipment. With dimensions of 800×1200 mm , this closet has a 2f-4V-1b8 configuration, ideal for adapting to various needs. Your robust construction and efficient design guarantee the maximum protection and accessibility of your devices.

Technical Specifications

• The Monolyth 19” floor rack cabinets are perfect for housing any type of electronic system, whether they are precise and sophisticated devices or large, heavy, and bulky servers. To meet a wide range of needs, Monolyth offers 19” floor cabinets in various heights, widths, depths, and capacities, from 22U to 47U, with widths of 600 and 800 mm and depths ranging from 600 mm to 1000 mm, with glass doors, perforated doors, and even double perforated doors for the larger cabinets. All types of quality solutions for SMEs, large companies, and installers. There is the possibility of placing a double door on large rack cabinets, starting from 800 mm in width, which allows one part of the cabinet to remain closed while working on the other.
• Brand Monolyth
• Model 117000
• Specifications – Monolyth Floor Cabinet width 800mm
• Features
• Height: 42U
• Door: Glass
• Dimensions: 800x1200x2055
• Weight: 165Kg
• Treatment: degreased, acid cleaned
• and anti-rust phosphoric paint.
• Protection Rating: IP20 (protection
• against dust ingress).
• Load capacity: 800 Kg. (on feet) |
• 400 Kg (on wheels).
• Material: Cold rolled SPCC steel.
• Steel thickness: Rails 2.0 mm. |
• angles 1.5 mm. rest 1.2 mm.
• Color: Black RAL 9004, smooth finish.
• Complies with standards
• ANSI/EIA, RS-310-D, DIN41491 PART1,
• DIN41491 PART7, ETSI, standard compatible
• with 19” International Standard, RoHS Directive
• 2002/95/EC, EN 60439-3:1991 +A1:1994 C:
• 1994+A2:2001+AC:2005 +AC:2009,
• EN 60439-1:1999 + A1:2004.
• Included accessories

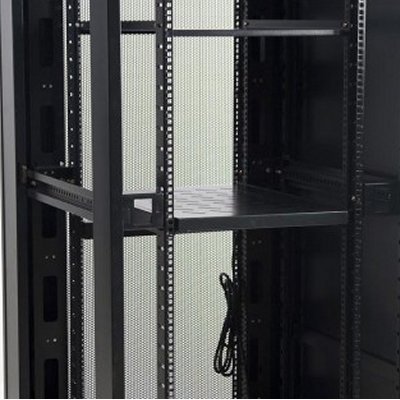

• 2 fixed shelves.

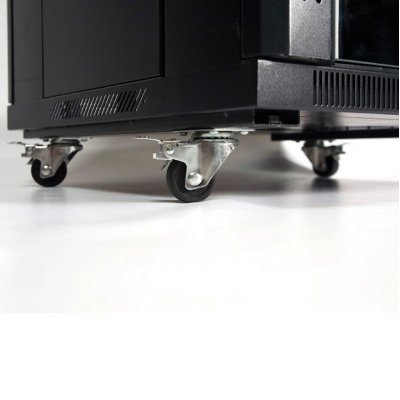

• 4 wheels with brake.
• 4 ceiling fans of 120 mm.
• 1 power strip with 8 Schucko sockets
• with switch.
• Mounting screws, adjustable feet in
• height, and a set of keys for locks included.
• In 800 mm floor cabinets.
• 2 side guides for cabling.
• Revision Date 02-02-2016 by MSB
