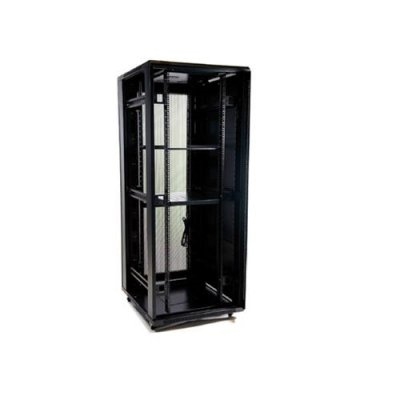

Monolyth 42U SH8042 Cabinet 800×1000 2F-4V-1B8

Discover the monolyth cabinet 42U SH8042 , a high quality rack cabinet designed to meet all your storage and organization needs. With dimensions of 800×1000 mm , this robust closet has a 42U capacity and is ideally equipped to house all your network equipment and servers in a safe and efficient way. Monolyth

Technical Specifications

• Monolyth Brand
• Model SH8042
• Specifications
• 19″ rack cabinet of 42U
• Features
• FEATURES
• Front door made of hardened and transparent glass.
• Perforated rear door that optimizes interior ventilation.
• Handylock safety opening on the front door and key on the rear door.
• Removable side panels with lock.
• SPECIFICATIONS
• Treatment: degreased, anti-rust phosphoric paint
• Standards: ANSI/EIA, RS-310-D, IEC60279-2-100, DIN41494 PART7, DIN41497 PART1, GB/T3047.2-92 Standard compatible with 19″ International Standard, Rohs.
• Protection grade: IP20.
• Load capacity: Maximum static load 800Kg (on feet) 400Kg (on wheels)
• Material: SPCC steel.
• Steel thickness: Mounting rails 2.0 mm, mounting angles: 1.5 mm, rest 1.2 mm.
• Color: RAL 9004 (black) smooth finish.
• Dimensions: Height 42U | Width 800 mm | Depth 1000 mm | Height 2055 mm | Weight 145 Kg
• INCLUDED ACCESSORIES
• 2 fixed shelves.
• 4 wheels with brake.
• 4 ceiling fans of 120 mm.
• 1 power strip base with 8 Schuko sockets and switch.
• Mounting screws included and set of keys for locks.
• 2 side guides for cabling.
• Revision Date 09-09-2014 by FE4
