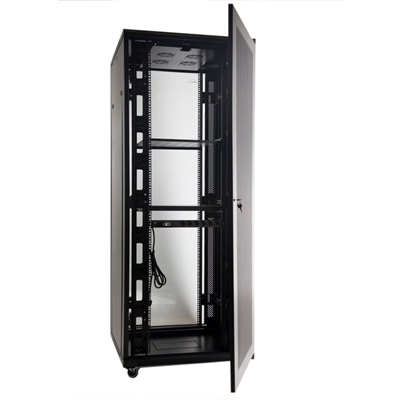

Monolyth 42U SH6642 600×600 Perforated Door Cabinet

Discover the monolyth cabinet 42U SH6642 , a high quality rack cabinet designed to meet the storage needs of electronic equipment and components. With dimensions of 600×600 mm and a perforated door, this closet provides optimal ventilation and easy access to its content. Equipment.

Technical Specifications

• The Monolyth 19” floor rack cabinets are perfect for housing any type of electronic system, whether they are precise and sophisticated devices, or large, heavy, and bulky servers. To meet a wide range of needs, Monolyth offers 19” floor cabinets with various heights, widths, depths, and capacities, from 22U to 47U, with widths of 600 and 800 mm, and depths ranging from 600 mm to 1000 mm, with glass doors, perforated doors, and even double perforated doors for the larger cabinets. All kinds of quality solutions for SMEs, large companies, and installers are available. There is the possibility of placing a double door on large rack cabinets, starting from 800 mm in width, which allows one part of the cabinet to remain closed while working on the other.
• Brand Monolyth
• Model 106010-2
• Specifications Floor cabinet
• Features
• Height: 42U
• Door: perforated
• Treatment: degreased, cleaned with acid, and anti-rust phosphoric paint.
• Protection Grade: IP20 (protection against dust ingress).
• Load capacity:
• 800 Kg. (on feet) |
• 400 Kg (on wheels).
• Material: Cold-rolled SPCC steel.
• Steel thickness: Rails 2.0 mm. |
• angles 1.5 mm. rest 1.2 mm.
• Color: Black RAL 9004, smooth finish.
• Dimensions: 600 x 600 x 2055 mm
• Weight: 97 kg
• Accessories
• 2 fixed trays.
• 4 wheels with brake.
• 4 ceiling fans of 120 mm.
• 1 power strip with 8 Schucko sockets and switch.
• Mounting screws, height-adjustable feet, and a set of keys for locks.
• Revision Date 13-02-2018 by AVN
