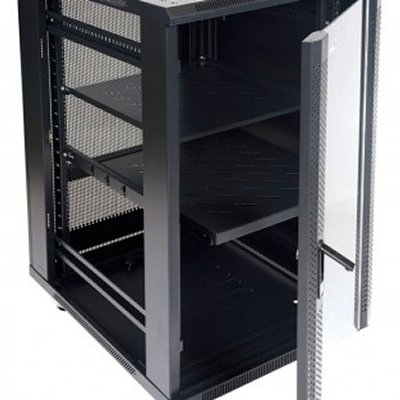

Monolyth 22U SH6022 Cabinet 600×1000 2F-2V-1B8

Discover the monolyth cabinet 22u SH6022 , a high quality rack cabinet designed to optimize the storage and organization of your equipment. With dimensions of 600×1000 mm , this closet has a 22U capacity, ideal for any professional environment. Its robust design and advanced functionality ensure excellent ventilation and safety for your devices. work.

Technical Specifications

• The Monolyth 19” floor rack cabinets are perfect for housing any type of electronic system, whether they are precise and sophisticated devices, or large, heavy, and bulky servers. To meet a wide range of needs, Monolyth offers 19” floor cabinets with various heights, widths, depths, and capacities, from 22U to 47U, with widths of 600 and 800 mm, and depths ranging from 600 mm to 1000 mm, with glass doors, perforated doors, and even double perforated doors for the larger cabinets. All kinds of quality solutions for SMEs, large companies, and installers are available. There is the option to install a double door on large rack cabinets starting from 800 mm in width, allowing one part of the cabinet to remain closed while working on the other.
• Brand Monolyth
• Model 103000
• Specifications – Monolyth Floor Cabinets width 600mm
• Features
• Height: 22U
• Door: Glass
• Treatment: degreased, cleaned with
• acid and anti-rust phosphoric paint.
• Protection Rating: IP20
• (protection against dust ingress).
• Load capacity:
• 800 Kg. (on feet) |
• 400 Kg (on wheels).
• Material: Cold rolled SPCC steel.
• Steel thickness: Rails 2.0 mm. |
• angles 1.5 mm. others 1.2 mm.
• Color: Black RAL 9004, smooth finish.
• Dimensions: 600x1000x1166
• Weight: 80kg
• Accessories

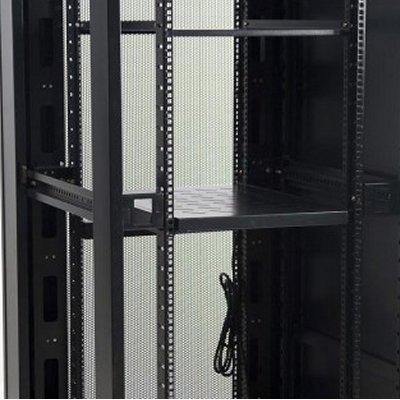

• 2 fixed trays.

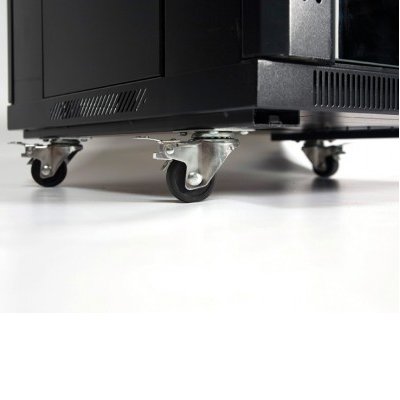

• 4 wheels with brake.
• 4 ceiling fans of 120 mm.
• 1 power strip base with 8 Schucko sockets
• with switch.
• Mounting screws, height-adjustable feet
• and a set of keys for locks.
• Revision Date 05-03-2015 by MSB
