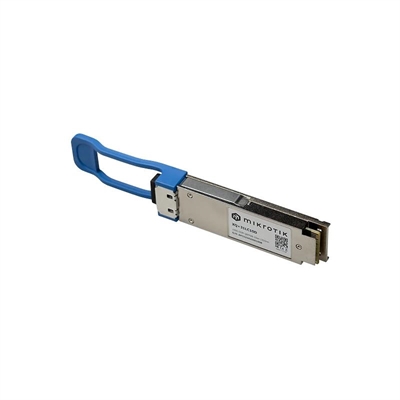

MikroTik XQ+31LC10D QSFP28 Module 100Gb 10Km

Discover the MikroTik XQ+31LC10D, a high-speed QSFP28 module designed to deliver exceptional performance in fiber optic networks. With a capacity of 100Gb and a range of 10Km, this module is ideal for wired network applications.

• Brand: MikroTik
• Reference: NADACA0231
• Speed: 100Gb
• Range: 10Km

Technical Specifications

• Add this QSFP module for distances of up to 10 kilometers to your CCR2216, CRS504, or CRS518 configurations and enjoy real speed and maximum reliability. This optical module offers four independent full-duplex channels with a bandwidth of up to 25 Gbps per channel and an aggregated bandwidth of 100 Gbps.
• The module has built-in digital diagnostic functions, such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other key parameter monitoring. These options can be useful not only to alert the user during abnormal transceiver activity but also if specific customizable operational limits are exceeded. Monitoring allows you to plan ahead, make informed decisions, and predict necessary updates or maintenance based on transceiver performance.
• Brand MikroTik
• Model XQ+31LC10D
• Features – Connector: Dual LC UPC
• Data rate: 100G
• Distance: 10km
• Format: QSFP28
• Mode: SM
• Wavelength:
• 1296nm
• 1300nm
• 1305nm
• 1309nm
• Review date 01-03-2023 by RTY
