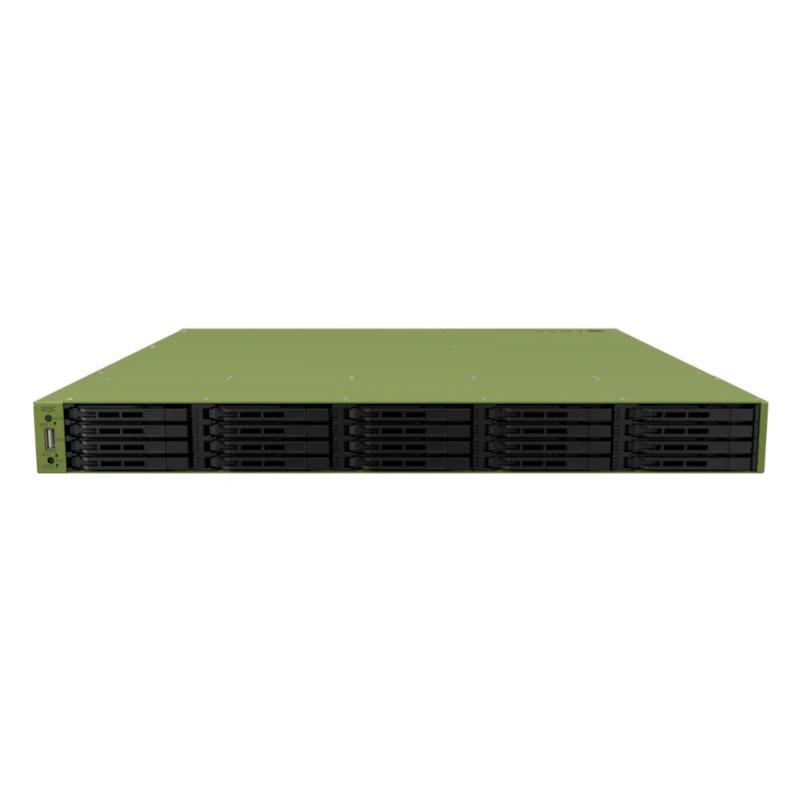

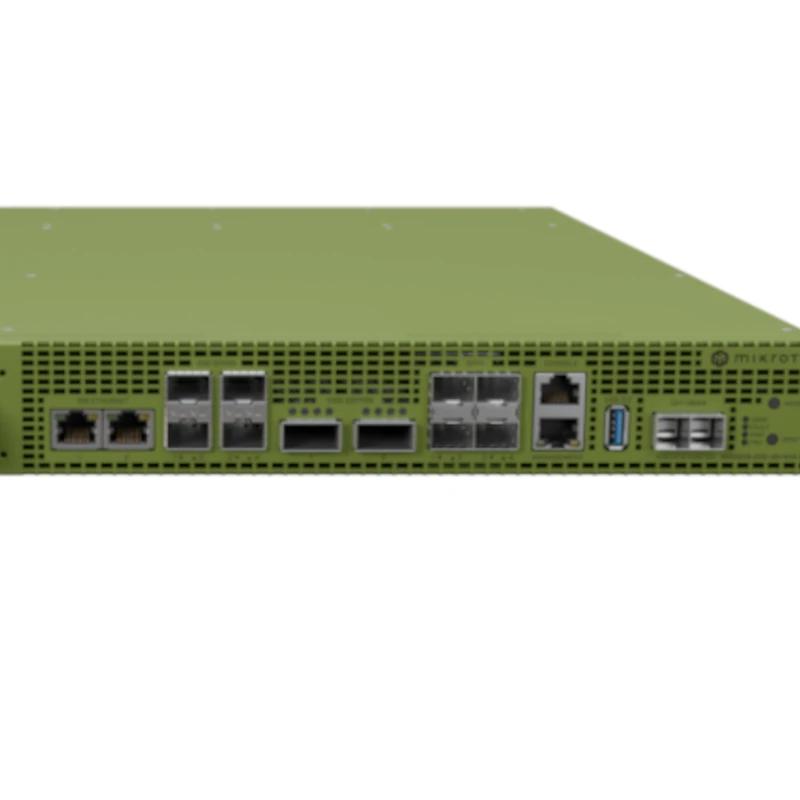

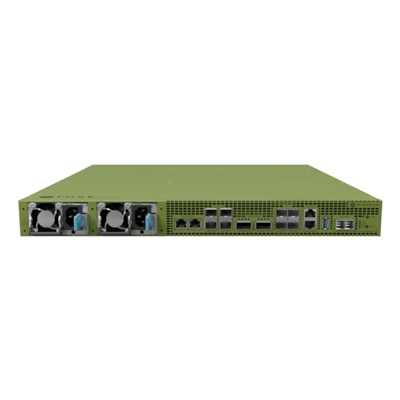

Mikrotik RDS2216 Data Server 2x100G QSFP28 1xGb

The Mikrotik RDS2216 is a high performance data server designed to meet the demands of modern networks. With its ability to handle 2 ports of 100G QSFP28 and an additional port of 1G, this device is ideal for companies that need rapid and reliable connectivity for their daily operations.

Equipped with a powerful processor and an advanced architecture, the RDS2216 offers exceptional performance in data management, facilitating the processing and transfer of large volumes of information. Its optimized design guarantees low latency, which makes it a perfect solution for critical applications and high availability environments.

In addition, the Mikrotik RDS2216 stands out for its configuration flexibility, allowing users to customize network options according to their specific needs. Compatibility with multiple protocols and industry standards ensures that this server is integrated without problems in various network infrastructure.

The device management is simple thanks to its intuitive user interface, which allows administrators to monitor and adjust the network performance efficiently. With advanced security characteristics, this server protects the critical data of the company against external threats.

In summary, the Mikrotik RDS2216 not only offers speed and efficiency, but also guarantees a robust and scalable solution for companies that seek to optimize their network infrastructure. Ideal for data centers, service providers and organizations that require higher connectivity, RDS2216 is an intelligent investment for the digital future.

Technical Specifications

• MikroTik Brand
• Model RDS2216-2XG-4S+4XS-2
• Features – Number of CPU cores: 16
• Nominal CPU frequency: 2000 MHz
• RouterOS 6 license
• RouterOS v7 operating system (special ROSE edition)
• Peripherals
• Serial console port RJ45
• Number of USB ports: 2
• USB power reset
• USB 3.0 type A slot
• Maximum USB current (A) 1
• Number of M.2 slots: 2
• Connectivity
• Number of AC inputs: 2
• AC input range: 100-240
• Frequency (Hz): 50-60
• 10 / 100 / 1000 Ethernet ports: 1
• Number of 1G / 2.5G / 5G / 10G Ethernet ports: 2
• SFP+ ports: 4
• Number of 25G SFP28 ports: 4
• Number of 100G QSFP28 ports: 2
• Storage
• RAM size: 32 GB
• Storage size: 128 MB
• Storage type: NAND
• Power
• Maximum power consumption: 286 W
• Maximum power consumption without accessories: 105 W
• Cooling type: 10 fans
• Environment
• Approximate mean time between failures: 200,000 hours at 25 °C
• Tested ambient temperature: -40°C to 70°C
• Revision date 31-03-2025 by DR
