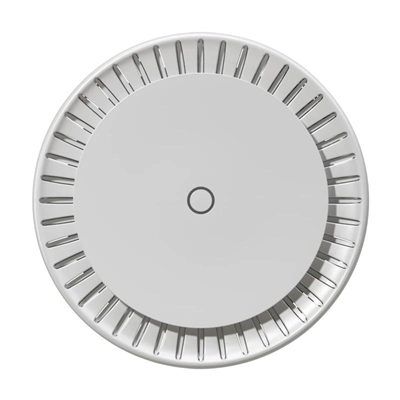

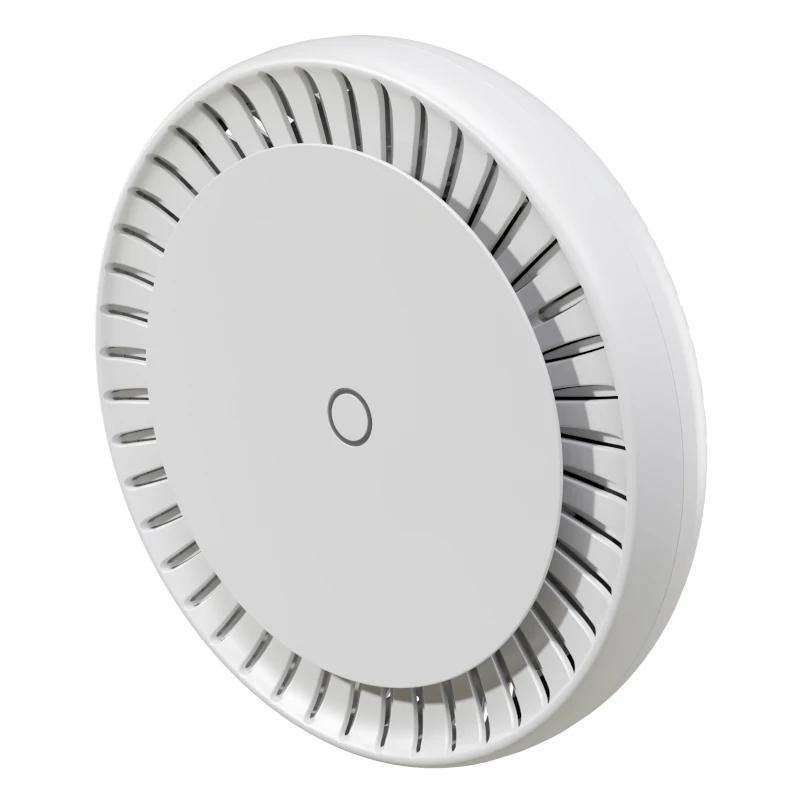

Name: Mikrotik cAP ax Ceiling AP WiFi6 2xGbE Dual
Brand: Mikrotik
SKU: IRS02033
Availability: OutOfStock

The Mikrotik Cap Ax is an access point designed to offer exceptional wifi6 connectivity in internal environments. With an elegant and discreet design, this device integrates perfectly in any space, allowing users to enjoy a quick and reliable connection without sacrificing aesthetics.nnEquipped with Wi -Fi6 technology, CAP AX provides speeds of up to 1800 Mbps, which ensures that multiple devices can connect simultaneously without experiencing performance falls. Thanks to its support capacity for Mu-Mimo and Ofdma, this access point optimizes data transfer, allowing several users to enjoy a fluid navigation experience, ideal for offices, restaurants or any place with high demand for connectivity.nnWith two Gigabit Ethernet (2xgbe) ports, CAP AX allows fast and stable cable connections, which makes it a versatile option for those that require a robust network. In addition, its easy installation on the roof offers wide and uniform signal coverage, minimizing dead areas in the service area.nnThe Mikrotik Cap Ax also includes advanced security features, ensuring that user information is protected. With their intuitive interface, the configuration and management of the device are simplified, allowing network administrators to adjust parameters according to the specific needs of their environment.nnIn summary, the Mikrotik Cap Ax is the perfect solution for those who seek a powerful, reliable and easy to install, capable of satisfying the demands of modern connectivity.

Specifications

Brand	Mikrotik
Model	cAPGi-5HaxD2HaxD

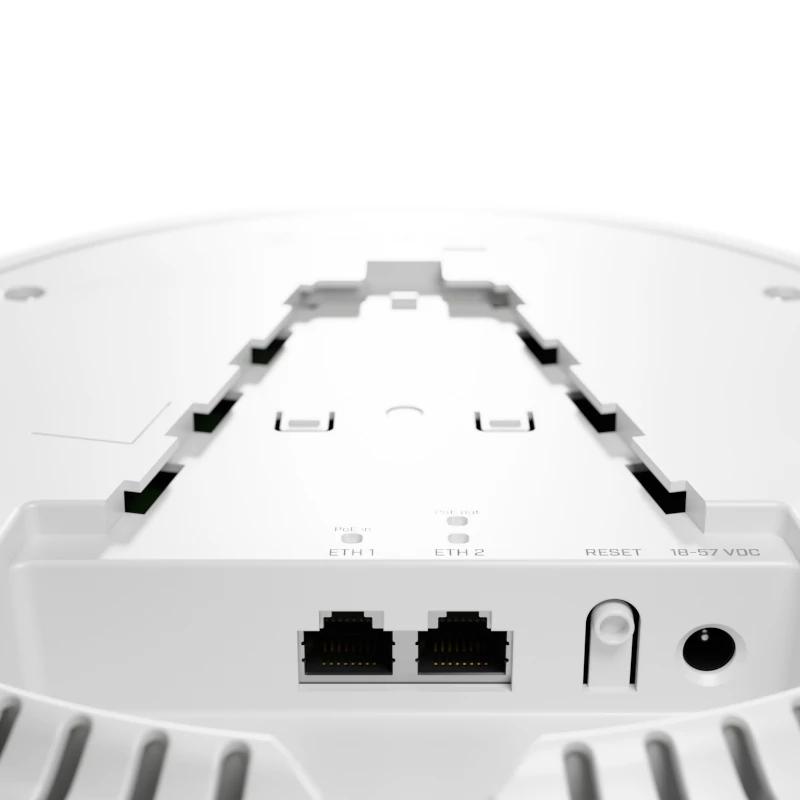

Features	– Architecture: ARM 64bit – CPU: IPQ-6010 – CPU core count: 4 – Nominal CPU frequency: auto (864 – 1800) MHz – Switch chip model: IPQ-6010 – License level: 4 – Operating system: RouterOS (v7 only) – RAM size: 1 GB – Storage size: 128 MB – Storage type: NAND – MTBF: Approximately 200,000 hours at 25C – Tested ambient temperature: -40°C to 70°C – IPsec hardware acceleration Wireless – Maximum wireless data rate at 2.4 GHz: 574 Mbit/s – Wireless 2.4 GHz number of chains: 2 – Wireless standards for 2.4 GHz: 802.11b/g/n/ax – Antenna gain dBi for 2.4 GHz: 6 – Wireless chip model for 2.4 GHz: QCN-5022 – Wireless generation for 2.4 GHz: Wi-Fi 6 – Maximum wireless data rate at 5 GHz: 1200 Mbit/s – Wireless 5 GHz number of chains: 2 – Wireless standards for 5 GHz: 802.11a/n/ac/ax – Antenna gain dBi for 5 GHz: 5.5 – Wireless chip model for 5 GHz: QCN-5052 – Wireless generation for 5 GHz: Wi-Fi 6 – WiFi speed: AX1800 Ethernet – 2 x Ethernet ports 10/100/1000 – 1 x 1G Ethernet port with PoE output PoE Output – PoE output ports: Ether2 – PoE output: Passive PoE up to 57V – Maximum output per output port (input 18-30 V): 600 mA – Maximum output per port output (input 30-57 V): 400 mA – Maximum total output (A): 600 mA – Total output current: 0.4 – Total output power: 19.2 Certifications – CE – FCC – IC – EAC – ROHS Power Supply – Number of DC inputs: 2 (PoE-IN, DC socket) – DC connector input voltage: 18-57 V – Maximum power consumption: 28.2 W – Maximum power consumption without accessories: 9 W – Cooling type: Passive – PoE on 802.3af/at – PoE input voltage: 18-57 V Includes – 48 V 0.95 A power adapter – Ceiling mount – Ceiling installation – K-41 fixing kit – Gigabit PoE injector
Review Date	25-04-2023 by RTY
