iggual TP7001 USB+RJ45 thermal printer black

Discover the Thermal Printer TP7001 from iggual, an efficient and versatile solution for your printing needs. With USB and RJ45 connectivity, this printer is ideal for businesses and companies looking for speed and quality in their thermal printing.

• Fast and high-quality printing
• Compatible with multiple operating systems
• USB and RJ45 connectivity for greater flexibility
• Compact design and easy to use

Technical Specifications

• Precision, speed, and quality. If you are looking for a ticket printer that meets these requirements, the TP7001 model will not disappoint you.
• With direct thermal technology, it is the best option for those businesses that need to print sales receipts, logos, or 1D and 2D barcodes quickly and without digitization errors.

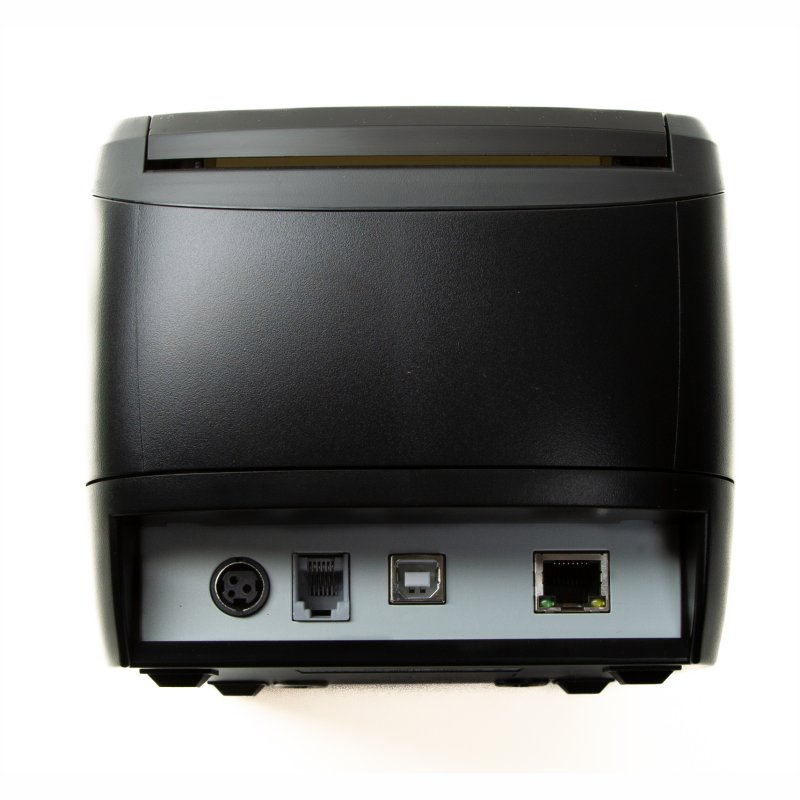

• In addition, this POS has a USB connection, an Ethernet port, and an RJ11 port to automatically control the opening of the cash drawer. It is compatible with paper up to 80 mm wide and, for the more demanding, it also includes a hermetic sensor for dust-proof roll end detection.
• High reliability
• Japanese cutting blade treated with chrome coating.
• Hermetic sensor for dust-proof roll end detection.
• High versatility
• 2 connection interfaces: USB and Ethernet port.
• RJ11 port for automatic control of cash drawer opening.
• High functionality
• Prints tickets up to 80 mm wide.
• Adds logos and 1D and 2D barcodes and avoids possible digitization errors.
• Trust iggual to equip your point of sale with technological solutions that combine innovation, quality, durability, good price, and close support.
• Brand iggual
• Model TP7001 (IGG318232)
• Type Thermal Ticket Printer
• Connectivity – USB
• Ethernet (RJ45)
• RJ11 (cash drawer control)
• Features – Print speed: 230 mm/s
• Paper size:
• Width 80 mm
• Maximum diameter: 83 mm
• Thickness: 0.06 – 0.08 mm
• Maximum print width: 72 mm
• Print dots: 576 dots per line
• Line spacing: 3.75 mm
• Resolution: 203 x 203 dpi
• Automatic or partial paper cutting
• Barcode formats:
• 1D: EAN-13, EAN-8, UPC-A, UPC-E, JAN13
• (EAN13), JAN8 (EAN8), ITF,
• CODABAR, CODE39, CODE93, CODE128
• 2D: QR, PDF417
• Storage
• Input buffer: 128 kbytes
• NV Flash: 256 kbytes
• Power
• Input: AC 110V – 220V 50/60Hz
• Output: DC 24V / 2.5A
• Drawer control: DC 24V / 1A
• General
• Dimensions: 145 x 189 x 140 mm
• Weight: 1 kg
• Color: black
• OS & Software
• Emulation: ESC / POS
• Supports: Windows, Linux, Android, macOS, JPOS, OPOS
• SDK: Windows, IOS, Android
• Others
• Fonts: A 1.5×3 mm /12×24 dots) / B 1.1×2.1 mm (9×17 dots)
• Sensors: paper end, open cover, paper jam, blade lock
• Logo printing (BMP)
• Can be wall-mounted
• Includes
• Quick installation guide
• Power adapter
• 1 roll of thermal paper
• 1 paper roll guide
• CD (drivers and program)
• USB cable
• Download Driver
• Download Android APP
