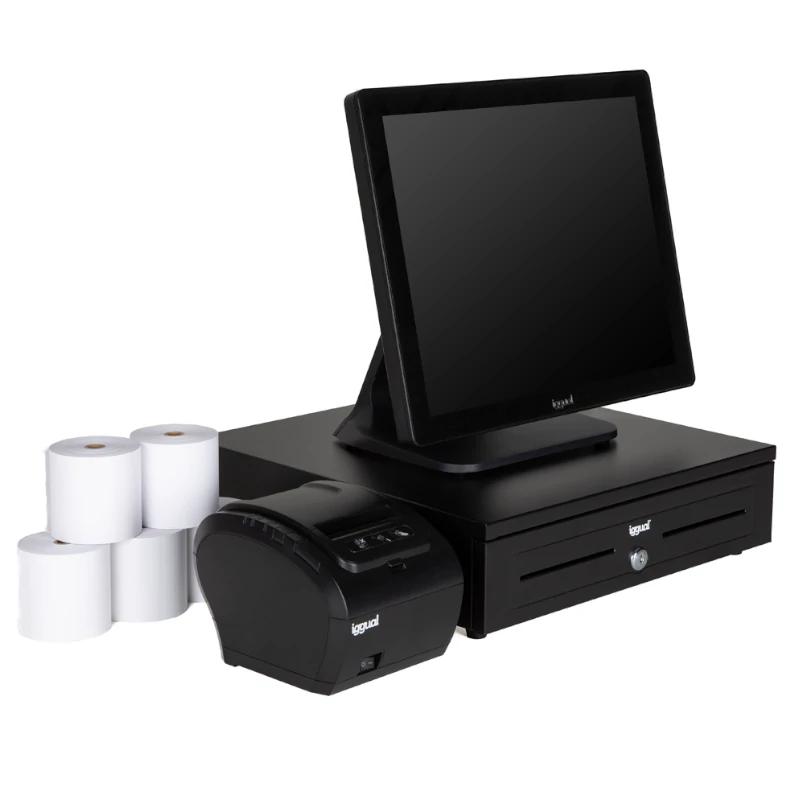

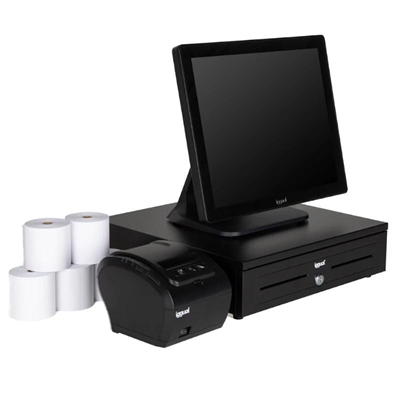

iggual Complete Pack TPV 17 AIO TP8002 IRON-HD

The full TPV Pack 17 AIO TP8002 Iron-HD of Ingual is the perfect solution for your business, combining modern functionality and design in a single device. This point of sale has a 17 -inch touch screen, which offers an intuitive and easy to use interface, allowing your employees to manage transactions quickly and efficiently.

Equipped with a powerful processor and adequate RAM, the TPV TP8002 guarantees a fluid performance, even in the busiest days. Your hard drive offers enough space to store all your important data, from inventories to sales reports. In addition, its compact and elegant design adapts perfectly to any commercial environment, either in a retail store, a restaurant or a cafeteria.

This package includes everything you need to start operating immediately: receipt printer, barcode scanner and a payment management system, all optimized to work together. Connectivity is another of its great advantages, with multiple USB ports and connectivity options that facilitate integration with other management devices and software.

The durability of the IGGUAL TPV 17 AIO TP8002 is remarkable, with high quality materials that ensure a long useful life, even under intensive use. In addition, its efficient cooling system prevents overheating, maintaining the device in optimal conditions.

The full TPV Pack 17 AIO TP8002 Iron-HD of Ingual is undoubtedly an intelligent investment for any business that seeks to modernize its sales system and improve customer experience.

Technical Specifications

• Brand iggual
• Model IGG319628 (AIO 17.88.N100)
• Operating System – Windows 11 Pro (included)
• Display – Type: LCD LED (TN panel)
• Size: 17″
• Format: 4:3
• Touch: capacitive (10 points)
• Resolution: 1280 x 1024 px
• Brightness: 300 cd/m2
• Processor – Processor: Intel Processor N100 (12th generation)
• Turbo frequency (max): 3.40 GHz
• Cache: 6 MB
• Memory – RAM: 8 GB DDR4 (3200 MHz)
• SSD hard drive: 256 GB mSATA
• Connectivity – 6 x USB 2.0
• 2 x USB 3.0
• WiFi
• 1 x RS232
• 1 x Ethernet (1000 Mbps)
• 1 x VGA
• 1 x HDMI
• 2 x 3.5 mm mini-jack
• Other features – Certifications: CE + RoHS
• VESA: 75 x 75 mm
• Dimensions and weight
• 390 x 323 (panel + frame) x 346 (maximum height) mm
• Net weight: 7.5 kg
• Box size: 460 x 260 x 435 mm
• Gross weight: 8 kg
• +
• Brand iggual
• Model IGG318942
• Features – Galvanized steel chassis and case “heavy duty”
• Designed to withstand heavy workloads
• Front access slots
• High-strength ball bearing rollers
• Three-position lock
• Manual or automatic opening
• Compartments: 5 bills and 8 coins (adjustable and removable)
• RJ11 interface (12V power)
• Includes 1-meter RJ11 cable
• Dimensions: 415 x 410 x 100 mm
• Weight: 7.2 kg
• Color: black
• +
• Brand iggual
• Model TP8002
• (IGG316641)
• Type Thermal Ticket Printer
• Connectivity – USB
• RS-232 (serial)
• Ethernet (RJ45)
• RJ11 (cash drawer control)
• Features – Print speed: 260 mm/s
• Paper size
• Width 80 mm
• Maximum diameter: 83 mm
• Thickness: 0.06 – 0.08 mm
• Print points: 640 points per line
• Resolution: 203 x 203 dpi
• Automatic paper cutting, total or partial
• Barcode formats:
• 1D: EAN-13, EAN-8, UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), ITF, CODABAR, CODE39, CODE93, CODE128
• 2D: QR
• Storage
• Input buffer: 256 kbytes
• NV Flash: 256 kbytes
• Power
• Input: AC 110V – 220V 50/60Hz
• Output: DC 24V / 2.5A
• Cash drawer control: DC 12 – 24V / 1A
• General
• Dimensions: 146 x 191 x 129 mm
• Weight: 2.1 kg
• Color: black
• OS & Software
• Emulation: ESC / POS and common printer
• Supports: Windows 10/8/7/Vista/XP/2000/CE/OPOS/JPOS
• SDK: Android, IOS
• Compatible with major TPV programs: Orca, No Problem, Sage TPV…
• Others
• Fonts: A (12×24) / B (9×17) / Chinese / Japanese / user-defined
• Sensors: paper end, cover open, paper jam, blade blockage
• Logo printing (BMP)
• Can be wall-mounted
• Includes
• Quick installation guide
• Power adapter
• 1 thermal paper roll
• 1 paper roll guide
• CD (drivers and program)
• USB cable
• Technical sheet – Download: TP8002
• +
• Brand iggual
• Model IGG317655
• Features – Pack of 5 units
• Thermal paper roll 80 x 80 x 13 mm
• Paper width: 80 mm
• Outer roll diameter: 80 mm
• Inner hole diameter: 13 mm
• Grammage: 65 g / m2
• BPA-free (Bisphenol A)
• RoHS certified
