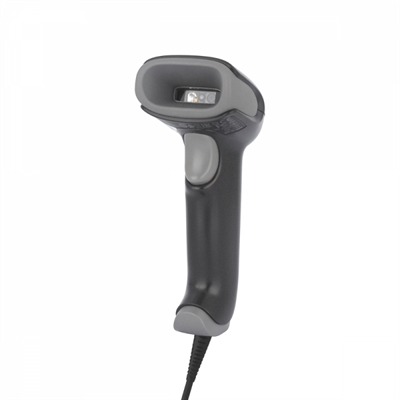

Honeywell Voyager 1470G 2D Barcode Scanner

The Honeywell Voyager 1470G 2D Barcode Scanner is an essential tool for any business that requires fast and accurate barcode reading. Designed to deliver superior performance, this scanner is ideal for retail, storage, and logistics environments.

Technical Specifications

• Honeywell Brand
• Model 1470G2D-2USB-1-R
• Scanning Performance – Scan Pattern: Area Image (1040 x 720 pixel matrix)
• Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC with optimal focus
• Scan Angle: Horizontal: 39.2° nominal; Vertical: 27.4° nominal
• Pitch, Roll, Yaw: ± 180°, ± 65°, ± 70° Decoding Capabilities: reads standard 1D, PDF, 2D and DotCode symbologies
• Electro-Mechanical Features
• Dimensions (D x W x H): 62 x 169 x 82 mm
• Weight: 130 g
• Input Voltage: 4.0V DC to 5.5V DC
• Operating Power: 2 W (400 mA @ 5V DC)
• Standby Power: 0.45 W (90 mA @ 5V DC)
• Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)
• Environmental
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -40 °C to 60 °C
• Humidity: 0% to 95% relative humidity, non-condensing
• Drop Specifications: 1,000 drops of 0.5 m (1.6 feet) (impacts)
• Drop: designed to withstand 30 drops of 1.8 m (6 feet) onto concrete
• Environmental Sealing: IP40 light levels: 0 to 100,000 lux
• Revision Date 12-02-2020 by MSB
